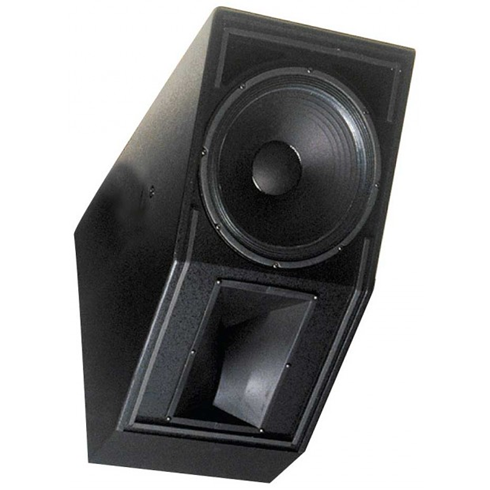

Electro-Voice EVI 12
Electro-Voice EVI 12

Kod proizvoda:1473

Electro-Voice EVI 12

Pasivna dvosistemska zvučna kutija 12" za ravnomerno pokrivanje prostora

Pozovite za cenu

Dostupnost proizvoda: Ima na lageru

Specifikacije proizvoda:

  • Serija:
    • EVI
  • Frekventni opseg (-10dB):
    • 50 - 20K Hz
  • Boja:
    • crna
  • Osetljivost:
    • 99 dB
  • Maksimalni SPL:
    • 129 dB
  • Pokrivanje H° x V°:
    • 60°/110° - 70°/90°
  • Kontinuirana snaga :
    • 250 W
  • Vršna (peak) snaga :
    • 1000 W
  • Visokotonac:
    • DH3/2010A 1.25-inch
  • Niskotonac (bas):
    • 12"
  • Impedansa (oma):
    • 8 oma
  • Dimenzije Š x V x D:
    • 356 x 554 x 699 mm
  • Težina:
    • 21,8 kg

Opis proizvoda:

12-inch two-way Variable Intensity loudspeaker



  • Variable Intensity horn for even coverage
  • Two-way, full-range loudspeaker
  • High sensitivity
  • Vented LF enclosure
  • 1.25-inch HF driver with titanium diaphragm
  • PRO™ Driver protection circuit
  • Multi-angled housing
  • Five 3/8-inch hanging points



Chassis Size 304.8 mm (12")
Input Connections Screw Terminal
Frequency Response (-10 dB) 50 - 20,000 Hz
Internal Crossover Yes
Sensitivity 1 W/1 m 99 dB
Max. SPL/1m (calc) 129 dB
Coverage (Nominal -6 dB) H 60/110 ° long throw/short throw
Coverage (Nominal -6 dB) V 70/90 ° long throw/short throw
System Power Handling (Continuous/Program/Peak) 250//1000 Watts
LF Transducer 12-inch
HF Transducer 1.25-inch DH3/2010A compression driver (1-inch exit)
Crossover Frequency 2000 Hz
Nominal Impedance (Passive) 8 Ω
Minimum Impedance 8 Ω
Outdoor No
Height 554 mm (21.81")
Width 356 mm (14.02")
Depth 699 mm (27.52")
Weight Net 21.8 kg (48.06 lbs)
