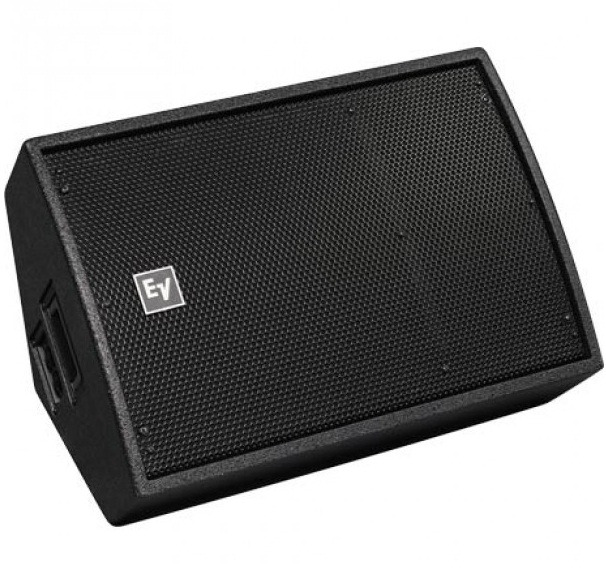

15-inch two-way floor monitor
Our top-of-the-line floor monitors, originally designed as part of the X-Array touring line.
-
Two-way, high-output design
-
Vented LF enclosure
-
Two symmetrical 55º enclosure angles
-
Ultracompact for all-size stages
-
3-inch ND6-16 titanium/neodymium HF compression driver
-
80º x 55º Constant-directivity horn
-
Neutrik Speakon® paralleled pass-through connectors on each end
-
Two integrated handles
-
EVX155 woofer with 4-inch voice coil
|
Axial Sensitivity (SPL, 1 W @ 1 m) |
99/110 dB LF/HF |
|
Chassis Size |
381 mm (15") |
|
Color |
Black |
|
Directivity Index |
11.6 dB (+3.0/-3.6dB) 1,200 - 16,000 Hz |
|
Input Connections |
2 four-pin Speakon |
|
Long-Term Power Handling |
600/75 W |
|
Short-Term Power Handling |
2400/300 W |
|
Frequency Response (-3 dB) |
55 - 18000 Hz |
|
Frequency Response (-10 dB) |
46 - 20000 Hz |
|
Internal Crossover |
No |
|
Recommended High-Pass Frequency |
System controller determined Hz |
|
Sensitivity 1 W/1 m |
99 dB |
|
Max. SPL/1m (calc) |
133/135 dB LF/HF |
|
Coverage (Nominal -6 dB) H |
55 ° Const.-dir. horn |
|
Coverage (Nominal -6 dB) V |
80 ° Const.-dir. horn |
|
Rotatable Horn |
No |
|
LF Transducer |
15-inch (EVX-155) |
|
LF Power Handling |
600 Watts |
|
HF Power Handling |
75 Watts |
|
LF Nominal Impedance |
8 Ω |
|
HF Transducer |
1.4-inch (ND6-16) |
|
HF Nominal Impedance |
16 Ω |
|
Crossover Frequency |
Factory preset Hz |
|
Minimum Impedance |
7.2/14.3 Ω LF/HF |
|
Enclosure Material |
13-ply birch plywood with Futura |
|
Flying |
No |
|
Outdoor |
No |
|
Height |
644 mm (25.35") |
|
Width |
452 mm (17.8") |
|
Depth |
340 mm (13.39") |
|
Weight Net |
28.4 kg (62.61 lbs) |
