Electro-Voice TX 1122
Electro-Voice TX 1122

Kod proizvoda:639

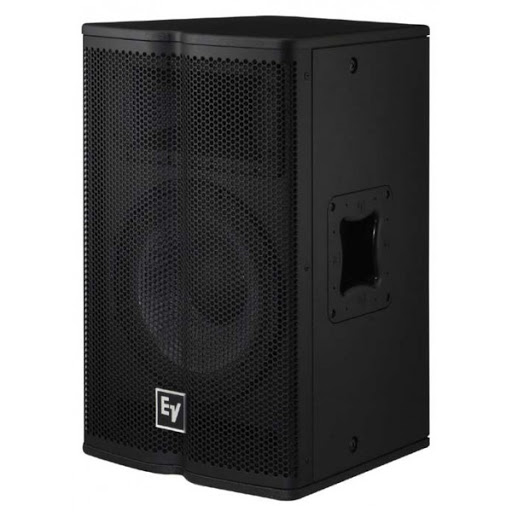

Electro-Voice TX 1122

Pasivna dvosistemska zvucna kutija 12" 500W

117.600,00

Specifikacije proizvoda:

  • Serija:
    • Tour X
  • Frekventni odziv (-3dB):
    • 60 - 20K Hz
  • Frekventni opseg (-10dB):
    • 45 – 20K Hz
  • Boja:
    • crna
  • Osetljivost:
    • 97 dB
  • Maksimalni SPL:
    • 130 dB
  • Pokrivanje H° x V°:
    • 90° x 50°
  • Kontinuirana snaga :
    • 500 W
  • Vršna (peak) snaga :
    • 2000 W
  • Visokotonac:
    • Electro-Voice DH-3
  • Niskotonac (bas):
    • 12"
  • Impedansa (oma):
    • 8 oma
  • Tip konektora:
    • NL4
  • Materijal:
    • Drvo - šperploča
  • Dimenzije Š x V x D:
    • 616 x 382 x 380 mm
  • Težina:
    • 20,2 kg

Opis proizvoda:

Dvosistemska zvucna kutija TX 1122 12" 500 W

The Electro-Voice® TX1122 is designed to be the compact over-achiever of the Tour X family. Employing the same space-saving, 90 degree x 50 degree horn as the FM models and the incredibly low-distortion SMX2120 12-inch woofer, the TX1122 will astound you with performance that blows away ordinary 15-inch, two-way loudspeakers.



The TX1122's unique Backbone grille not only looks great, but also provides greater strength and damage resistance than simple grille block designs. Ergonomically correct handles, angled input panels, integrated pole mount, and six .375-inch threaded suspension inserts make the TX1122 easy to transport and employ in a variety of applications.







Frequency Response: (-3dB) 60 - 20000 Hz

Frequency Response: (-10dB) 45 - 20000 Hz

Sensitivity 1W/1m: 97 dB

System Power Handling (continuous/program/peak):500/1000/2000 Watts

LF Transducer: Electro-Voice 12" SMX 2120

HF Transducer: Electro-Voice DH3

Enclosure Material: Plywood and MDF with EVCOAT

Color: Black

Speaker Type: Fullrange

Weight Net: 20.2 kg
