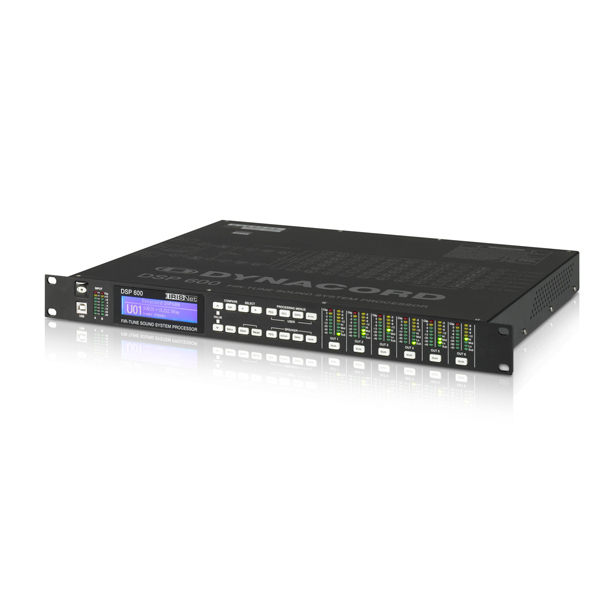

The DSP 600 is a networkable digital sound system processor with 2 analogue, 2 digital AES/EBU inputs and 6 analogue outputs offering audio signal processing of the highest quality with a dual-core DSP-topology, 24-bit linear AD/DA converters and with 48-bit double-precision processing resolution. At > 116 dB, the dynamic range of the DSP 600 is at the upper extreme of what is technically feasible; THD is less than 0,002 %. With IIR filters and high-resolution 512-tap FIR filters, precise loudspeaker protection and a multi-stage delay concept, the DSP 600 sets new standards in the field of digital loudspeaker processing. Over IRIS-Net, any desired number of DSP 600 processors, together with other IRIS-Net capable devices, can be configured and operated swiftly and conveniently. The configuration and control of the DSP 600 is handled either directly at the device or with the help of IRIS-Net via Ethernet and / or USB. Direct-access keys make it possible to edit parameters swiftly at the device. In all, 90 program-storage locations are provided, of which 60 are dedicated to factory-presets and a further 30 available for freely programmable user-presets (compatible with RCM-26 and P 64 speaker-settings) A unique and particularly remarkable feature is the multi-stage delay concept featuring dedicated delays for different applications in complex audio systems.
Mains Voltage: 100 to 240 V AC, 50 to 60 Hz
Power Consumption: 25 W
Analog Audio Inputs: 2 x XLR IN, electronically balanced, 2 x XLR THRU OUT, electronically balanced
Digital Audio Inputs: 1 x XLR AES/EBU IN, 1 x XLR AES/EBU THRU OUT
Digital Audio Format: AES3, 32 kHz to 192 kHz sample rate
Nominal Input Voltage: 1.55 V / +6 dBu
Maximum Input Voltage (with -6dB PAD engaged): 17.3 V / +27 dBu
Input Impedance: 10 kOhm
Common Mode Rejection: -85 dB @ 1 kHz (typical)
A/D Conversion: 24-Bit Sigma-Delta
Analog Audio Outputs: 6 x XLR OUT, electronically balanced
Nominal Output Voltage: 1.55 V / +6 dBu
Maximum Output Voltage: 8.7 V / +21 dBu
Output Impedance: 50 Ohm
D/A Conversion: 24-Bit Sigma-Delta
Frequency Response: 20 Hz to 22 kHz (+/-0.5 dB)
THD+N < 0.002 % (band limited 22 Hz to 22 kHz)
Dynamic Range: 116 dB (A-weighted)
USB: USB Type B on front panel (PC Interface)
Ethernet: 2 x RJ-45 ports, 100 MB, Integrated Switch
Control Port: 1 x 6-pole Euro block, Software Configurable for Preset Recall
Sample Rate: 48 kHz
Data Format: 24-Bit
Internal Processing: 48-Bit Double Precision
Signal Processing: Parametric EQs, 31 band Graphic EQs, Delays, Routing, X-Over, 512 Taps FIR filters, PA limiter, Thermal protection, Level, Polarity, Signal generator
Operating Temperature Range: 0 °C to 40 °C
Dimensions (WxHxD): 483 x 356.1 x 43.6 mm
Weight (Net): 4.8 kg
