Dynacord Vertical Array 312-200 - Aktivan zvučni sistem
Dynacord Vertical Array 312-200 - Aktivan zvučni sistem

Kod proizvoda:1024

Dynacord Vertical Array 312-200 - Aktivan zvučni sistem

Ova "PLUG&PLAY" rešenja zadovoljavaju zahteve velikog broja mobilnih aplikacija i fiksnih instalacija sa visokim nivoom zvučnog pritiska, izvanrednim audio kvalitetom."

446.400,00

Specifikacije proizvoda:

Opis proizvoda:

Ova "PLUG&PLAY" rešenja zadovoljavaju zahteve velikog broja mobilnih aplikacija i fiksnih instalacija sa visokim nivoom zvučnog pritiska, izvanrednim audio kvalitetom.

U cenu nisu uračunati stalci i prateći kablovi

Components:

2 x TS 200; 1 x PowerSub 312

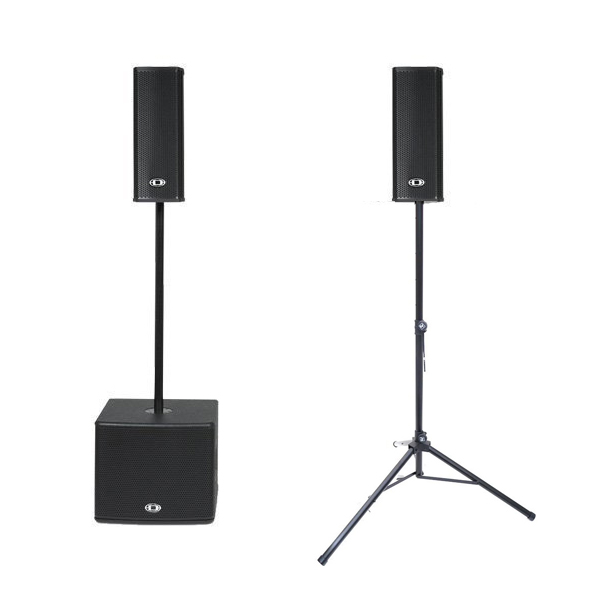

Small, light and extremely efficient—that's the VA312-200 system with the TS 200 and PowerSub 312 in a nutshell. The VA312-200 is a small mobile system offering superlative performance. For solo entertainers, duos, small bands and even DJs, this is the ideal system. You can get it into virtually any motor vehicle and transport it to the venue in only two trips. At the same time, it boasts massive reserves of power and sound of a quality very few systems can match.



System parameters:

Total output of the system: 1400 W RMS

Max SPL in the mid- and HF ranges: 128 dB

Max SPL in the LF range: 123 dB

Frequency range: 44 Hz – 20 kHz

Total weight: 42 kg

Volume: 124 litres

Suitable for audiences of up to 200 people



TS 200

Color: Black (RAL 9005, jet black)

Cabinet: Full-range

Configuration: Passive 2-Way

Nominal impedance: 8 Ω

Rated power RMS: 300 W

Program power: 600 W

Peak power: 1200 W

SPL 1W/1m: 97 dB

Max. SPL at 1 m (calculated with peak power): 128 dB

Frequency range (-10 dB): 90–20000 Hz

Nominal coverage angle: 90° x 40°

X-Over frequency: 2200 Hz

Voice coil tracking protection: Halogen

Component HIGH: Electro-Voice DH-3

Component LOW: 2 x DND 6130-16

Connector: 2 x NEUTRIK speakon NL4, contacts full-range 1+, 1-, contacts wired through 1+, 1-

Product dimensions (Width x Height x Depth): 199 x 513.5 x 239.5 mm

Net weight: 10 kg

Enclosure material: Aluminum

Grille: Steel

Suspension: 8 x M6



PowerSub 312

Color: Black

Cabinet: Powered 3-Channel Subwoofer

Lo Amplifier Power RMS: 800 W / 4 Ohms

Mid-High Amplifier Power RMS: 2 x 250 W / 4 Ohms

SPL 2,83V/1m (1W/8 ohms): 92 dB

Max. SPL 1m (calc. with peak power or measured 10% THD): 121 dB

switchable X-Over frequencies: 70Hz/100Hz/140Hz

Component Sub: DND12S400

Connector model: Speakon 1 x NL4 MPR for Sub 112 Extension

Dimensions (WxHxD) mm: 445 x 380 x 445

Net weight: 22,5 kg

Enclosure material: Birch plywood

Finish: 2-Comp. Paint

Grille: Steel Powder coated

Front: b/w Acoustic Foam

Handles: 2
