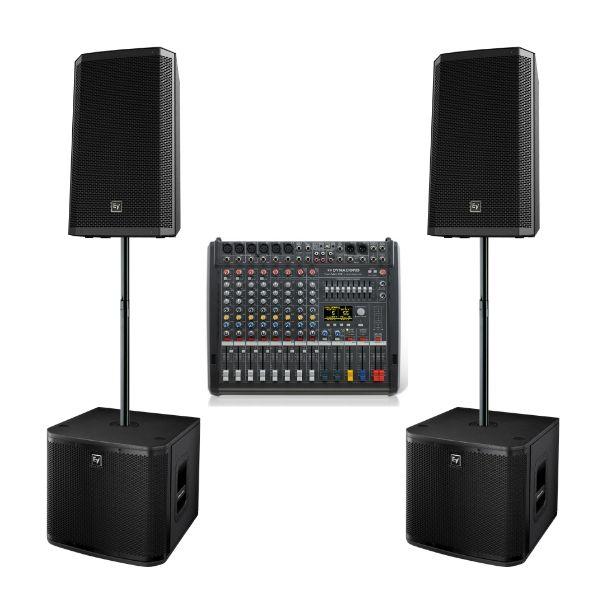

Ovaj sistem se sastoji iz sledećih komponenti:
2 x ZLX 12
2 x Zx1 Sub
PowerMate 600
ZLX 12
Freq. Response: 82 Hz – 18 kHz
Freq. Range: 55 Hz – 20 kHz
Axial Sensitivity: 95 dB
Max. Measured SPL: 125 dB
Coverage H° x V°: 90° x 60°
Recommended HP Freq.: 40 Hz
Power Handling: 250 Watts Continuous, 1000 Watts Peak
LF Transducer: EVS-12K, 300 mm (12 in) Woofer
HF Transducer: DH-1K, 39mm (1.5”) Titanium
Cross-over Frequency: 2.1 kHz
Nominal Impedance: 8 Ω
Minimum Impedance: 7 Ω
Connector Type: Dual NL4
Enclosure material: Polypropylene
Grill: 18 Gauge Steel with Black Powder Coat
Dimensions (H x W x D): 610 mm x 356 mm x 356 mm
Weight Net: 14.9 kg
Zx1 Sub
Freq. Response (-3dB): 53Hz – 125 Hz
Freq. Range (-10dB): 42 Hz – 200Hz
Sensitivity: 94 dB
Max. Measured SPL: 127 dB
Coverage: Omnidirectional
Power Handling: 400W
LF Transducer: EVS-12S
Nominal Impedance: 8 Ω
Connectors: NL4 (2) Type
Dimensions: 400mm x 444.5mm x 457.2 mm
Net Weight: 19.8 Kg
PowerMate 600
Channels (Mono + Stereo): 4 + 4
Auxiliarys (MON, FX, AUX): 1 Pre, 1 Post, 1 Pre/Post switchable
Maximum Midband Output Power, 1 kHz, THD = 1%, Dual Channel into 4 Ohms: 2 x 1000 W
Power Requirements (SMPS with auto range mains input): 100 V to 240 V AC, 50 Hz to 60 Hz
Power Consumption, at 1/8 maximum output power, 4 Ohms: 450 W
Dimensions with lid (W x H x D), mm: 438.8 x 161.7 x 362.5
Net Weight, without lid: 9.0 kg
* U cenu sistema nisu uračunati stalci i kablovi.
