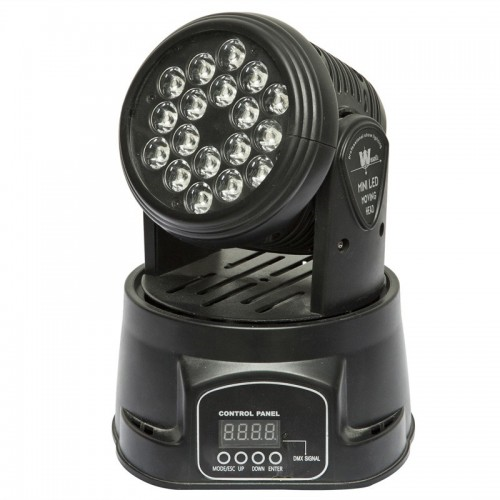

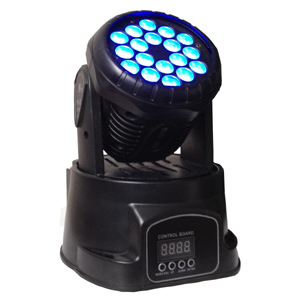

The small and powerful LED moving head with 18 x 3 Watt RGB LEDs. It is kind of compact and lightweight led moving head wash for DJ, party.,ect. The moving head can be controlled via DMX with 5 channels (basic) and 12 channels (Advanced Mode). He has a pan / tilt motion of 8 bit or 16 bit (Advanced Mode).,
Features:
Voltage: AC110V-240V, 50/60hz
LED Source:18 x 3W LED, (6 Red, 6 Green, 6 Blue)
Power consumption: 80W maximum
Effect: RGB color mixing, variable electronic strobe, Variable electronic dimmer(0-100%); Vector speed channel for pan/tilt,RGB color mixing and color macros; Built-in movement macros via master/slave or DMX; User-selectable basic or advanced operating modes;
Movement: Pan 540 ° / 180 ° Tilt, 8 or 16 bit movement resolution,
Model: Basic and Advanced mode, auto mode, Master / Slave mode, Sound Control mode, DMX512 mode,
Channel: 5 channels/12 Channel
Dimensions:280X220X270mm;
Carton size: 240x240x300mm
N.W:3.0kg; G.W:3.8kg
DMX Channel list:
CH1: Pan
CH2: Tilt
CH3: Pan precise
CH4: Tilt precise
CH5: Pan/Tilt Speed
CH6: Strobe Speed
CH7: Red
CH8: Green
CH9: Blue
CH10: Marco function
CH12: Built-in Program
