DAP Splash 10A
DAP Splash 10A
DAP Splash 10A
DAP Splash 10A

Kod proizvoda:1153

DAP Splash 10A

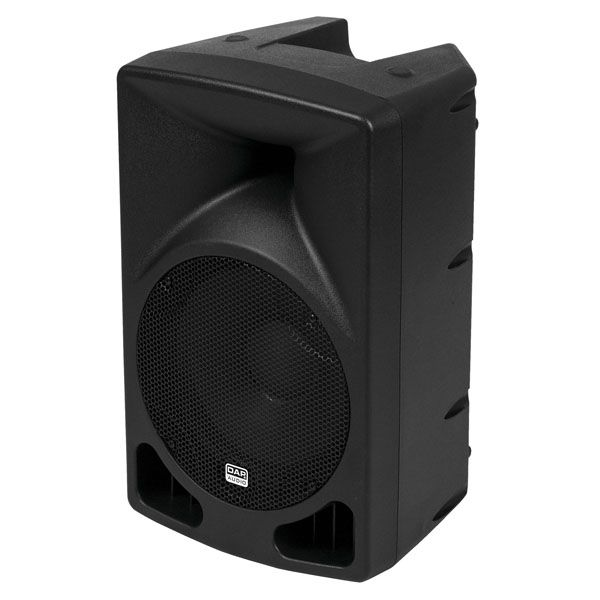

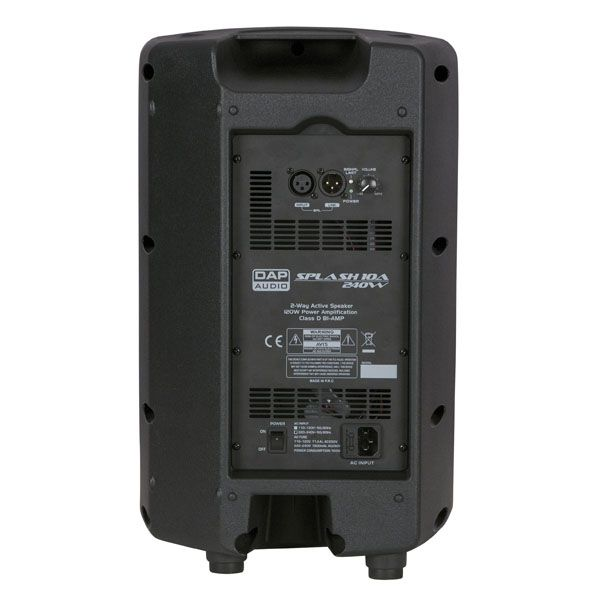

Aktivna dvosistemska zvučna kutija, D3589

39.000,00

Dostupnost proizvoda: Ima na lageru

Specifikacije proizvoda:

Opis proizvoda:

Mono Inputs: 1
Mono Input Connector: 3pole XLR
Low Driver Power: 90 W
High Driver Power: 30 W
Amplifier RMS Output Power: 120 W
Amplifier Peak Output Power: 240 W
Main Outputs: 1
Main Output Connector: 3pole XLR
THD Distortion Level: < 0.5%
Signal - Noise Ratio: > 80dB
Amp Technology: Class D /Class H
Dampings Factor: 200 :1
Speaker System: 2-Way
Speaker Sensitivity (1w/1m): 95 dB
Max. SPL on 1m    116 dB
Frequency Respons Minimum: 65 Hz
Frequency Respons Maximum: 20.000 Hz
Frequency Respons (-10dB) Minimum: 60 Hz
Frequency Respons (-10dB) Maximum: 20.000 Hz
Crossover Frequency Low: 2.800 Hz
Crossover Frequency High: 2.800 Hz
Woofer Diameter: 10
Woofer Voice Coil: 1.5
Woofer Magnet Type: Ferrite
Compression Driver Diameter: 1
Compression Driver Voice Coil: 1
Compression Driver Magnet Type:    Ferrite
Dispersion Angle Horizontal: 90 °
Dispersion Angle Vertical: 45 °
Power Supply: 100-240VAC 50-60Hz
Power Consumption: 150 W
Fuse: 0.8 A
Power Connector in: IEC C13 male
Length (mm): 265 mm
Height (mm): 460 mm
Width (mm): 285 mm
Weight: 6.92 kg
IP Rating: IP20(indoor use only)
Material: Plastic
Housing: Plastic
Colour:    Black
Amplifier Cooling: Convection
Electronic Protection: Clip limiter (fixed) / DC voltage / Softstart / Thermal
LED Indicators: Clip / Power / Signal
Polemount: 35 mm
Rotatable Horn: No
Useable as Monitor/Wedge: Yes
Speaker Grill: Steel
Speaker Handles: Top
Castors: N/A
Reference Standard: CE / EMC / LVD / FCC / ETL / RoHS
Included Cables: IEC cable
Included Accessories: User Manual

Prikazi više
