Apsolutni pobednik medju aktivnim zvučnim kutijama. Sa ugradjenim DSP-om i FIR Filtrima ovaj sistem pruza čist, jak i precizan zvuk sto se i očekuje od Electro-Voice HI-END sistema!

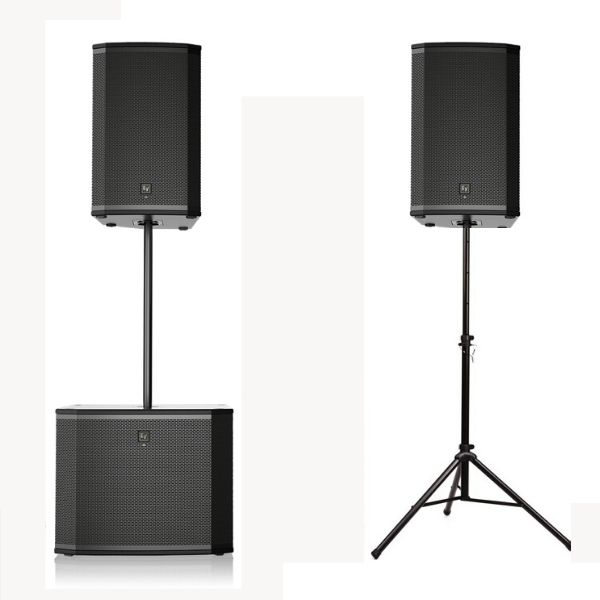

Sistem se sastoji od dva satelita Electro-Voice ETX 12P i jednog subwoofera ETX 18SP!
U cenu nisu uključeni stalci za zvučne kutije.
ETX 12P
|
Frequency Range |
43 Hz – 20 kHz |
|
Maximum SPL |
135 peak dB |
|
Power Consumption |
100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A |
|
Power Rating |
2000 W |
|
Frequency Response |
55 Hz – 20 kHz |
|
Coverage (Nominal -6 dB) H |
90 ° |
|
Coverage (Nominal -6 dB) V |
60 ° |
|
LF Transducer |
SMX2120 300 mm (12 in) |
|
HF Transducer |
DH3-B 1.25-in titanium compression driver |
|
Crossover Frequency |
1600 Hz |
|
Connector Type |
(2) XLR/TRS combo jack and (1) XLR link output |
|
Enclosure Material |
18-mm, 13-ply birch plywood with EVCoat |
|
Grill |
16AWG steel with powdercoat |
|
Suspension |
(8) M10 suspension points |
|
Height |
613 mm (24.13") |
|
Width |
381 mm (15") |
|
Depth |
400 mm (15.75") |
|
Weight Net |
23.6 kg (52.03 lbs) |
|
Shipping Weight |
26.8 kg (59.08 lbs) |
ETX 18SP
|
Frequency Range |
28 Hz – 180 Hz |
|
Low Pass Frequency |
Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz |
|
Maximum SPL |
135 dB peak dB |
|
Power Consumption |
100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A |
|
Power Rating |
1800 W |
|
Frequency Response |
33 Hz – 150 Hz |
|
LF Transducer |
DVX3180A 457 mm (18 in) |
|
Connector Type |
(2) XLR/TRS Combo Jack and (2) XLR link Output |
|
Height |
550 mm (21.65") |
|
Width |
675 mm (26.57") |
|
Depth |
910 mm (35.83") |
|
Weight Net |
51.8 kg (114.2 lbs) |
|
Shipping Weight |
58.9 kg (129.85 lbs) |
