Electro-Voice EKX 15SP
Electro-Voice EKX 15SP
Electro-Voice EKX 15SP
Electro-Voice EKX 15SP
Electro-Voice EKX 15SP
Electro-Voice EKX 15SP

Kod proizvoda:1448

Electro-Voice EKX 15SP

Aktivni Subwoofer 15" pojačalo klase D 1300W QuickSmartDSP

151.800,00 129.030,00

Specifikacije proizvoda:

  • Serija:
    • EKX
  • Frekventni odziv (-3dB):
    • 45 - 150 Hz
  • Frekventni opseg (-10dB):
    • 40 - 180 Hz
  • Maksimalni SPL:
    • 133 dB
  • Dimenzije Š x V x D:
    • 530 x 455 x 551 mm
  • Težina:
    • 26,2 kg

Opis proizvoda:

  • QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
  • Cardioid Control Technology allows output to be steered towards the audience with up to 35 dB reduction on stage when multiple subs are deployed.
  • High-efficiency 1300 W Class D power amplifier delivers up to 133 dB peak SPL on the EKX-15SP utilizing high-sensitivity transducers designed and engineered by EV.
  • Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.

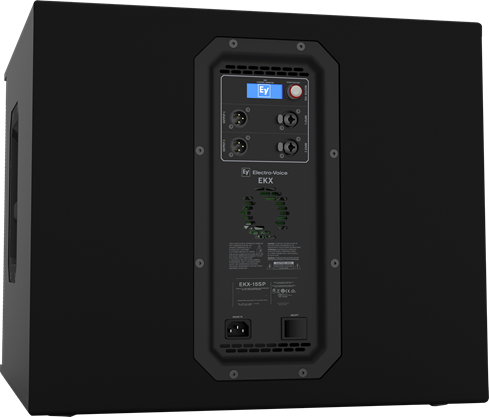

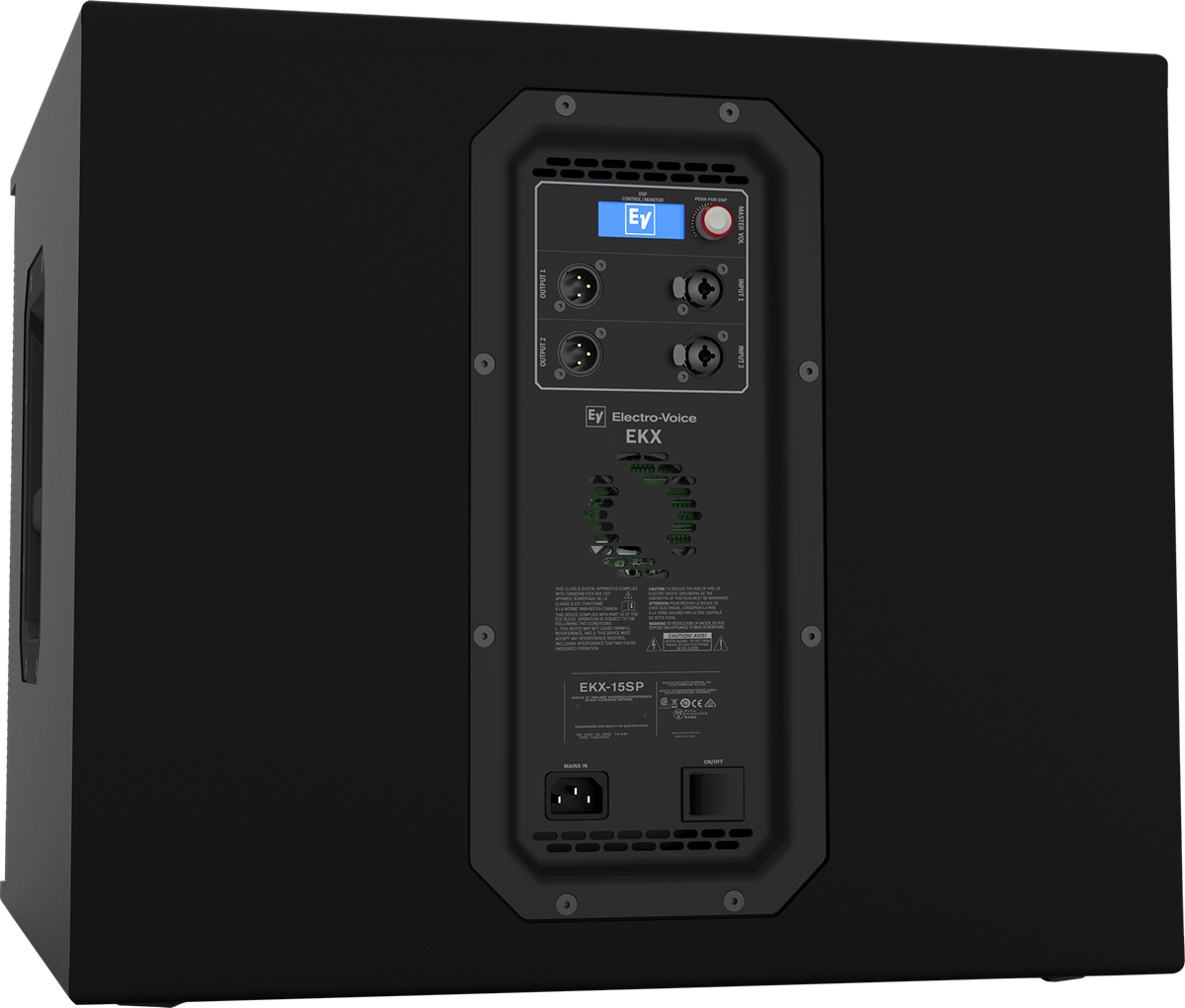

  • Two XLR outputs for easy system expansion to additional loudspeakers or subwoofers. Large slot ports for low distortion and excellent bass extension. Metal grille reinforcement bar (two on the 18SP). M20 threaded pole mount plate.



Connector Type (2) XLR/TRS combo jacks and (2) XLR link outputs
Enclosure Material 15 mm, plywood with EVCoat
Frequency Response (-10 dB) 40 Hz - 180 Hz Hz Half Space Measurement
Frequency Response (-3 dB) 45 Hz - 150 Hz Hz Half Space Measurement
Grill 18 AWG steel with powdercoat
LF Transducer EVS-15C 381 mm (15 in)
Low Pass Frequency Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz
Maximum SPL 133 dB peak dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output
Power Consumption 1.8 A Current rating is 1/8 power
Power Rating 1300 W
Shipping Weight 32.6 kg (71.87 lbs)
Height 11RU 455 mm (17.91")
Width 530 mm (20.87")
Depth 551 mm (21.69")
Weight Net 26.2 kg (57.76 lbs)



Prikazi više
