Kod proizvoda:1486

Dynacord FX 12-PRO

Dynacord FX12 PRO

Pozovite za cenu

Specifikacije proizvoda:

  • Frekventni opseg (-10dB):
    • 120–19000 Hz
  • Boja:
    • crna
  • Osetljivost:
    • 106 dB
  • Maksimalni SPL:
    • 137 dB
  • Pokrivanje H° x V°:
    • H 80° ✕ V 40°
  • Kontinuirana snaga :
    • 350W
  • Vršna (peak) snaga :
    • 1400W
  • Visokotonac:
    • ND6-8/CDH 8040-14
  • Niskotonac (bas):
    • 12"
  • Impedansa (oma):
    • 8 oma
  • Tip konektora:
    • NL4
  • Materijal:
    • Drvo - šperploča
  • Dimenzije Š x V x D:
    • 594 ✕ 601 ✕ 808 mm
  • Težina:
    • 49.5 kg

Opis proizvoda:

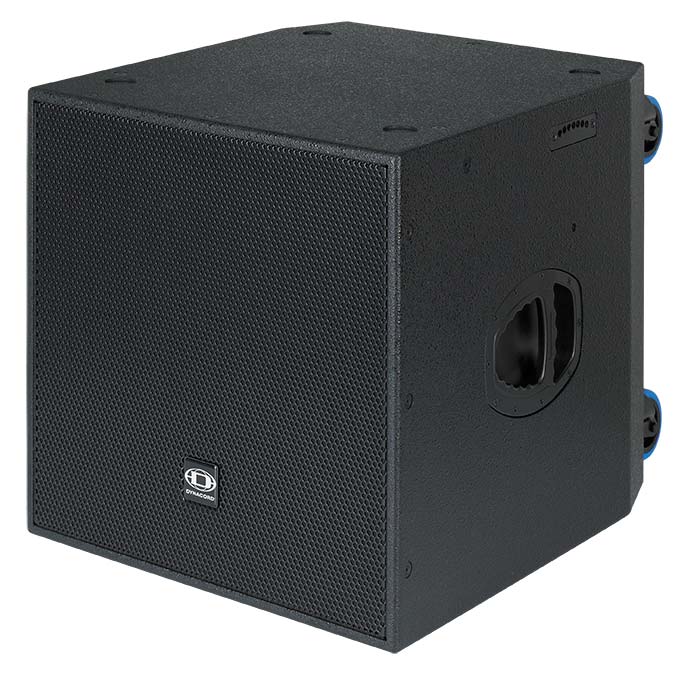

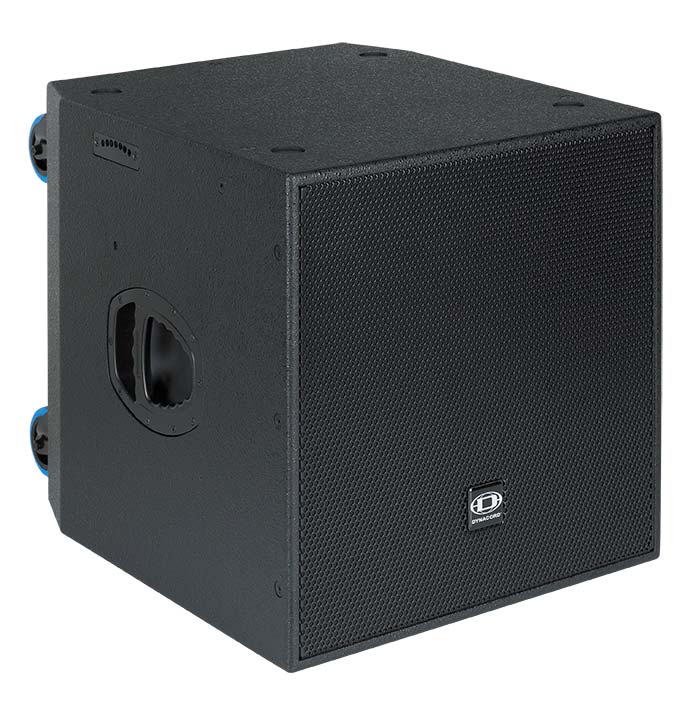

The Dynacord FX12-PRO is a medium longthrow mid/high- frequency cabinet in coaxial design.
It can be used also without subwoofer cabinets in high-quality sound reinforcement system for speech for medium-throw distances. The recommended active x-over frequency is 140 Hz, 18 dB/oct. Butterworth. In the lo-mid range an ND 12 A Electro-Voice loudspeaker chassis works into a conical horn. The 80x40 Constant Directivity horn, driven by an Electro-Voice 1.4" ND 6 neodymium driver delivers the frequency range above 1kHz. The FX12-PRO is equipped with a passive x-over (1kHz, 18 dB/oct). Every transducer is protected against thermal overload with an electronic circuit called voice coil tracking protection. This circuit senses the terminal voltages of the transducers and simulates the thermal behaviour of the tranducers’ voice coils. In case of a potential thermal overload the power applied to the speakers is reduced to a safe level. Power amps up to 1200W 8 Ohms can be used in order to have maximum dynamic range without the danger of thermal overload in non-controlled situations. The voice coil tracking protection exhibits ‘soft’ switching characteristics, so no annoying clicks or pops are audible. The circuitry automatically resets after the voice coil temperature has reached a safe value.



Description: Passive mid-high speaker, coaxial conical horn



Nominal impedance: 8 Ω



Rated power RMS: 350 W



Program power: 700 W



SPL 1 W/1 m: 106 dB



Maximum SPL (1 meter): 134 dB



Frequency range (-10 dB), measured with Xa 4000: 120–19000 Hz



Coverage angle nominal, 1 kHz, -6 dB (measured with Xa 4000): H 80° x V 40°



Crossover frequency: 1000 Hz



Recommended active crossover frequency to subwoofer: 140 Hz, 18 dB/oct. Butterworth



Voice coil tracking protection: Separate circuits for lo-mid and high



Transducer High frequency: ND 6-8/CDH 8040-14



Transducer Low-mid frequency: ND 12A

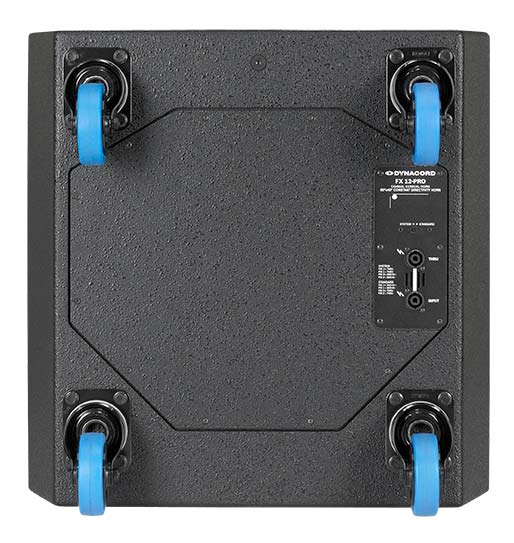

Audio sockets Model: 2 x NEUTRIK speakON NL4MPR



Audio sockets Contacts “normal”: 1+/1-



Audio sockets Contacts "system": 2+/2-



Enclosure material: Birch plywood, 15 mm



Enclosure finish: Heavy-duty structured lacquer



Color: Black (RAL 9005, jet black)



Grille: Powder coated steel with acoustic foam



Handles: 2



Webbing strap point: 2



Castors: 4



Product dimensions (WxHxD): 600 x 610 x 814 mm



Net weight: 49.5 kg
