DAP DRX 8

• Frekventni opseg (-10dB):
  • 68 – 20K Hz
• Boja:
  • crna
• Osetljivost:
  • 90 dB
• Maksimalni SPL:
  • 113 dB
• Pokrivanje H° x V°:
  • 50° x 50°
• Kontinuirana snaga :
  • 100 W
• Vršna (peak) snaga :
  • 200 W
• Visokotonac:
  • 1 inch
• Niskotonac (bas):
  • 8"
• Impedansa (oma):
  • 8 oma
• Tip konektora:
  • NL4
• Materijal:
  • Drvo - šperploča
• Dimenzije Š x V x D:
  • 360 x 542 x 352 mm
• Težina:
  • 9 kg

• 200 Watt
• Lightweight: 9 kg
• Reinforced cabinet
• High driver protection

Specifications

System Type: 2-Way Vented Passive Speaker cabinet
Continuous Power: 100 Watts
Peak Power: 200 Watts
Horn Coverage: 50°H x 50°V
Speaker Sensitivity (1W.1m): 90 dB SPL ±3dB
Max. SPL: 113dB at 1m
Frequency Response: 68Hz~20kHz (- 6dB)
Impedance: 8Ω
Crossover Frequency: 3.2KHz
Protection: High Frequency Protection
Woofer: 8" / 1.5" Voice Coil
Driver: 1" / 1" Voice Coil
Construction: 15mm plywood, glued and reinforced
Paint: black, scratch resistant
Pole-mount: ABS 35mm pole-mount

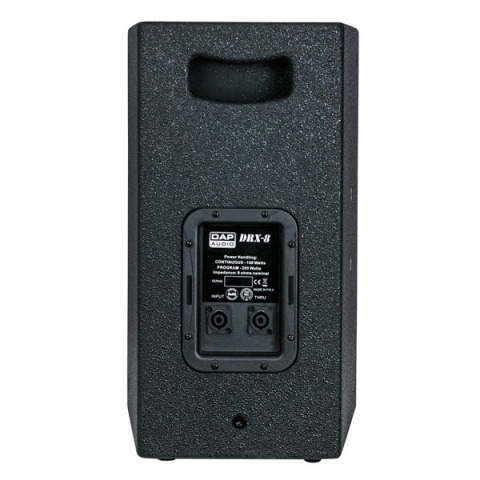

Connectors: 2 x SPK4
Dimensions (HxWxD): 542 x 360 x 352 mm
Weight: 9 kg
