Kod proizvoda:1607

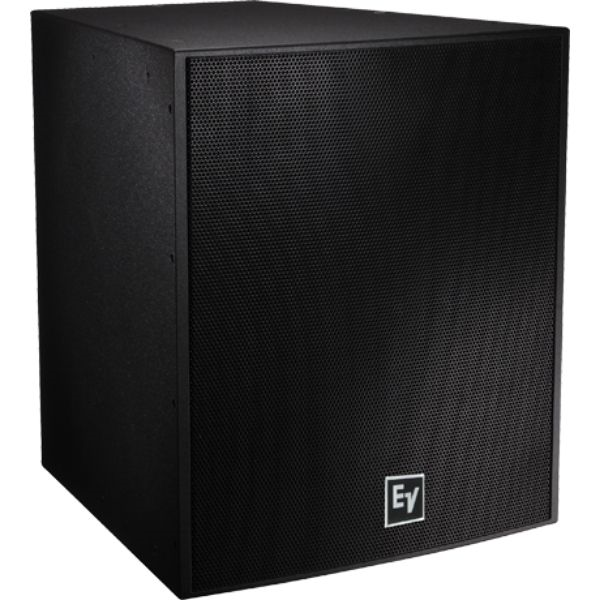

Electro-Voice EVH 1152 D / FGB

Pasivna dvosistemska zvučna kutija 15" 500W opremljena sa - SMX2151 15-inch woofer i DH7N 3-inch visokotonac

Pozovite za cenu

Specifikacije proizvoda:

  • Serija:
    • EVH
  • Frekventni odziv (-3dB):
    • 60 - 17K Hz
  • Frekventni opseg (-10dB):
    • 50 - 20K Hz
  • Boja:
    • crna
  • Osetljivost:
    • 105 dB
  • Maksimalni SPL:
    • 138 dB
  • Pokrivanje H° x V°:
    • rotabilna
  • Kontinuirana snaga :
    • 500 W
  • Vršna (peak) snaga :
    • 2000 W
  • Visokotonac:
    • DH7N-3 inch
  • Niskotonac (bas):
    • 15"
  • Impedansa (oma):
    • 8 oma
  • Materijal:
    • Drvo - šperploča
  • Dimenzije Š x V x D:
    • 768,6 x 768,6 x 680,1
  • Težina:
    • 66,1 kg

Opis proizvoda:

Available Coverage Patterns (Nominal -6 dB) HxV 40x30, 60x40, 60x60, 90x40, 90x60, 90x90 °
Environmental Specs Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55
Input Connections Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover
Internal Passive Crossover Frequency 1300 Hz
Frequency Response (-3 dB) 60 - 17000 Hz
Frequency Response (-10 dB) 50 - 20000 Hz
Recommended High-Pass Frequency 60 Hz
Sensitivity 1 W/1 m 106 (EVH-1152S/43) 105 (EVH-1152S/64, EVH-1152S/66, EVH-1152S/94, EVH-1152S/96), 104 (EVH-1152S/99) dB
Max. SPL/1m (calc) 139 (EVH-1152S/43) 138 (EVH-1152S/64, EVH-1152S/66, EVH-1152S/94, EVH-1152S/96), 137 (EVH-1152S/99) dB
System Power Handling (Continuous/Program/Peak) 500, 1000, 2000 Watts
LF Transducer SMX2151 15-inch (381 mm) driver
HF Transducer DH7N 3-inch (76 mm) diaphragm compression driver
Nominal Impedance (Passive) 8 Ω
Minimum Impedance 6 Ω
Enclosure Material 13-ply weather-resistant birch
Grill Standard versions: 16-ga Galvanneal, Powdercoat, with screen behind PI and FG versions: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind
Suspension (28) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included)
Height 768.6 mm (30.26")
Width 768.6 mm (30.26")
Depth 680.1 mm (26.78")
Weight Net 66.1 kg (145.73 lbs)



Prikazi više
