Servo-balanced XLR Inputs & Outputs
• Simple and effective design
• Output Mute switches
• Linkwitz-Riley 24dB Octave filters

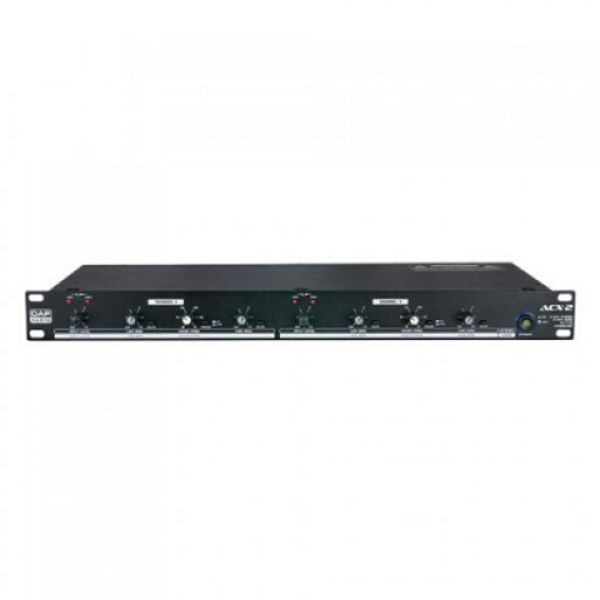

The ACX-2 is a stereo 2-way ore mono 3-way active crossover. The standard 19" rugged rack mountable housing and high quality finish, good selection of high end components and great sound characteristics results in a road proof active crossover.

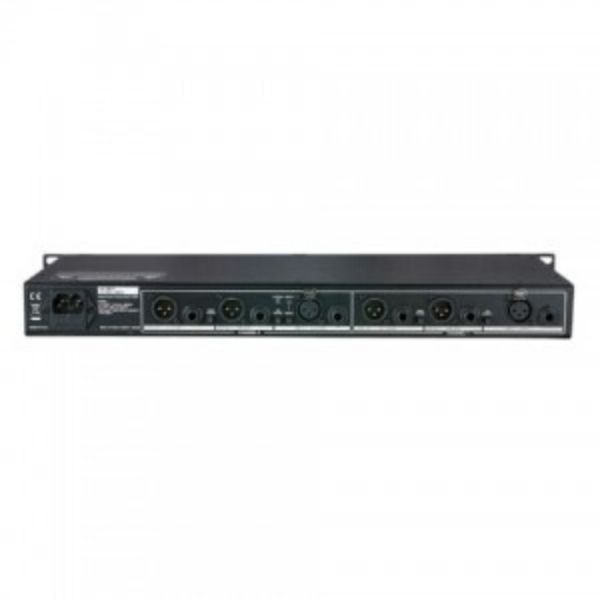

Input Connectors: XLR
Input impedance: 20 KOhm balanced
Output connectors: XLR
Output impedance: 300 Ohm balanced
S/N Rate (A weight): >95 dB
Freq. response: 3 Hz - 40 kHz (+/-0.3 dB)
THD: < 0.004% typ. @ +4 dBu, 1KHz
Crossover freq. range: 80 Hz - 10 kHz
Phase correct range: 0°-180°
Dynamic range: 115 dB
Filter type: Linkwitz-Riley, 24dB Octave
Controls: input levels, output levels, crossover frequency, mute switch
Indicators: input clip LED
Power: 230V AC, 50Hz
Dimensions: 483 x 135 x 45 mm (LxWxH)
Weight: 2,5 kg
