Shure GLXD 14E Z2

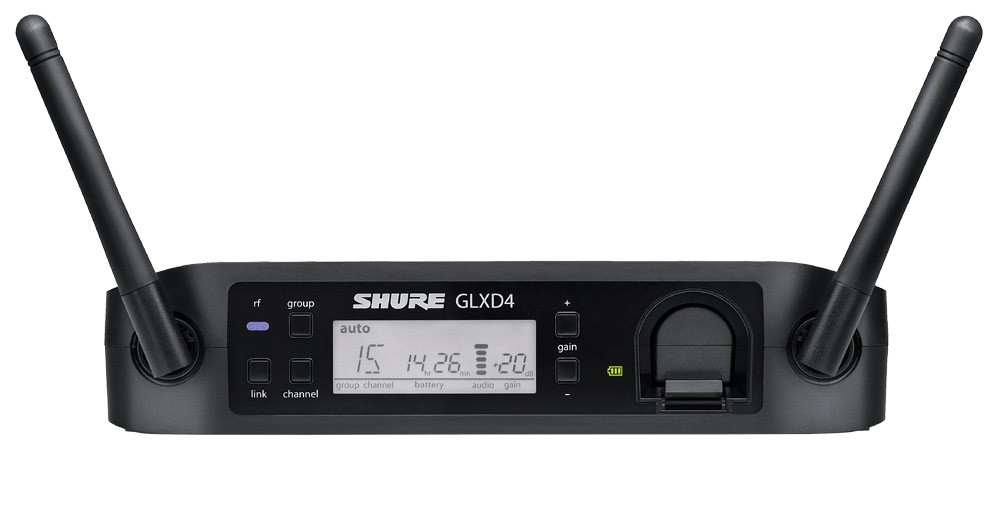

GLXD4 Receiver:

• GLXD4 single channel receiver
• Hi-res LCD screen status display
• Real-time battery run-time displayed in hours and minutes (accurate within +/- 15 minutes)
• Remote adjustable transmitter gain control
• Integrated battery charge port for proprietary Shure lithium-ion transmitter batteries, two-color charge indicator LED
• Green: Charged
• Flashing Green: 90% charged
• Red: Charging
• XLR and 1/4" output connectors
• Lightweight, durable construction

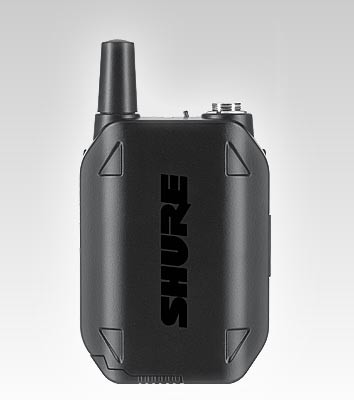

GLXD1 Bodypack Transmitter:

• Automatically links with GLX-D wireless receivers for seamless frequency changing
• Up to 16 hours of continuous, rechargeable use with Shure proprietary lithium-ion rechargeable batteries
• Up to 200 feet (60m) transmission radius (line of sight)
• Sophisticated design with rugged metal construction
• Tactile on/off switch
• Locking TQG connection for use with Shure lavalier, headset, earset and instrument microphones and guitar cables
• Reversible belt clip

Power Management

• Custom Shure rechargeable lithium-ion batteries
• Up to 16 hours of continuous, rechargeable use
• 3 hour charge = up to 16 hours use
• 1 hour charge = up to 6 hours use
• 30 minute charge = up to 3 hours use
• 15 minute charge = up to 1.5 hours use
• Accurate battery metering in hours / minutes (+/- 15 minutes) displayed on LED screen (GLXD4 only)
• Up to 13,000 hours of regular use per individual custom lithium-ion battery
• Compared against up to 2,000 alkaline batteries
• Rechargeability options
• Charge battery alone
• GLXD4 integrated charge port
• SB902 GLX-D Lithium-ion battery (available separately)
• Charge a spare battery while system is in use
• SBC902 USB battery dock charger (available separately)
• Charge battery in-transmitter
• USB charge cable (included)
• SBC-USB USB wall charger (available separately)
• SBC-CAR USB car charger (available separately)

Specifications:

• Operating Range: 200 ft (60 m) line of sight (actual range depends on RF signal absorption, reflection and interference)
• Frequency Band: ISM 2400 – 2483.5 MHz
• Audio Range: 20 – 20,000 Hz (dependent on microphone type)
• Transmitter RF Output Power: 10 mW E.I.R.P. maximum (varies by region)
• Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced
• Maximum Output Level: O dBV (XLR/line), +8.5 dBV (1/4")
• Battery Life: Up to 16 hours
• Dynamic Range: 120 dB A-weighted
• System Distortion: 0.2% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
• Operating Temperature Range: -18°C (0°F) to +57°C (135°F) Note: Battery characteristics may limit this range.
• Power Requirements: GLXD1: 3.7 V custom rechargeable lithium-ion battery
• GLXD4: 14–18 V DC at 550 mA, supplied by external power supply
