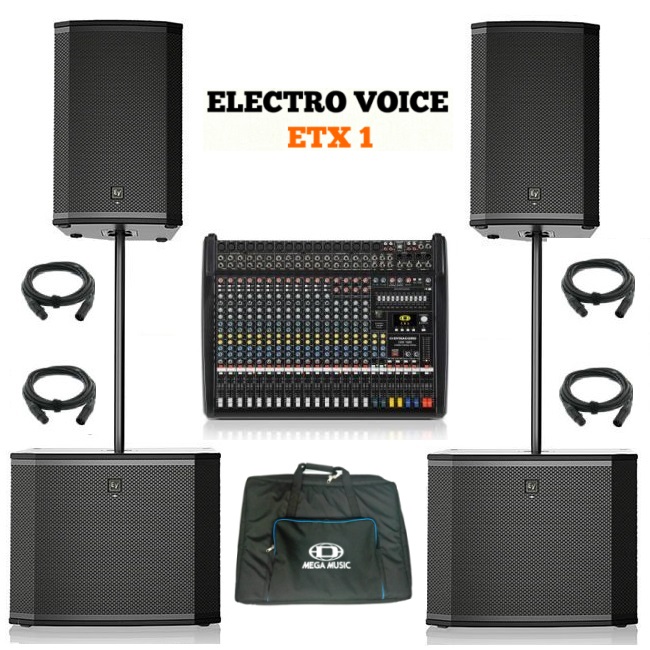

Electro Voice ETX 1 Aktivan Zvučni Sistem se sastoji od:
Mikseta Dynacord CMS 1600-3
2x Electro Voice ETX 15P Sateliti
2x Electro Voice ETX 18 SP SubWoofer-i
Šipke,kablovi i torba za miksetu su sastavni deo ovog sistema
Dynacord CMS 1600-3
12 Mic/Line
4 Mic/Stereo Line Channels,
6 x AUX,
Dual 24 bit Stereo Effects,
USB-Audio Interface
http://www.megamusic.rs/dynacord-CMS-1600-3?keyword=cms%201600
Electro Voice ETX 15P Sateliti
|
Frequency Range |
40 Hz – 20 kHz |
|
Maximum SPL |
135 dB peak dB |
|
Power Consumption |
100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A |
|
Power Rating |
2000 W |
|
Frequency Response |
48 Hz – 20 kHz |
|
Coverage (Nominal -6 dB) H |
90 ° |
|
Coverage (Nominal -6 dB) V |
60 ° |
|
LF Transducer |
SMX2150 380 mm (15 in) |
|
HF Transducer |
DH3-B 1.25-in titanium compression driver |
|
Crossover Frequency |
1500 Hz |
|
Connector Type |
(2) XLR/TRS combo jack and (1) XLR link output |
|
Enclosure Material |
18-mm, 13-ply birch plywood with EVCoat |
|
Grill |
16AWG steel with powdercoat |
|
Suspension |
(8) M10 suspension points |
|
Height |
691 mm (27.2") |
|
Width |
431 mm (16.97") |
|
Depth |
447 mm (17.6") |
|
Weight Net |
27.7 kg (61.07 lbs) |
|
Shipping Weight |
31.5 kg (69.45 lbs)
|
Electro Voice ETX 18 SP SubWoofer-i
|
Frequency Range |
28 Hz – 180 Hz |
|
Low Pass Frequency |
Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz |
|
Maximum SPL |
135 dB peak dB |
|
Power Consumption |
100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A |
|
Power Rating |
1800 W |
|
Frequency Response |
33 Hz – 150 Hz |
|
LF Transducer |
DVX3180A 457 mm (18 in) |
|
Connector Type |
(2) XLR/TRS Combo Jack and (2) XLR link Output |
|
Height |
550 mm (21.65") |
|
Width |
675 mm (26.57") |
|
Depth |
910 mm (35.83") |
|
Weight Net |
51.8 kg (114.2 lbs) |
|
Shipping Weight |
58.9 kg (129.85 lbs)
|
