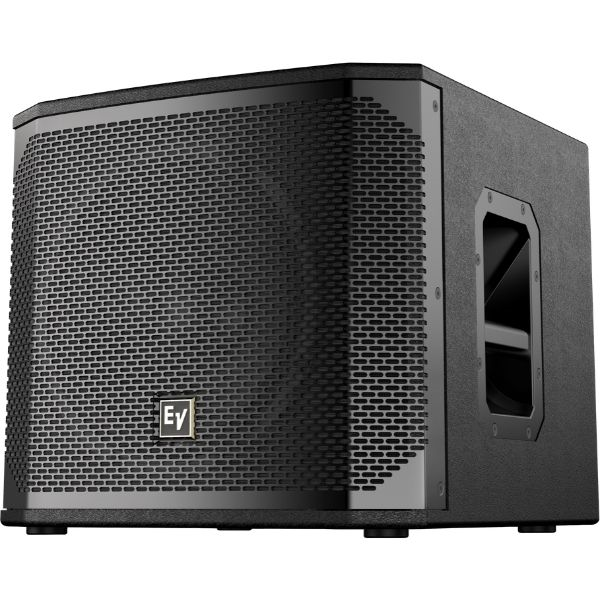

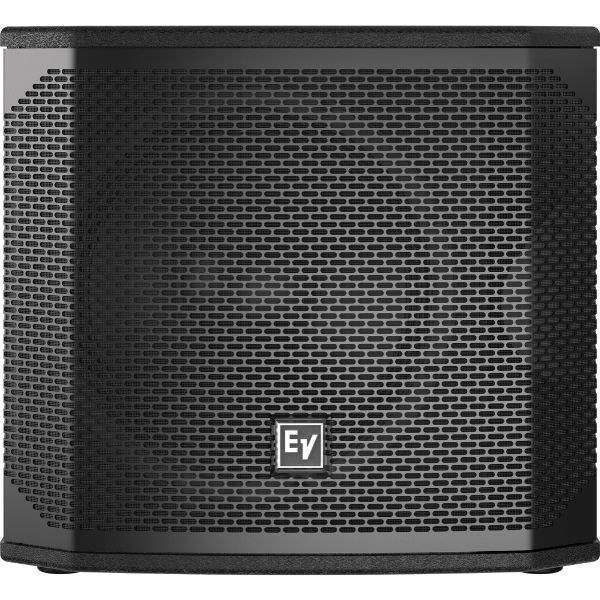

Electro-Voice ELX 200-12S

Pasivni 12" subwoofer


Dostupnost proizvoda: Ima na lageru

Specifikacije proizvoda:

  • Serija:
    • ELX 200
  • Frekventni odziv (-3dB):
    • 42 - 220 Hz
  • Frekventni opseg (-10dB):
    • 33 - 300 Hz
  • Osetljivost:
    • 93 dB
  • Kontinuirana snaga :
    • 400 W
  • Vršna (peak) snaga :
    • 1600 W
  • Niskotonac (bas):
    • 12"
  • Impedansa (oma):
    • 8 oma
  • Tip konektora:
    • NL4
  • Materijal:
    • Drvo - šperploča
  • Dimenzije Š x V x D:
    • 445 x 397 x 457 mm

Opis proizvoda:

12" Passive Subwoofer

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The subwoofers pack powerful low-frequency output into a surprisingly compact footprint, and feature tuned 15 mm thick wood enclosures with a premium top-coat finish. The proprietary features that have made the other members of the EV portable speaker family a go-to for best-in-class performance are also present.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.


Available Color Black
Axial Sensitivity (SPL, 1 W @ 1 m) 93dB

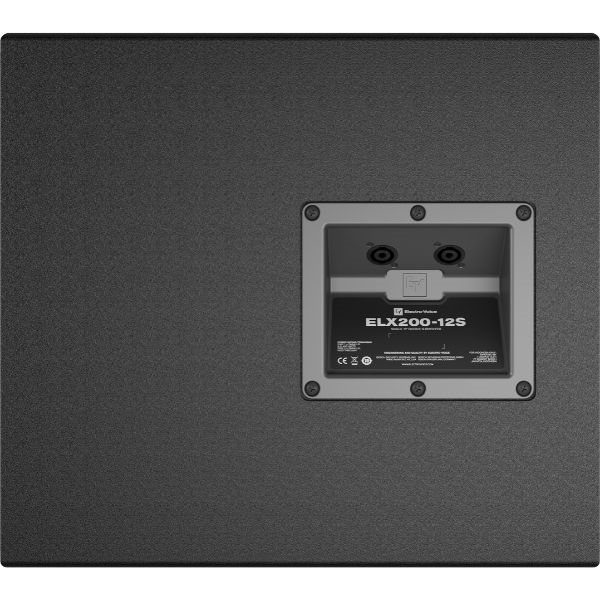

Connector Type Dual NL4
Depth 457mm (17.99")
Enclosure Material 15 mm plywood with durable polyurea top-coat finish
Family ELX200
Frequency Range (-10 dB) 33 Hz - 300 Hz
Frequency Response (-3 dB) 42 Hz - 220Hz
Grille 18 AWG steel with powdercoat
Height 397mm (15.63")
HF Transducer
LF Transducer EVS-12L 300 mm (12 in)
Max. SPL/1m (calc) 129dB
Minimum Impedance 6.9Ω
Nominal Impedance 8 ΩΩ
Power Handling (Continuous / Peak) 400 W/1600W
Power Rating 1600W
Recommended High-Pass Frequency 42Hz
Shipping Weight 20.2kg (44.53 lbs)
Speaker Type Subwoofer
Weight Net 20.2kg (44.53 lbs)
Width 445mm (17.52")
Woofer Size 12inch
