OUTPUT POWER |
|
|
Load impedance: |
2 Ω 2.7 Ω 4 Ω 8 Ω |
|
Maximum Output: |
5200 W 6000 W 5000 W 2500 W |
|
Number of amplifier channels: |
4 |
|
Maximum Output Voltage: |
210 Vpeak |
|
Maximum Output Current: |
84 Apeak |
|
AMPLIFIER |
|
|
Voltage Gain ref.1 kHz: |
32.0 dB, adjustable 24-40 dB |
|
Input Sensitivity ref. to Max. Output Voltage: |
13.7 dBu (3.73 V), adjustable 5.7-21.7 dBu |
|
THD 3 dB below Max., AES17, 1 kHz: |
< 0.05 % |
|
IMD-SMPTE, 60 Hz, 7 kHz: |
< 0.15 % |
|
DIM100, 3.15 kHz, 15 kHz: |
< 0.15 % |
|
Crosstalk ref. 1 kHz, 12 dB below Max., 8 Ω: |
< -80 dB |
|
Frequency Response ref. 1 kHz, analog in to speaker out: |
20 Hz to 20 kHz (±1 dB) |
|
Damping Factor, 20 Hz to 200 Hz, 8 Ω: |
> 400 |
|
Output Stage Topology: |
Class D, fixed frequency |
|
Signal to Noise Ratio |
|
|
A-weighted, analog input: |
115 dB |
|
A-weighted, digital input: |
118 dB |
|
Output Noise |
|
|
A-weighted, analog input: |
< -70 dBu |
|
A-weighted, digital input: |
< -73 dBu |
|
DIGITAL SIGNAL PROCESSING |
|
|
Sampling rate: |
48 kHz/96 kHz, OMNEO/Dante synchronized |
|
Signal Delay/Latency |
|
|
Analog in to Speaker Out, 48 kHz/96 kHz: |
0.70 ms/0.53 ms |
|
AES3 in to Speaker Out, 48 kHz/96 kHz: |
1.00 ms/0.66 ms |
|
Dante Network Latency: |
typ. 1.00 ms |
|
Signal Processing: |
32/40 bit, floating point |
|
User EQ: |
12 filters per channel, selectable as PEQ, Lo-Shelv, Hi-Shelv, Lo-ShelvQ, Hi-ShelvQ, Hi-Pass, Lo-Pass and Notch; 2 filters of them withadditional asymmetric filter type |
|
User Delay: |
0 to 2000 ms per channel (units: μs, ms, s,cm, m, inches, feet) |
|
Array EQ: |
5 filters per channel, selectable as PEQ, Lo-Shelv, Hi-Shelv, Lo-ShelvQ, Hi-ShelvQ, Hi-Pass, Lo-Pass, and All-Pass |
|
Array Delay: |
0 to 500 ms per channel (units: μs, ms, s, cm,m, inches, feet) |
|
Speaker EQ: |
10 filters per channel, selectable as PEQ, Lo-Shelv, Hi-Shelv, Hi-Pass, Lo-Pass, and All-Pass |
|
Speaker X-Over: |
Hi-Pass and Lo-Pass per channel, 6/12/18/24/30/36/42/48 dB Bessel/Butterworth, 12/24/48 dB Linkwitz-Riley; Alignment Delay, 0 to 20 ms per channel |
|
Speaker FIR: |
up to 1025 taps, Linear Phase Filter, Linear Phase Brickwall X-Over |
|
Speaker Limiters: |
Peak Anticipation Limiter and RMS/TEMP Limiter per channel |
|
Other functions: |
Source Selection and Mix, Level, Mute, Polarity, Sine and Noise Generator, Level Meters, Impedance Measurement, and Load Monitoring |
|
Memory |
|
|
DSP Presets: |
1 Factory + 20 User |
|
Speaker-Pool Presets: |
30 speaker settings |
|
Source Supervision and Fallback: |
AES3 Lock and OMNEO/Dante network supervision, switchover to alternative Source Selection |
|

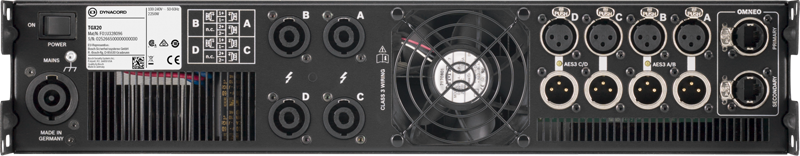

CONNECTIVITY |
|
|
Analog Audio Input/Thru |
|
|
Type: |
4 x 3-pin XLR female/male |
|
Maximum Input Level: |
+24 dBu |
|
Input Impedance, active balanced: |
20 kΩ |
|
Reference level equal to digital input: |
+21 dBu for 0 dBFS |
|
Digital Audio Input/Thru |
|
|
Type: |
2 x 3-pin XLR (alternative use of Analog In/Thru) |
|
Format: |
AES3 (AES/EBU) |
|
Input Sample Rates: |
32 to 192 kHz, internal Sample-Rate-Converter |
|
Thru Connector: |
active buffered, direct bypass if device is unpowered |
|
Network |
|
|
Type: |
2 x Neutrik etherCON/RJ45, redundant PRIMARY/SECONDARY |
|
Format: |
1000base-T/100base-TX, integrated switch |
|
Network Audio Inputs: |
8 channels, 48/96 kHz, OMNEO/Dante format |
|
Network Audio Outputs (Monitor): |
2 channels, 48/96 kHz, OMNEO/Dante format |
|
Front side Service Port: |
1 x USB Type A |
|
Mains Input: |
1 x Neutrik powerCON-HC |
|
Speaker Output: |
4 x NL4 |
|

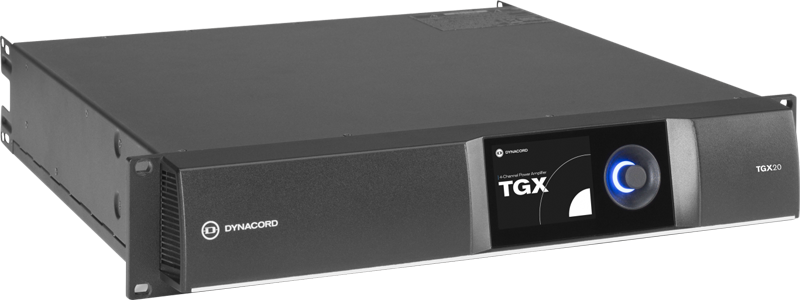

GENERAL |
|
|

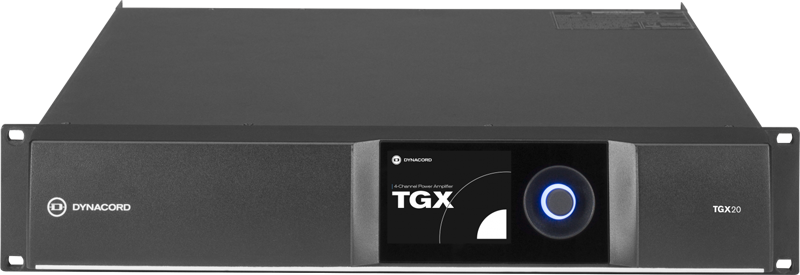

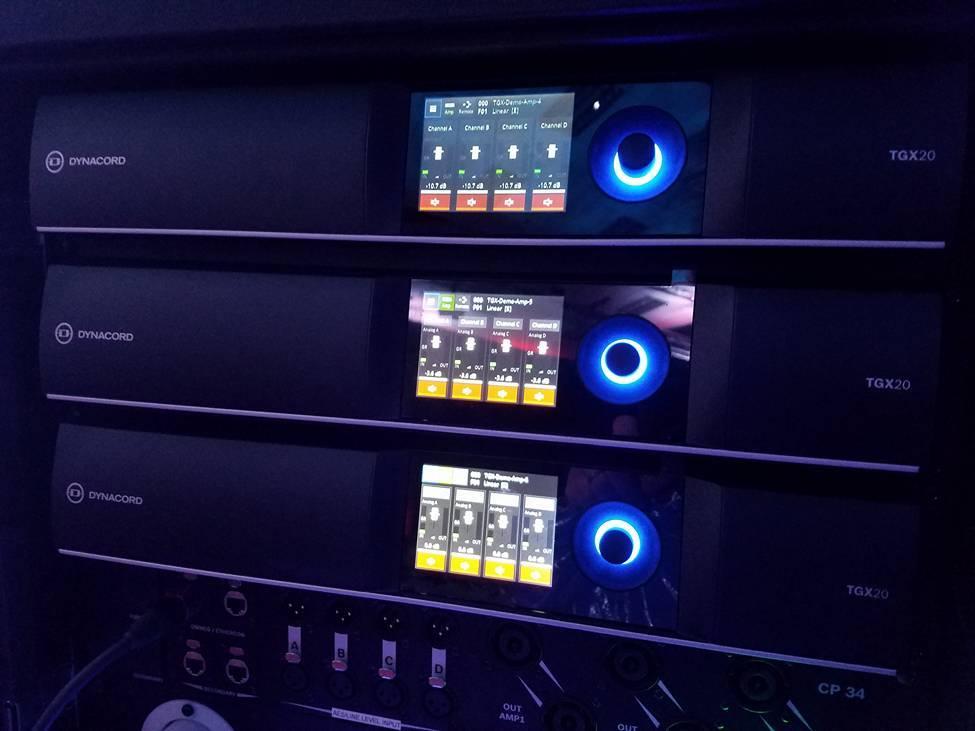

User Interface |
|
|
Display: |
320 x 240 pixel, 3.5" color TFT |
|
Front panel indicators: |
Full color LED illuminated ring |
|
Front panel operating elements: |
Rotary encoder, Capacitive Touch Screen |
|
Rear panel indicators: |
2 x LED (AES3 Input mode active, Amp-Find) |
|
Rear panel operating elements: |
Mains switch |
|
Power Requirements: |
100 V to 240 V, 50 Hz to 60 Hz AC |
|
Power Consumption |
|
|
Rated Power Consumption: |
2250 W |
|
1/8 Maximum Output Power at 4 Ω: |
2850 W |
|
Idle Mode (no input signal): |
110 W |
|
Standby Mode: |
< 19 W |
|
Power Supply Topology: |
Switching Mode Power Supply with digital controlled Power Factor Correction |
|
Protections: |
Audio Limiters, High Temperature, DC, HF, Short Circuit, Back-EMF, Peak Current Limiters, Inrush Current Limiters, Turn-on Delay, Mains Circuit Breaker Protection, Mains Over/Under voltage Protection |
|
Cooling: |
Front-to-rear, temperature controlled fans, supervised |
|
Ambient Temperature Limits: |
+5 °C to +40 °C (+40 °F to +105 °F) |
|
IEC Protection Class: |
Class I (grounded) |
|
Electromagnetical Environment: |
E1, E2, E3 |
|
Color: |
Black |
|
Dimensions (W x H x D), mm: |
483 x 88.1 x 514.2 |
|
Weight: |
18.3 kg (40.4 lb) |
|
Shipping Weight: |
20.5 kg (45.2 lb) |
