Electro-Voice RE3 ND96-5H
Electro-Voice RE3 ND96-5H

Kod proizvoda:2035

Electro-Voice RE3 ND96-5H

Bežični mikrofon sa dinamičkom glavom Electro-Voice ND76, 560 - 596 MHz, 50 mW, 1440


Dostupnost proizvoda: Ima na lageru

Specifikacije proizvoda:

  • Polarna karakteristika:
    • Superkardioidni
  • Opseg rada:
    • 560 - 596 MHz
  • Predajna snaga:
    • 10mW i 50mW
  • Tip :
    • Dinamički

Opis proizvoda:

RE3-ND96-5H 560-596MHz

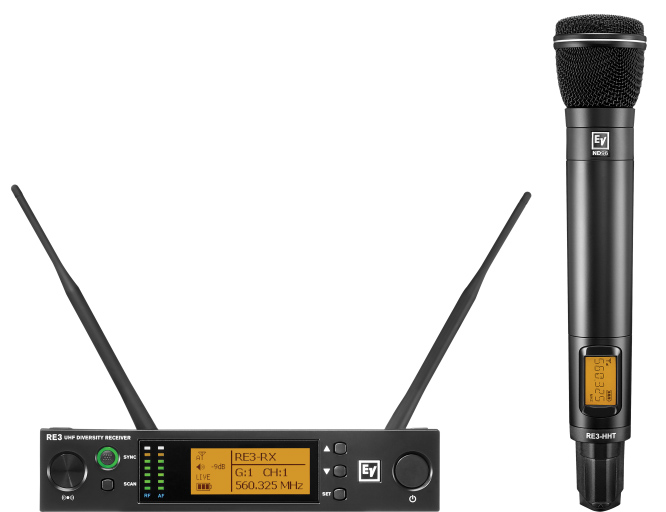

UHF wireless set featuring ND96 dynamic supercardioid microphone


Handheld UHF wireless set featuring ND96 dynamic supercardioid microphone head for vocal performance and presentations. The ND96’s sound is powerful, rich, and detailed, and delivers exceptionally high gain before feedback for excellent acoustic control on very loud stages.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.


ND96-RC3 Wireless head with ND 96 capsule


Element type Dynamic neodymium magnet structure
Frequency response, close 30 Hz-15 kHz
Frequency response, far 140 Hz-15 kHz
Polar pattern Supercardioid


Sensitivity, open circuitvoltage @ 1 kHz in flatposition 4.7 mV/Pascal (-46.5 dBV/Pa)
Sensitivity, open circuitvoltage @ 1 kHz in vocalpresence position 3.2 mV/Pascal (-50 dBV/Pa)
Maximum SPL 136.5 dB SPL (1% THD)
Impedance 1000 ohms
Power requirements 4-8 VDC
Polarity Positive pressure on diaphragmproduces positive voltage at centercontact relative to ground contact
Electrical contact 3-Ring/3-Pin
Threaded coupling 1.25" diameter
28 UN-2A thread pitch
Finish Black polyurethane paint
Materials Aluminum, steel, steel wire grillescreen
Dimensions, length diameter 3.3 in. (83.5 mm)2.0 in. (50.5 mm)
Net weight 6.8 oz (193 g)
Shipping weight 8.7 oz (247 g)


RE3-HHT Handhekd Transmitter

Function Controls Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock.
RF Stability <±10kHz@Fc
Modulation Frequency Shift Wideband FM
±48kHz deviation
Harmonic Radiation <-50dBc
Battery 2 x AA alkaline battery or NiMH rechargeable battery
Charging Contacts Yes
Microphone Coupling 1.25” diameter, 28 UN-2A thread pitch
Microphone Electrical Contact 3-ring/3-pin
Finish Black polyurethane paint
Dimensions (without head) Height: 7.52 inch (191mm)
Width at threaded end 1.46 inch (37mm)
Width at control cover 0.856 inch (22mm)
Net Weight: (without head) 12.2oz [346 grams]
Gross Weight (without head) 16.9oz [480 grams]
Frequency Oscillation Mode Phase-locked loop (PLL)
Sync Frequency Ultrasonic
Display By LCD + LED


RE3-RX Diversity Receiver

Diversity: Antenna diversity
Bandwidth: 36MHz
Signal/Noise Ratio: >100dB(A)
Total Harmonic Distortion (Thd): <0.6%@1kHz
Receiving Sensitivity: -81dBm for -12dB SINAD
Frequency Response: 63Hz~16kHz±2dB (BPT) 51Hz~16kHz±2dB (HHT)
Antenna Type: Detachable ½ wave with BNC connector
Antenna Booster Power: DC12 - 15V/100mA
Function Display By: LCD
Contents Of Display: Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator.
Control Functions: Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.
Sync Data Options: Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)
Audio Frequency Output Level: Ref:±22.5kHz  Dev@1kHz Tone
¼” (6.3mm) Phone Jack:-10dBV
XLR  Jack:-4dBV(Line)、-24dBV(MIC)
Audio Frequency Output Impedance: 240Ω (unbalanced) 1400Ω (balanced)
Squelch and noise muting: Noise muting and tone code locking
 Output Ports: 1 x balanced XLRM jack 1 x unbalanced ¼” TS (6.3mm) jack
Power Supply: DC12~15V/500mA
Finish: Black polyurethane paint
Dimensions: Width: 8.27 inch (210mm)
Height: (with feet attached) 1.85 inch (47mm)
Height: (without feet attached) 1.73 inch (44mm)
Depth: (including antenna jack) 6.89 inch (175mm)
Depth: (not including antenna jack) 6.1 inch (155mm)
Net Weight: 2.71 lbs [1.23 kg]
Gross Weight: 3.28 lbs [1.49 kg]
Frequency Oscillation Mode: Phase-locked loop (PLL)
Carrier Frequency Range: 470 - 865 MHz (tuning bandwidth is band-dependent)
Sync Frequency: Ultrasonic 40 kHz
