Electro-Voice RE3 BPGC-5H
Electro-Voice RE3 BPGC-5H

Kod proizvoda:2174

Electro-Voice RE3 BPGC-5H

Bežični set za instrumente, 560 - 596 MHz, 50 mW, 1440 frekvencija

73.200,00

Dostupnost proizvoda: Ima na lageru

Specifikacije proizvoda:

  • Opseg rada:
    • 560 - 596 MHz
  • Predajna snaga:
    • 10mW i 50mW

Opis proizvoda:

RE3-BPGC

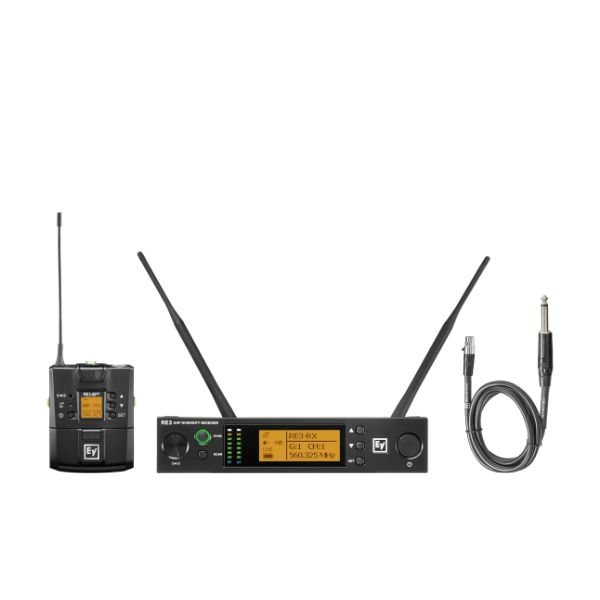

UHF wireless set featuring the GC3 instrument cable


Bodypack UHF wireless set featuring the GC3 instrument cable for wireless music performance. The GC3 is a special purpose cable for connecting instruments or line level signal sources with ¼” output jacks to the RE3-BPT bodypack transmitter.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.



RE3-RX Diversity Receiver

Frequency Oscillation Mode: Phase-locked loop (PLL)
Carrier Frequency Range: 470 - 865 MHz (tuning bandwidth is band-dependent)
Sync Frequency: Ultrasonic 40 kHz
Diversity: Antenna diversity
Bandwidth: 36MHz
Signal/Noise Ratio: >100dB(A)
Total Harmonic Distortion (Thd): <0.6%@1kHz
Receiving Sensitivity: -81dBm for -12dB SINAD
Frequency Response: 63Hz~16kHz±2dB (BPT) 51Hz~16kHz±2dB (HHT)
Antenna Type: Detachable ½ wave with BNC connector
Antenna Booster Power: DC12 - 15V/100mA
Function Display By: LCD
Contents Of Display: Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator.
Control Functions: Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.
Sync Data Options: Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)
Audio Frequency Output Level: Ref:±22.5kHz  Dev@1kHz Tone
¼” (6.3mm) Phone Jack:-10dBV
XLR  Jack:-4dBV(Line)、-24dBV(MIC)
Audio Frequency Output Impedance: 240Ω (unbalanced) 1400Ω (balanced)
Squelch and noise muting: Noise muting and tone code locking
 Output Ports: 1 x balanced XLRM jack 1 x unbalanced ¼” TS (6.3mm) jack
Power Supply: DC12~15V/500mA
Finish: Black polyurethane paint
Dimensions: Width: 8.27 inch (210mm)
Height: (with feet attached) 1.85 inch (47mm)
Height: (without feet attached) 1.73 inch (44mm)
Depth: (including antenna jack) 6.89 inch (175mm)
Depth: (not including antenna jack) 6.1 inch (155mm)
Net Weight: 2.71 lbs [1.23 kg]
Gross Weight: 3.28 lbs [1.49 kg]





RE3-BPT

Frequency oscillation mode
  Phase-locked loop (PLL)
Available band names, tuning
bandwidths, and carrier
frequency ranges
5L: 36 MHz (488-524 MHz)
5H: 36 MHz (560-596 MHz)
6M: 10 MHz (653-663 MHz)
8M: (823-865 MHz)*
T: 3 MHz (803-806 MHz)
*8M is split into two segments:
823-832MHz: 9MHz
863-865MHz: 2MHz
Sync frequency Ultrasonic
RF power output Frequency band specific:
5L (488-524MHz): Low 10mW / High
50mW
5H (560-596MHz): Low 10mW / High
50mW
6M (653-663MHz): Low 10mW /
High 20mW
8M (823-865MHz) 10mW
T (803-806MHz): Low 10mW / High
50mW
Display by LCD + LED
Function controls Power, mute, group, channel,
frequency, sensitivity adjustment,
input level attenuation, RF power,
auto off, key lock.
RF stability <±10kHz@Fc
Modulation frequency shift Wideband FM ±48kHz deviation
Harmonic radiation <−50dBc
Input jack 4-pin mini jack
Battery 2 x AA alkaline battery or NiMH
rechargeable battery
Charging contacts Yes
Finish Black polyurethane paint
Dimensions (without
antenna)
Height: 3.2 in. (81.5mm)
Width: 2.54 in. (64.5mm)
Depth: 0.98 in. (25mm)
Net weight 6.14 oz. (0.174 kg)
Gross weight 8.29 oz. (0.235 kg)
