Kod proizvoda:2288

Infinity iW-720 set

Six units Infinity iW-720 moving head wash with 1 Premium line flight case



Pozovite za cenu

Download:

41524_MANUAL_GB_V1-LunJ

Specifikacije proizvoda:

Opis proizvoda:

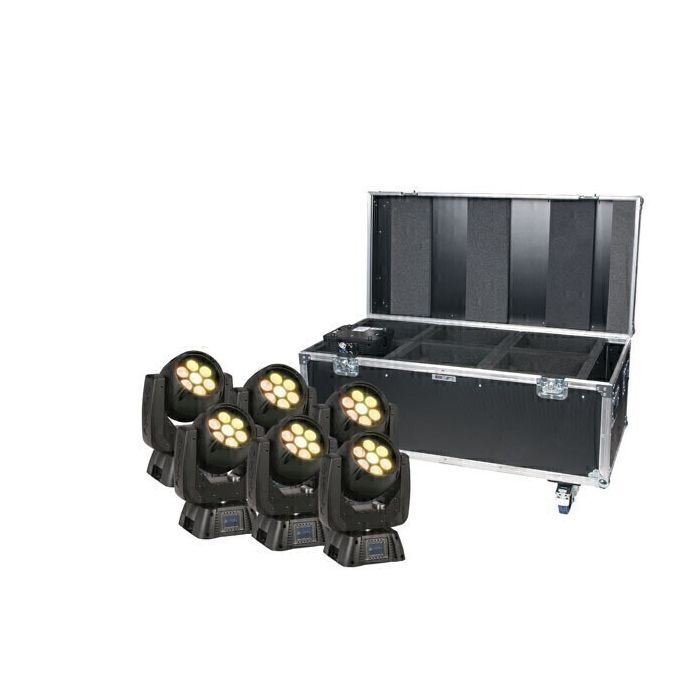

Six units Infinity iW-720 moving head wash with 1 Premium line flight case

Keeping your equipment safe during transportation, handling and storage is key if you want to use and enjoy it for a long time. Premium line flightcases have been designed especially for this reason.
These custom-made, European flightcases use only Penn-Elcom hardware and have been designed and developed to meet the transport requirements of specific items.

9mm plywood and CNC machined foam interiors make sure that these cases will last and your fixtures will stay safe. To make your life easier, these Premium line flightcases have standard truck sizes which provide easy transportation and handling.
We have combined the Premium line flightcase with the corresponding light fixtures. And to make your decision easier, there is a price benefit for this set.

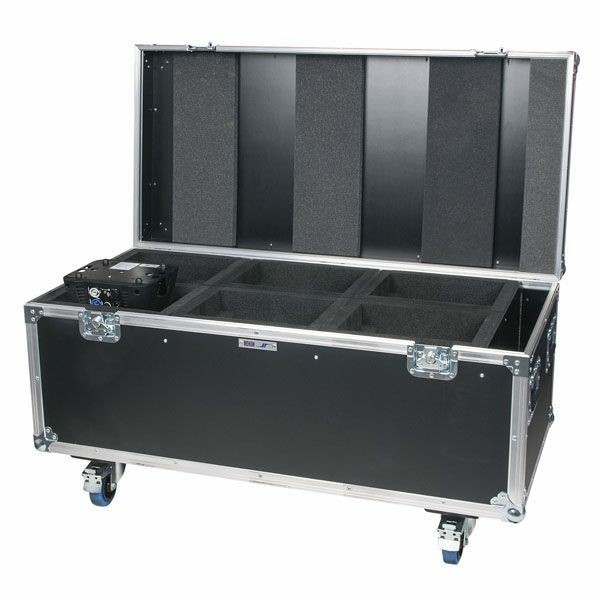

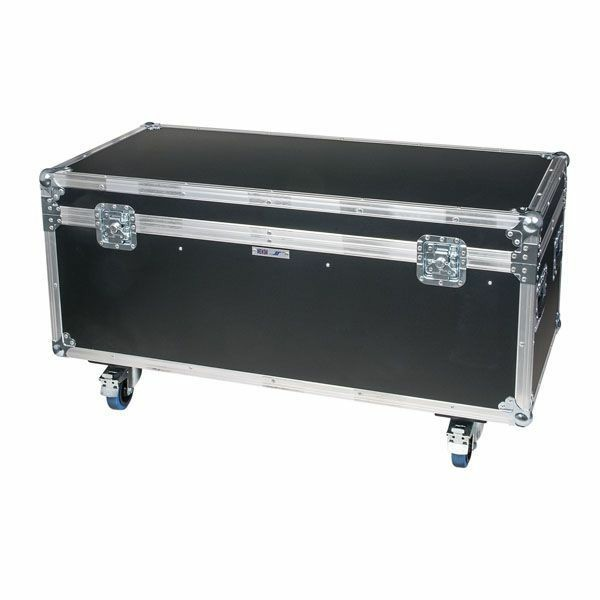

DAP Case for 6pcs iW-720:

The Premium Line cases from DAP are the ideal solution for professional users, regularly moving and storing small to medium sized items. Built in Europe with a perfect fit and top quality finish. It’s made with a high quality core construction from only the finest materials, including 9mm birch plywood, faced with thermoplastic high grade laminates. It is equipped with Penn Elcom hardware and the standard 30mm aluminium angle protects all leading edges, the polyurethane and polyethylene foam interior is exactly shaped to perfectly fit your gear and ensure maximum protection. The DAP Premium Line cases are the perfect choice for professionals.

  • CNC machined foam interiors for max protection
  • 9mm high grade plywood carcass construction
  • All Penn-Elcom hardware
  • 100mm castors with safe weight loading of 400Kg fitted as standard
  • Including Infinity Stage Tool

SPECIFICATIONS

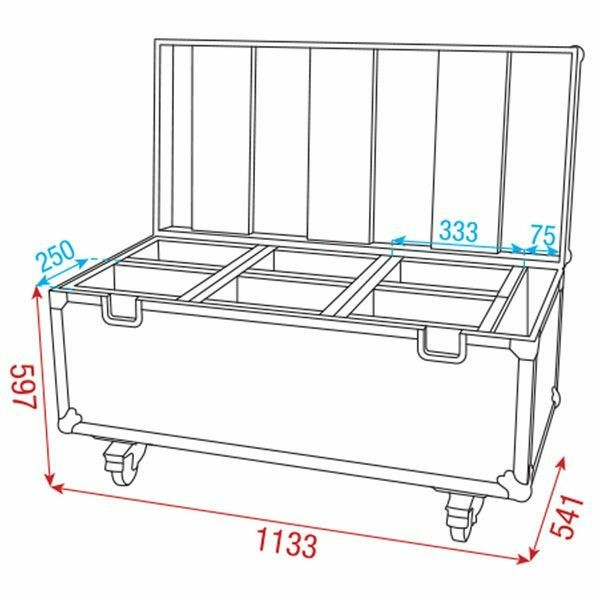

Flightcase measurements including 6 units of iW-720:

  • Dimensions: 627 x 571 x 1163mm
  • Wheels: 4x 100m swivel with brake
  • Weight: 93,56kg

Infinity iW-720:

The Infinity® iW-720 is equipped with seven 20W quad color RGBW LEDs and offers seamless zoom from 7° to 50°. Another significant key feature is the segment control of the LEDs; these are divided into 4 sections which can be controlled individually offering the user endless creative possibilities.

High speed motors for pan and tilt movement are used for accurate and very fast movements. Strobe and dimming functionalities are controlled by a microprocessor, ensuring smooth 0-100% dimming as well high speed 0-20Hz strobe effects.

Multiple dimming curves can be selected where both, halogen modes or quick dimming can be achieved.

  • Motorized Zoom
  • 4 Section control
  • Ultra fast movement through high torque motors
  • Battery powered menu

SPECIFICATIONS

Output

  • Lux @ 2m: 28300
  • Beam Angle: 7-50°
  • Light Source: 7x 20W RGBW 4-in-1 LED (LED Engin)

Electrical

  • Input Voltage: 100~240VAC, 50/60Hz
  • Power consumption: 240W max. at full output

Control

  • On-Board: Battery powered full color display including gravity sensor
  • Battery lifetime: max 30 days (full charge)
  • Mode: DMX, Auto & Master/Slave
  • Control Protocol: DMX512
  • Control Personality: Advanced 29ch /Basic 16ch, 14ch
  • Wireless DMX: optional available

Optical system

  • Dimmer: 0-100%
  • Dimmer curves: Linear, Square, I-Square, S curve
  • Dimmer speed: Smooth, fast
  • Color balance: Separate RGBW adjustment
  • Strobe: 0-20Hz
  • Zoom: Motorized

Movement

  • Pan: 540°
  • Tilt: 270°
  • Pan/Tilt resolution: 16 bit
  • Special: Pan/ Tilt, change blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement

Physical

  • Color: Black
  • Housing: Metal & Flame-retardant plastic
  • Fixture Connection: XLR 3p Data in/out, Powercon in- & output
  • Dimensions (WxDxH): 204 x 219 x 380 mm
  • Weight: 8Kg

Certification and Safety

  • Certification: CE

Max. ambient Temp.: 40°C
