Kod proizvoda:2290

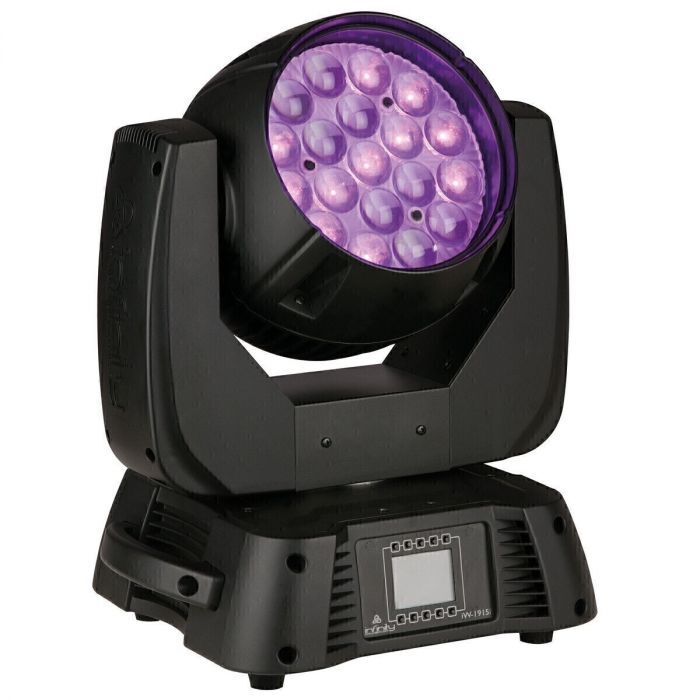

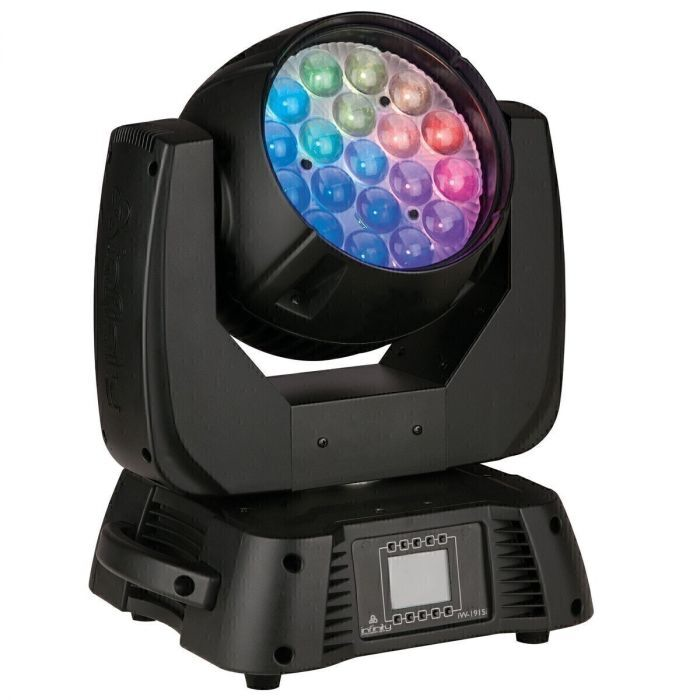

Infinity iW-1915 Pixel

RGBW Wash, Zoom, Pixel control
Motorized Zoom
Full Pixel Control
Clear lens with background colour effect
Fast movement through high torque motors
Selectable RGBW or CMY colour mixing



Download:

41523_MANUAL_GB_V4

Pozovite za cenu

Specifikacije proizvoda:

Opis proizvoda:

The Infinity iW-1915 Pixel combines all benefits of the already popular iW-1915 with full pixel control, allowing boundless creativity for lightshows and multimedia experiences.



A clear high grade lens plate with excellent optics ensures a perfect color mix at any zoom position and can create stunning aura effects.



The wide linear zoom function, starting from 7° up to 50°, allows you to use the fixture either as beam effect or wash light. Also the iW-1915Pixel is equipped with high torque motors to ensure fast movements.

Output

  • Lux @ 2m: 36600
  • Beam Angle: 7° - 50°
  • Light Source: Osram Ostar 19x15W RGBW 4-in-1

Electrical

  • Input Voltage: 100-240V, 50/60Hz
  • Power consumption: 415w max at full output

Control

  • On-Board: Battery powered full color display including gravity sensor
  • Battery lifetime: max 30 days (full charge)
  • Mode: DMX, Auto & Master/Slave
  • Control Protocol: DMX512, Artnet
  • Control Personality: Advanced 97ch /Basic 21ch
  • Wireless DMX: optional available

Optical system

  • Dimmer: 0-100%
  • Dimmer curves: Linear, Square, I-Square, S curve
  • Dimmer speed: Smooth, fast
  • Color balance: Separate RGBW adjustment
  • Strobe: 0-20Hz
  • Zoom: 7° - 50°, motorized

Movement

  • Pan: 540°
  • Tilt: 270°
  • Pan/Tilt resolution: 16 bit
  • Special: Pan / Tilt movement blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement

Physical

  • Color: Black
  • Housing: Metal & Flame-retardant plastic

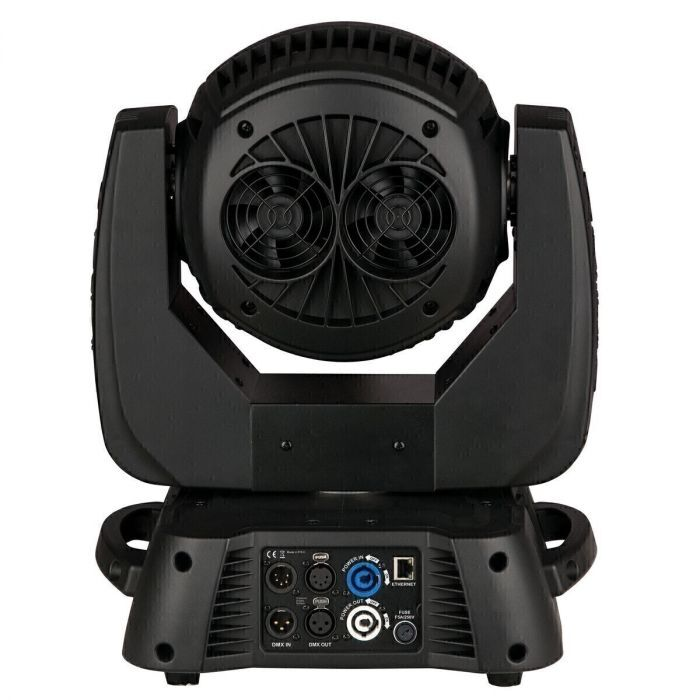

  • Data Connection: XLR 3&5p & RJ-45 Data in/out, Powercon power input
  • Dimensions (WxDxH): 303 x 366 x 427mm
  • Weight: 14Kg
  • Certification: CE
  • Max. ambient Temp: 40°C
