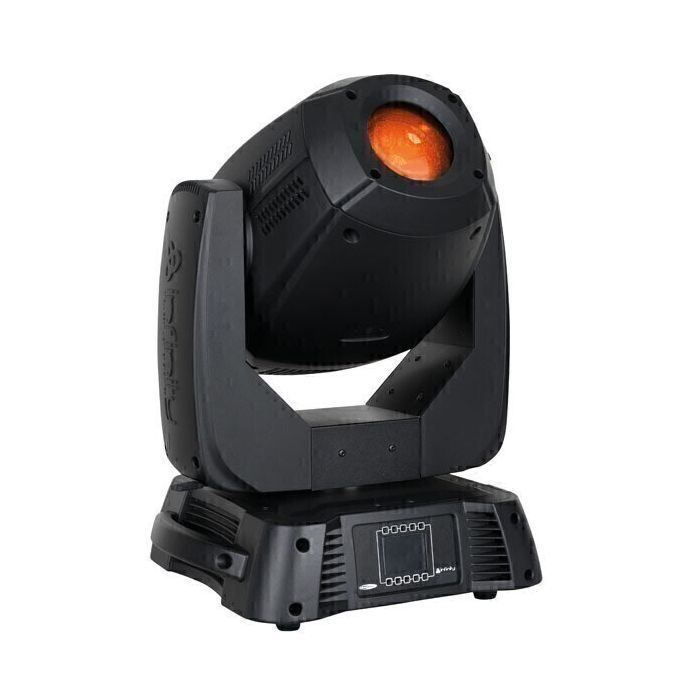

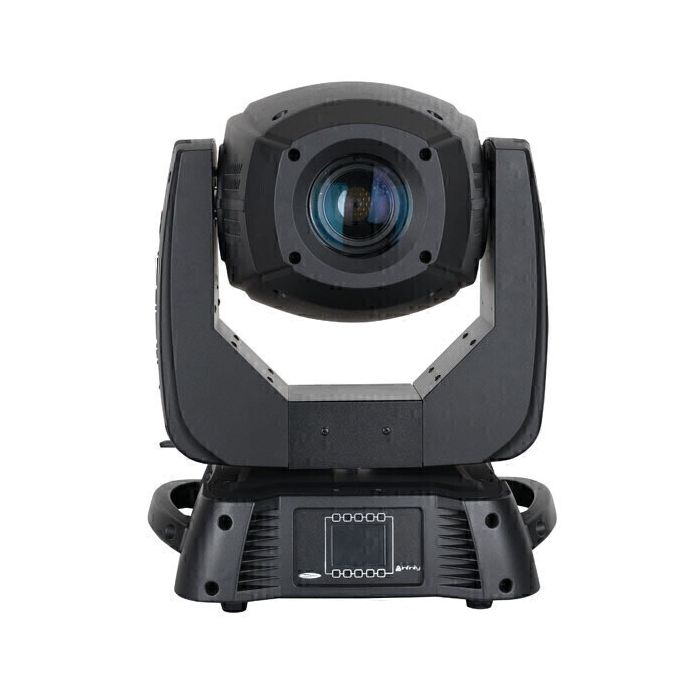

The Infinity iS-250 moving head is the upgraded version of the very popular Infinity iS-200. Thanks to its high light output, the fast movements and wide range of functionalities, the iS-250 is a real all-rounder that will please even the most demanding lighting professional!
It comes with a boosted LED power of 250W, a refined optical system and the electric zoom range of 12-27 degrees. Especially the improved optics and output will impress every lighting operator.
The iS-250 also contains two gobo wheels with 15 gobos, for special aerial beam effects and beautiful projections. Combined with the 14 colors, a rotating 3-facet prism as well as the motorized focus and iris, it is possible to shape this fixture's output in any manner.
Quick-lock screws on the top covers enable easy access, and exchanging gobos or maintenance is therefore simple and quick. Powercon and Neutrik XLR connectors provide reliable connections in any situation.
Specifications
Output
Lux @ 1m: 102400 (12°)
Beam Angle: 12° - 27°
Light Source: 250W White LED (LumiEngin)
Source Temperature: 6000K
Electrical
Input Voltage: 100~240VAC, 50/60Hz
Power consumption: 420W max. at full output
Control
On-Board: Battery powered full color display including gravity sensor
Battery lifetime: max 30 days (full charge)
Mode: DMX, Auto & Master/Slave
Control Protocol: DMX512
Control Personality: Advanced 27ch /Basic 21ch
Wireless DMX: optional available
Optical system
Dimmer: 0-100%
Strobe: 0-20Hz
Focus: Motorized
Iris: Motorized
Prism: 3-facet rotating prism
Frost filter: Yes
Movement
Pan: 540°
Tilt: 270°
Pan/Tilt resolution: 16 bit
Special: Pan/ Tilt, Color,Gobo change blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement
Gobos & Colors
Gobowheel 1 Rotating: 2 glass + 5 metal gobos (replaceable)
Gobowheel 2 Static: 8 metal gobos
Gobo functions: Gobo-flow effect,Gobo shake
Rotation: Bi-directional
Gobo image diameter: 25mm
Gobo outer diameter: 29mm
Colorwheel 1: 7 dichroic-filters + white
Colorwheel 2: 7 dichroic-filters + white
Color functions: Split colors, Rainbow-flow effect
Physical
Color: Black
Housing: Metal & Flame-retardant plastic

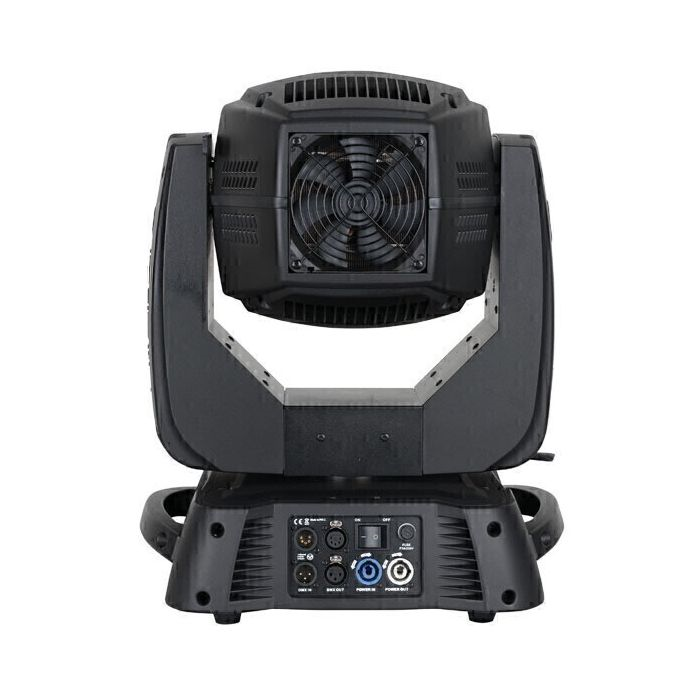

Fixture Connection: XLR 3&5p Data in/out, Powercon in- & output
Dimensions (WxDxH): 346 x 420 x 582 mm
Weight: 25,5 Kg
Certification and Safety
Certification: CE
Max. ambient Temp.: 40°C
