Kod proizvoda:2294

Infinity iW-741 RDM

RGBW Wash, Electronic Zoom, 5p DMX

Ultrafast movements

Zoom 3.6° to 60°

Selectable PWM rate by DMX

Battery powered display

White Output Mode



Download:

415285P_MANUAL_GB_V1-nEJT

Pozovite za cenu

Specifikacije proizvoda:

Opis proizvoda:

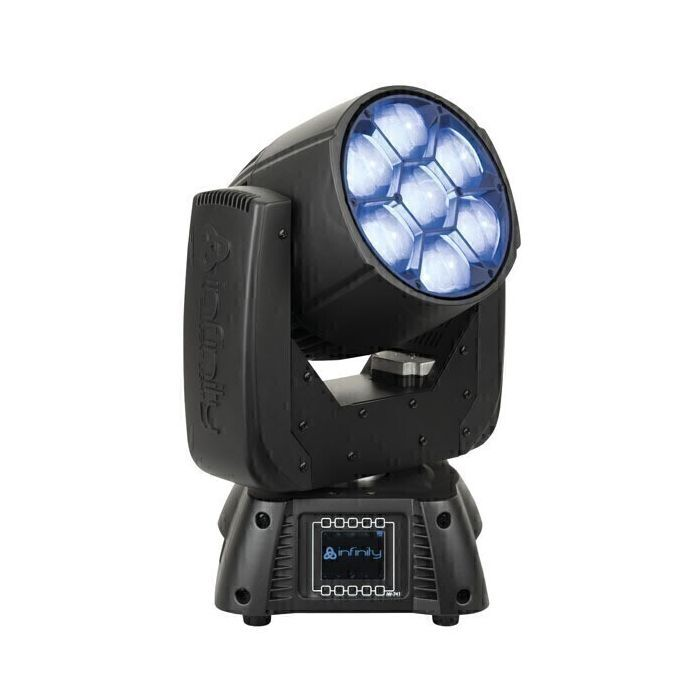

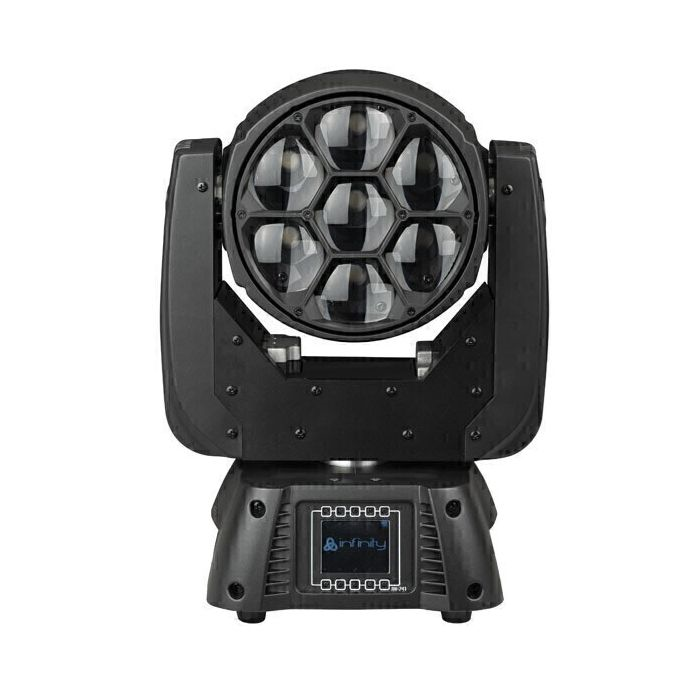

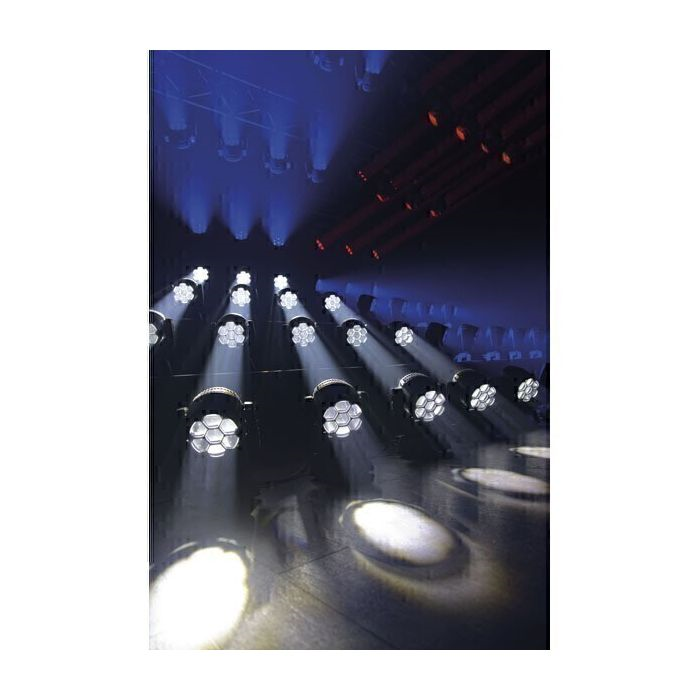

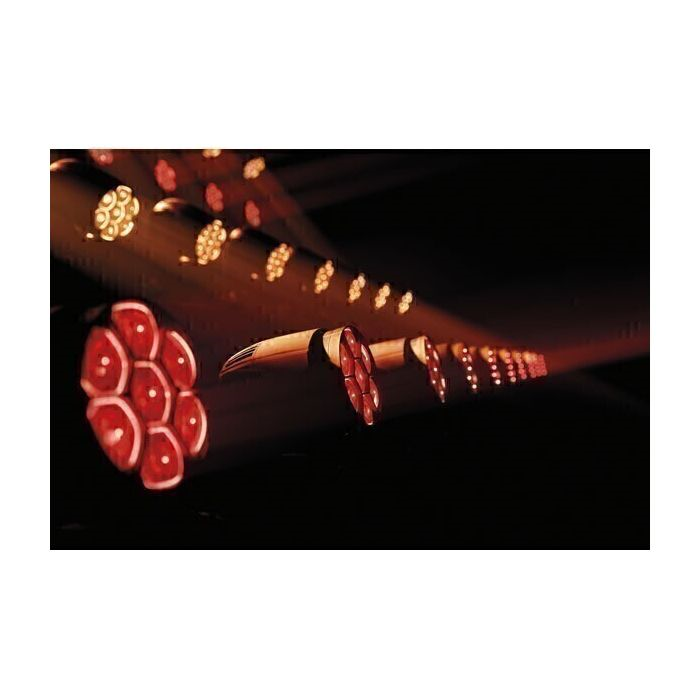

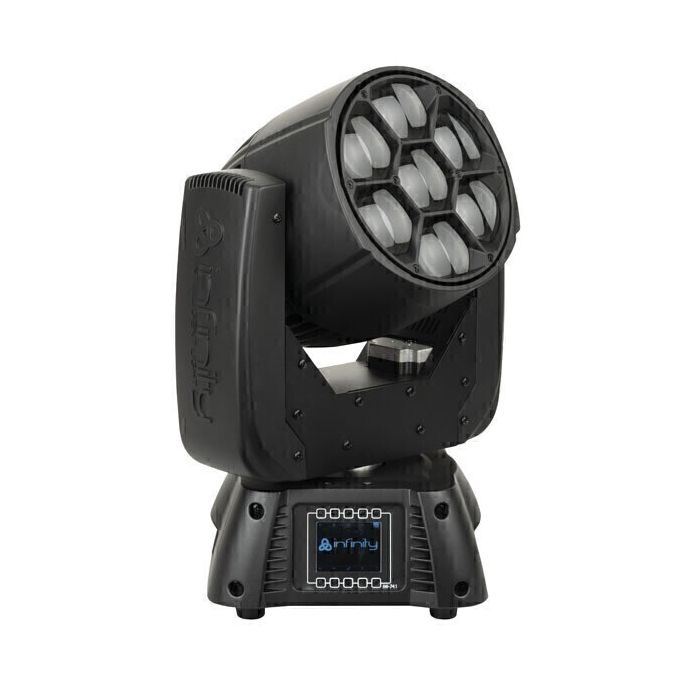

The Infinity iW-741 is a compact power-pack which is equipped with 7 RGBW 40W Osram LEDs. Especially selected motors provide ultrafast and precise movements. In combination with motorized zoom a razor sharp 3,6° beam can be produced which changes into a 60° wash effect through various available controlling protocols. The seven O-Star LEDs produce very bright and saturated colours and by changing the PWM through DMX the iW-741 is very well suited for theatre or television applications.

Specifications:
Light Source Type: LED
Light Source Quantity: 7
Light Source Power: 40 W
Led Colour Type: RGBW
Lumen Total: 3208 lm
CRI: 78
Beam Angle Circular (min): 3.6 °
Beam Angle Circular (max): 60 °
Zoom Minimum: 3.6 °
Zoom Maximum: 60 °
Control Mode: Auto / DMX / Master Slave
DMX Channels: 15 / 20
Protocols: DMX / RDM
Wireless: Optional
Display: LCD
Fanmode: Yes
Dim Curve: Lineair / Square / I-Square / S-Curve
Dimmer: 0-100%
Strobe: 0-20Hz
Pan: 540 °
Tilt: 270 °
Power Supply: 100-240VAC 50-60Hz
Power Consumption: 295 W

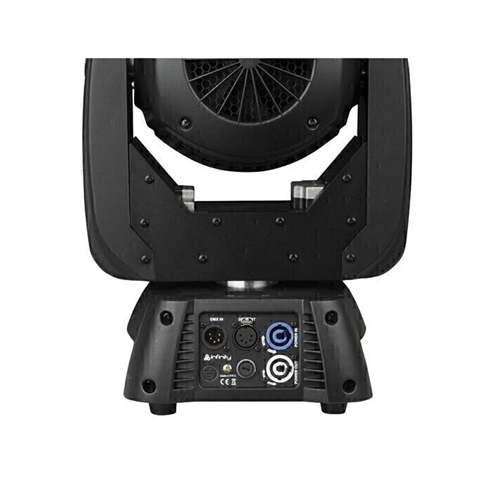

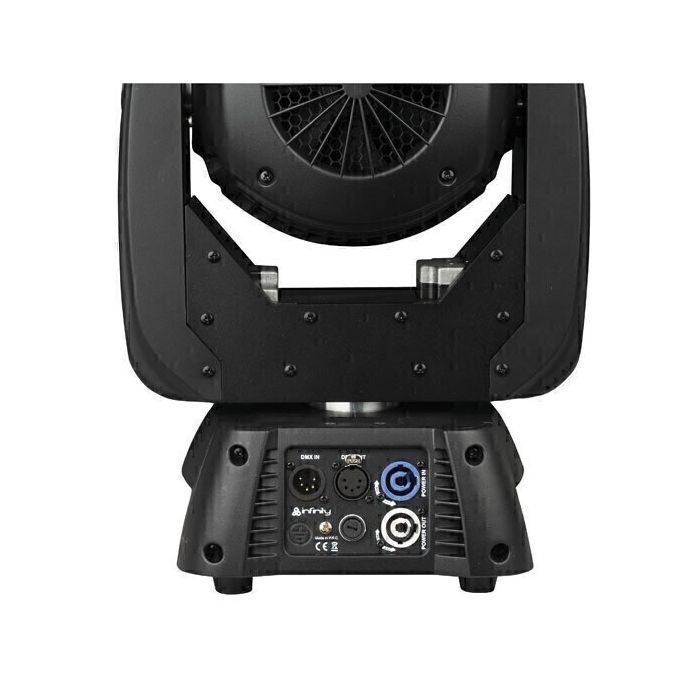

Power Connector in: PowerCON Blue
Power Connector out: PowerCON Grey
DMX Connector: XLR 3P In/Out
Length (mm): 290 mm
Height (mm): 418 mm
Width (mm): 204 mm
Weight: 9.36 kg
IP Rating: IP20(indoor use only)
Housing: Metal / Plastic
Colour: Black

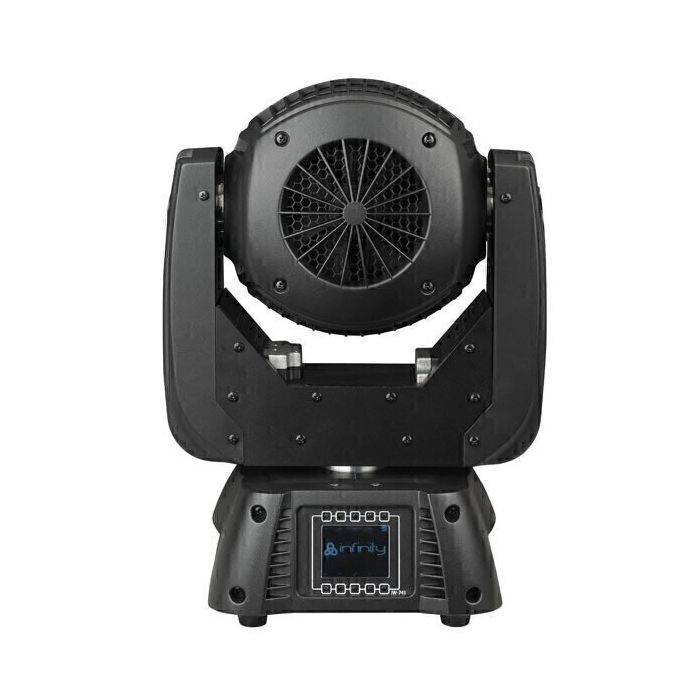

Cooling: Axial fan
Mounting Options: Quick Lock / Clamp
Safety Attachment: Yes
