Kod proizvoda:2299

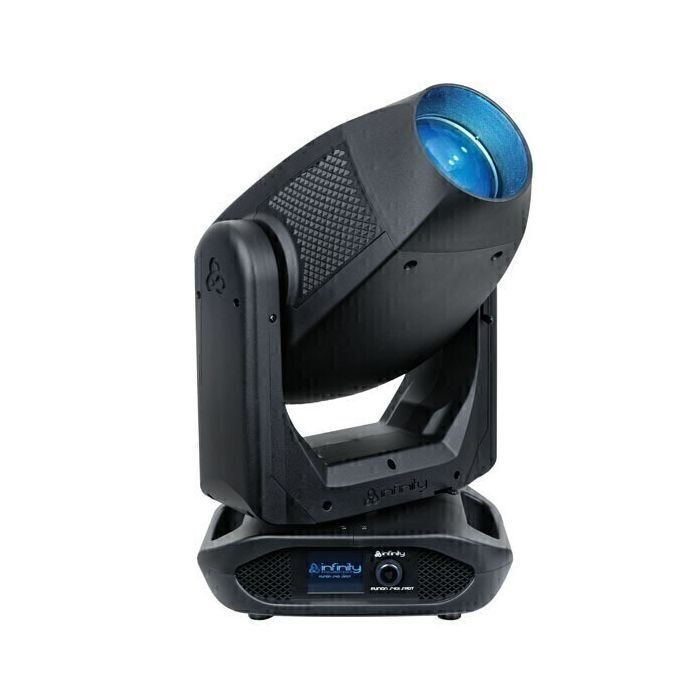

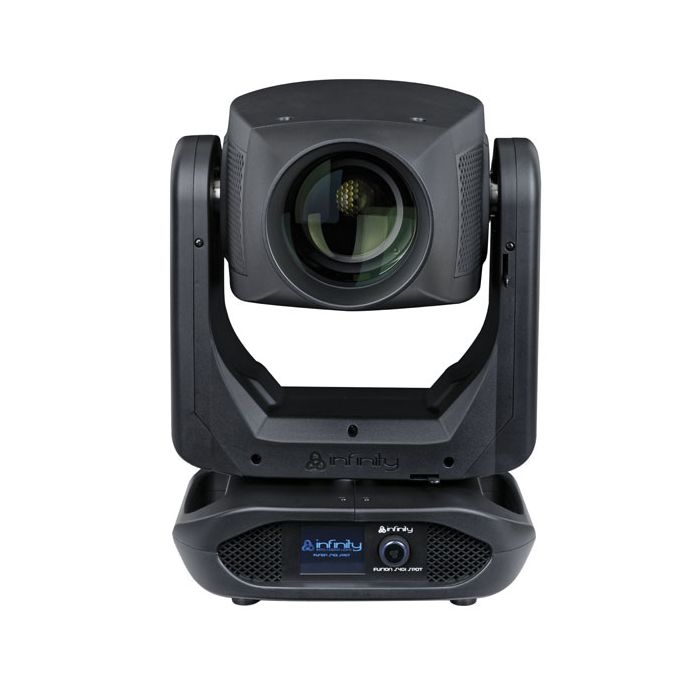

Infinity Furion S401 Spot

Furion Series



1:5 Zoomrange 6 – 30°

16 bit prism & gobo index

CMY + CTO Colourmix system

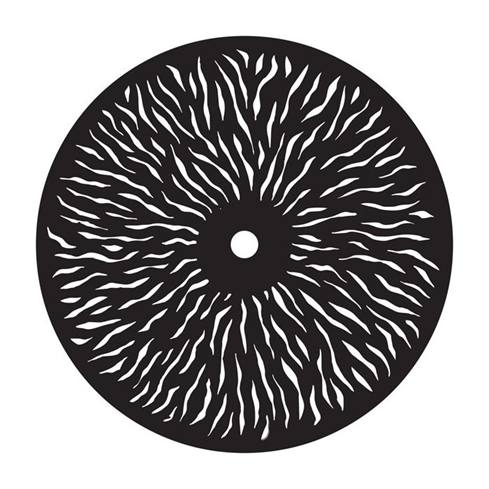

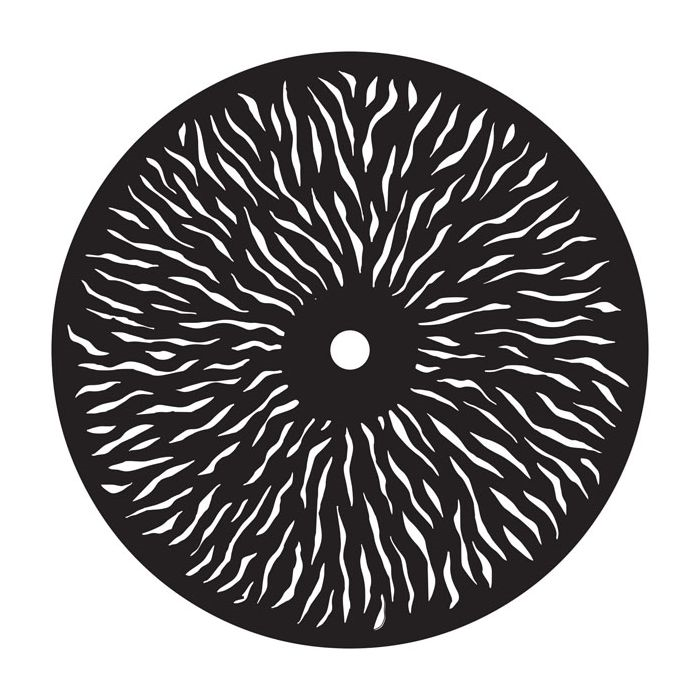

Continuous Bi-rotating Animation Wheel

On-board WDMX by Wireless Solutions Sweden



Download:

41506_MANUAL_GB_V1

Pozovite za cenu

Specifikacije proizvoda:

Opis proizvoda:

The Furion S401 offers a 5:1 ratio zoom range from 6º to 30º. CMY color mixing with CTO incorporated produces the perfect colormix very fast and extremely precise. Take into account the separate colorwheel and you will have a wide array or colors to choose from. User friendly CMY macros are one of the standard features on the Furion S401 and are easy to program. The bi-directional continuous rotating flame-wheel, combined with Digital Motion FX, 6 glass gobos and 7 metal gobos, creates awesome projections or mid –air effects with the only limit being your imagination.

This spot is a true powerhouse which produces a razor-sharp beam with clear visuals. Switching from fast movements to smooth moves is no issue for the Furion S401 Spot.


Specifications


Output
Lux @ 5m 6°: 34442
Lux @ 5m 30°: 2205
Beam Angle: 6° – 30°
Light Source: 350W White LED
Color temperature: 7500K

Electrical
Input Voltage: 100~240VAC, 50/60Hz
Power consumption: 610W max. at full output

Control

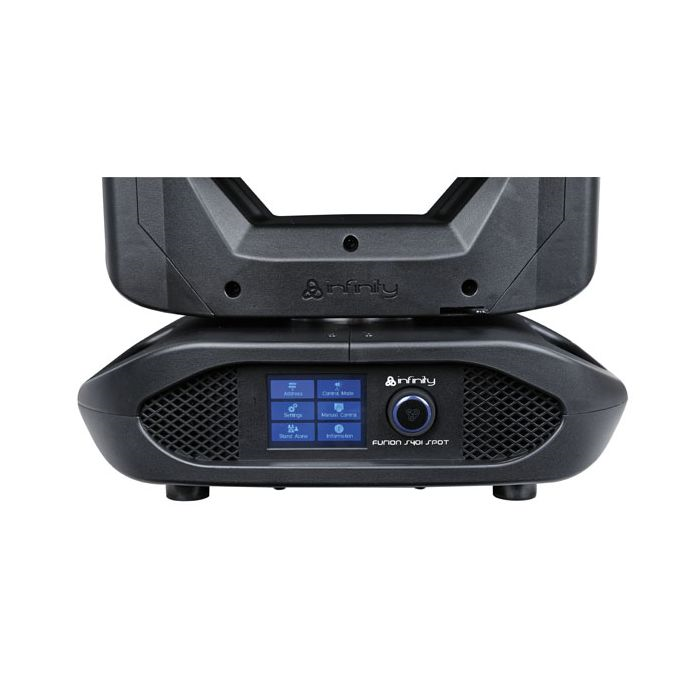

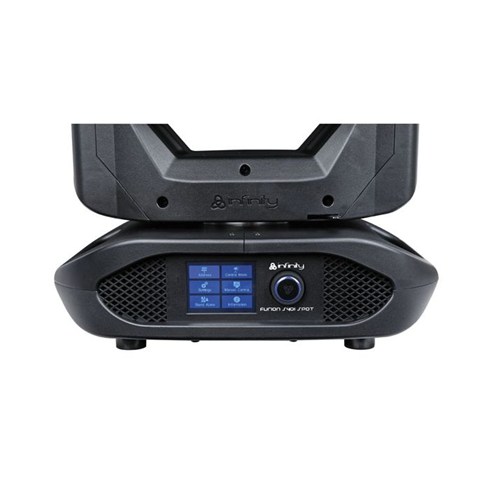

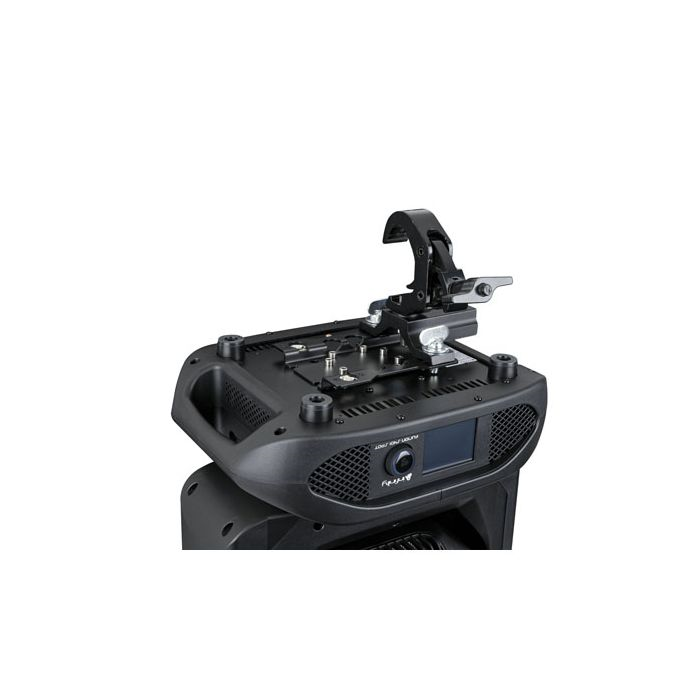

On-Board: Battery powered fixture orientated touch display
Mode: DMX, Stand Alone, Manual
Control Protocol: DMX, WDMX, RDM, sACN, Art-Net
Control Personality: Advanced /Basic /User

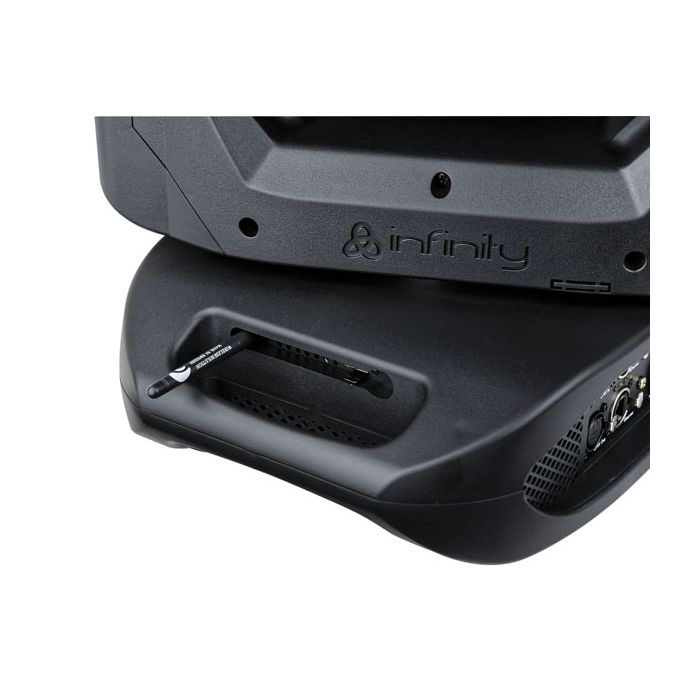

Wireless DMX: Wireless Solutions Sweden

Optical system
Dimmer: 16Bit, 0-100%
Strobe: 0-20Hz
Focus: Motorized, autofocus
Iris: Motorized 0-100%
Zoom: 8 or 16 Bit Motorized
Prism: 3-facet & 5 Linear rotating prism
Frost filter: Yes
Animation: Continuous bi-rotating flame wheel & Digital motion FX

Movement
Pan: 540°
Tilt: 270°
Pan/Tilt resolution: 16 bit
Special: Pan invert depending on fixture orientation

Gobos & Colors

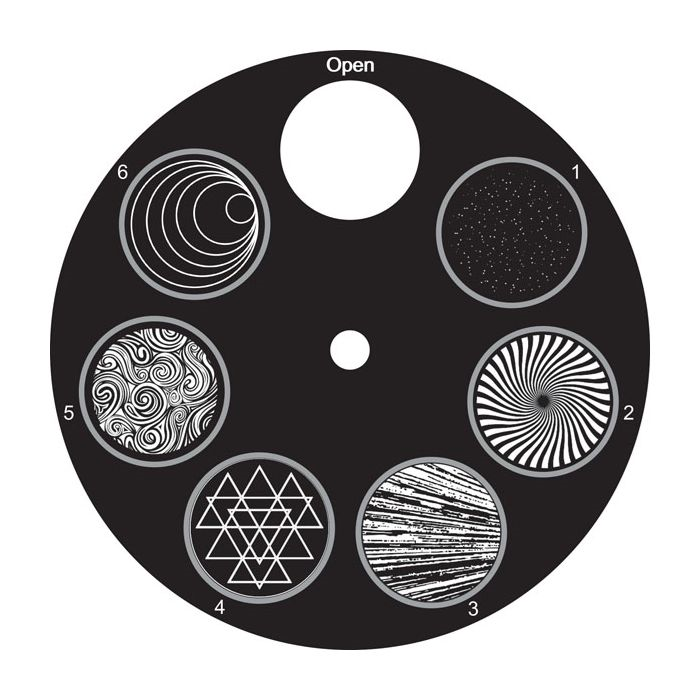

Gobowheel 1: Rotating , 6 Glass
Gobowheel 2: Static, 7 Metal
Gobo functions: Gobo-flow effect,Gobo shake
Gobo Rotation: Bi-directional
Gobo Index: 8 or 16 Bit
Gobo inner diameter: 22.5 mm
Gobo outer diameter: 25.8 mm
Colorwheel: 7 dichroic-filters + white
CMY: 0-100%
CTO: 0-100%
Color functions: Split colors, Rainbow-flow effect, CMY Macros

Physical
Color: Black
Housing: Metal & Flame-retardant plastic

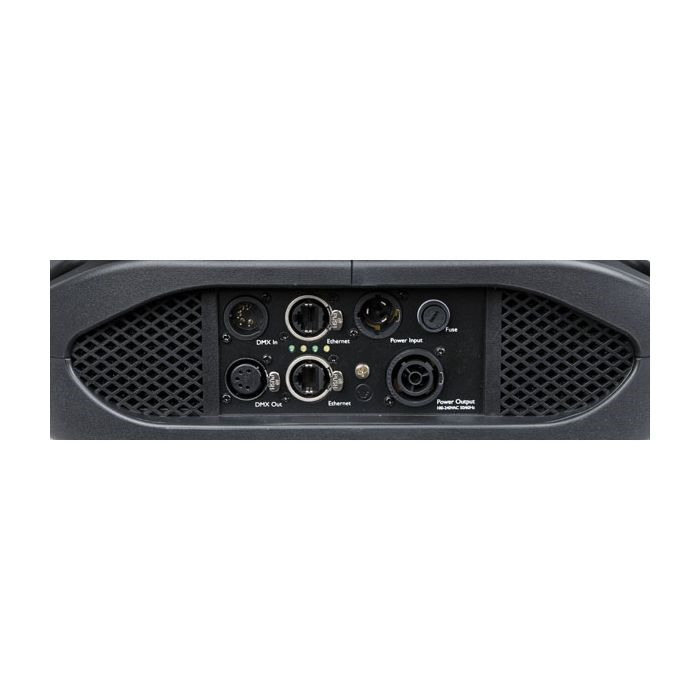

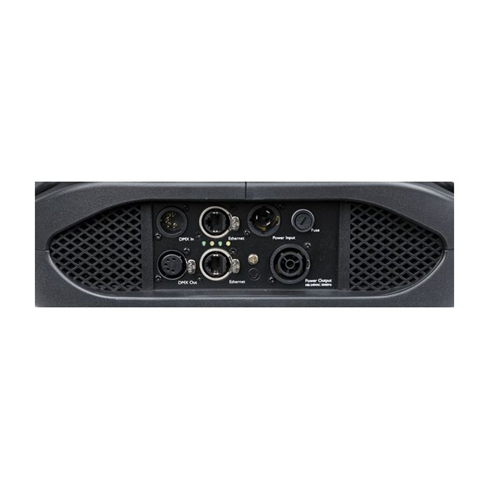

Data Connection: Neutrik XLR 5p & RJ-45 in- & output
Power connection: Neutrik Powercon Thrue1 in- & output
Dimensions (WxDxH): 285 x 390 x 674 mm
Weight: 29Kg

Certification and Safety
Certification: CE
Max. ambient Temp.: 40°C
