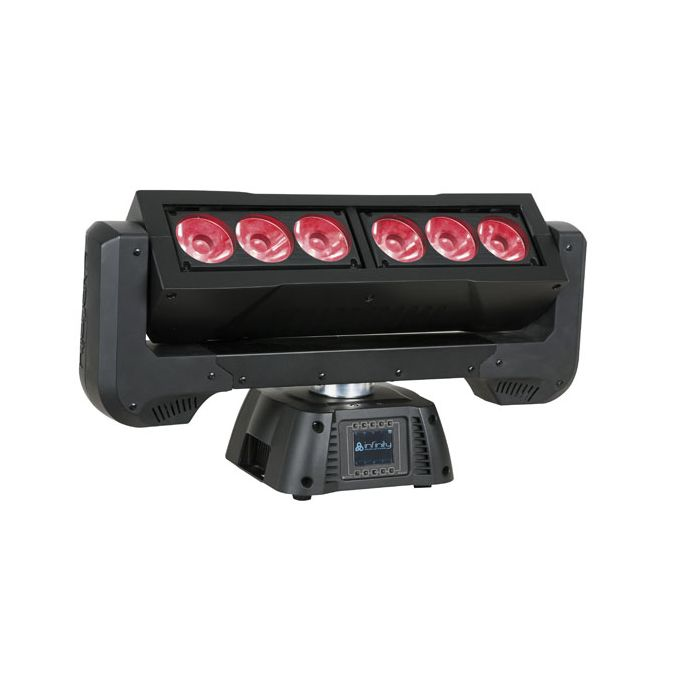

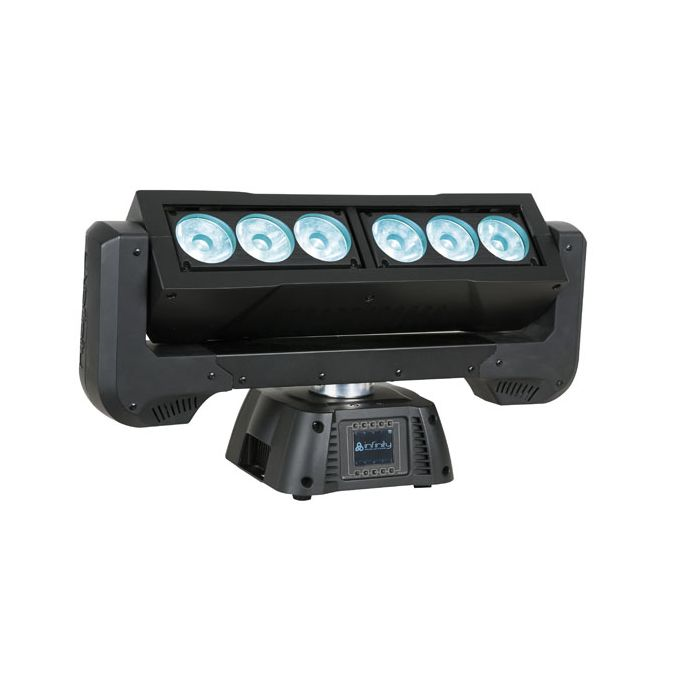

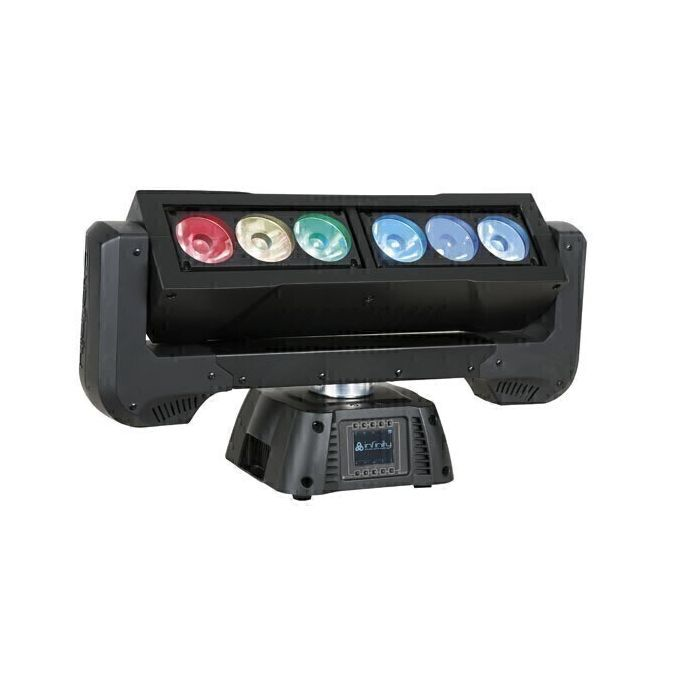

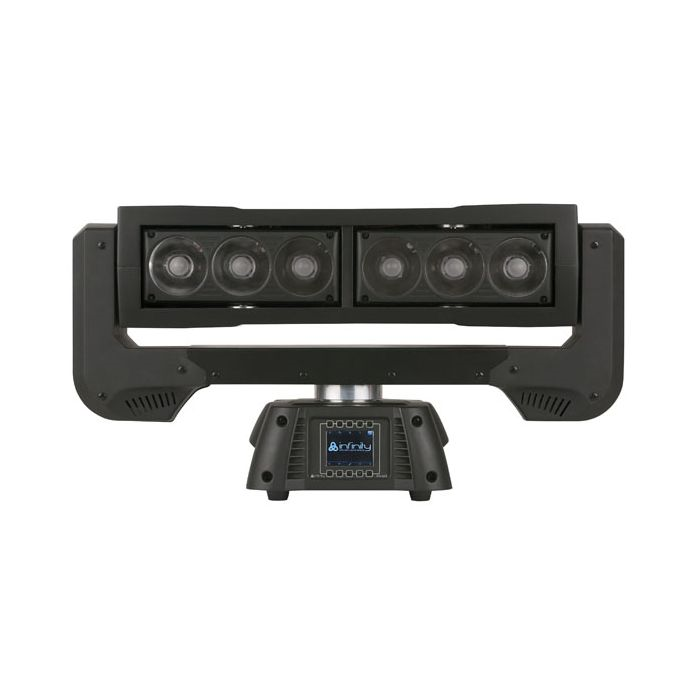

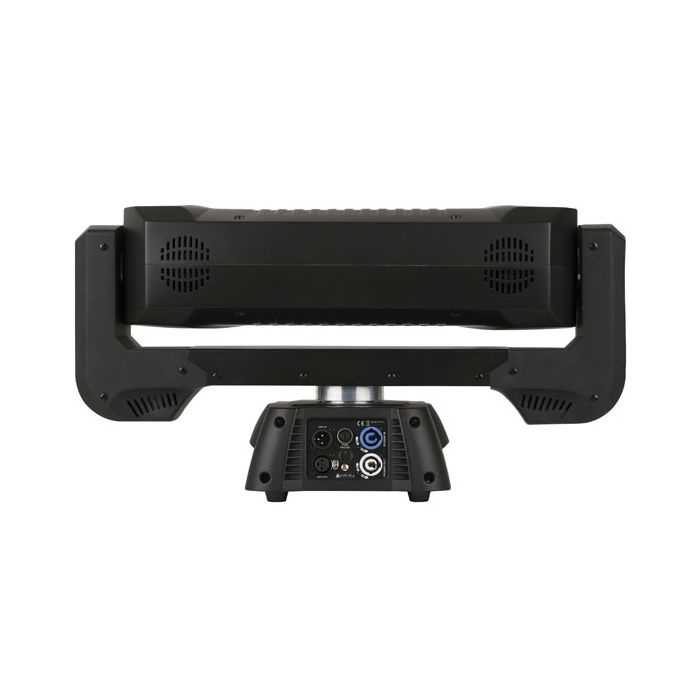

The Infinity iFX-615 is a moving batten with 2 individual moving sections; continuous rotation on both X- and Y-axis, and 2 separate LED sections (3 LEDs each) with a movement of 15° in both directions. With this additional movement in both directions and pixel control, it is possible to create stunning beam and sweep effects. Its six 67mm 4,5° lenses with 15W RGBW LEDs provide the exact same output and optics as the iM-2515 and iB-715. The infinity iFX-615 gives light designers a new tool to lift their show to a higher level.
Movable Light Bar with 2 Individually Movable Sections
-
Continuous rotation on both the X and Y axes
-
2 Separate LED sections (3 LEDs each) with a movement of 15° in both directions
-
Pixel control
-
RGBW and CMY colour mode
-
Battery-operated colour display with gravity sensor
Technical Specs:
-
LED type: 6x Osram Ostar 15 W RGBW 4-in-1
-
Beam angle: 4.5°
-
Light output: 440 lm per pixel
-
Mode: DMX, Auto, Master / Slave
-
Number of DMX channels: 49/25
-
Data connections: XLR 3-pole in / out
-
Input voltage: 100 ~ 240 V AC, 50/60 Hz
-
Power consumption: 250 W at full power
-
Power connections: Power Twist In- Output
-
Colour: Black
-
Dimensions (W x H x D): 600 x 203 x 310 mm
-
Weight: 10 kg
-
Further Information
|
Construction Type
|
Moving-Bar
|
|
DMX control
|
Yes
|
|
Master / Slave
|
Yes
|
|
Remote control
|
not supported
|
|
sound-to-light mode
|
No
|
