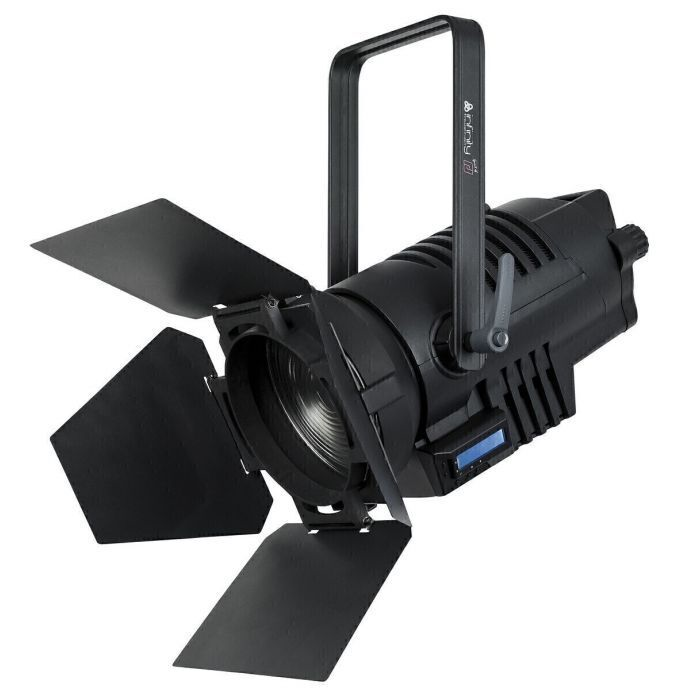

Infinity TF-260C7 Fresnel

7 Colour Fresnel 260W LED

The Infinity Signature TF-260C7 fixture is perfectly equipped for theatre and film applications. Seamlessly choosing the right colour temperature, adding the perfectly calibrated colour out of the virtual scroller, cancelling out rolling shutter and built-in Tungsten simulations. All these features combined turn the TF-260C7 into the only fixture for any TV-application. Lighting larger areas in a specified colour is no issue for the TF-260C7 Fresnel.




200203_Infinity TF-260C7 Noise measurement (2)

200203_TF-260 C7 55-gr High CRI Mode

200203_TF-260 C7 55-gr High Output Mode

Pozovite za cenu

Specifikacije proizvoda:

Opis proizvoda:

  • 260W Lumiled 7 colour LED engine using custom designed array
  • CRI > 96 Consistently on full CCT range
  • LED Colour Linearity Compensation
  • LED Colour Temperature Drift Compensation (on all LEDs)
  • Optics Colour Shift compensation
  • Manual and motorized 15°-50° zoom control
  • Colour wheel with 64 spectrum matching Filter gels
  • 2000 – 8000K Seamless CCT channel
  • RGB, CMY and HSI Colour control
  • 16 bit Intelligent high resolution virtual dimming
  • Tungsten mode with natural colour drift & timing simulations
  • Flicker-Free with selectable PWM by DMX
  • 1CH DMX mode for conventional replacement
  • Input voltage: 100-240V AC, 50/60Hz
  • Power consumption: 280W
  • Power factor: 0,97
  • Light source: 260W Lumiled 7-color LED using custom designed array
  • Light output: 3500lm
  • CRI: Consistently >96 (High CRI Mode)
  • Color temperature: 2000K-8000K
  • Beam angles: 15°–50°
  • Dimmer: 0–100 %
  • Strobe: 0–20 Hz
  • Dimmer curves: Linear, Gamma 2.0, Gamma 2.2, S-curve
  • DMX channels: 1, 6, 7, 11, 11, 11 or 21 channels
  • Ambient temperature: 0°-40°C (operating)
  • Startup temperature: -10°-45°C
  • IP rating: IP20, indoor use only
  • Fan mode: Silent, Auto, Full
  • DMX-control: via standard DMX/RDM controller
  • Control: DMX-512, Manual control, RDM
  • Housing: Black aluminum, sheet metal, molded engineering grade plastics

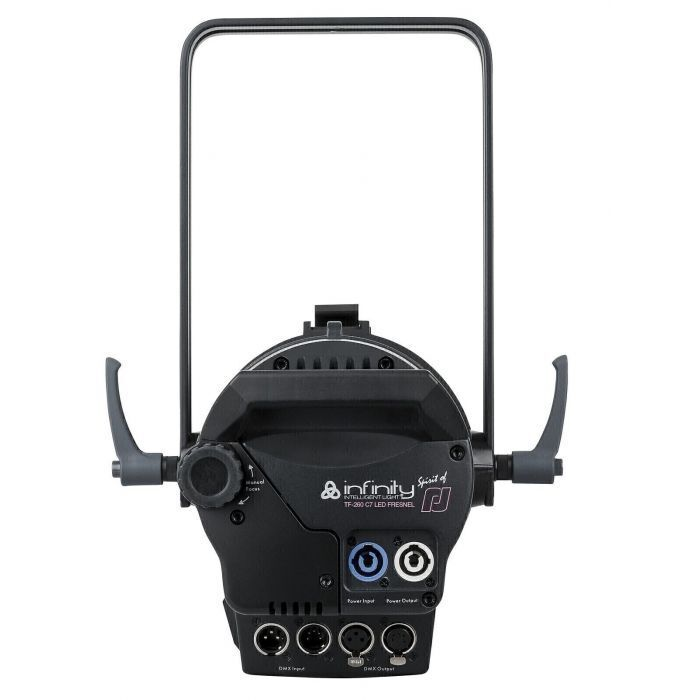

  • Connections: Neutrik PowerCON (IN/OUT), Neutrik 3-pin XLR data (IN/OUT), Neutrik 5-pin XLR data (IN/OUT)
  • Dimensions: 474 x 322 x 457 mm (LxWxH) (incl. bracket)
  • Weight: 8,66 kg
