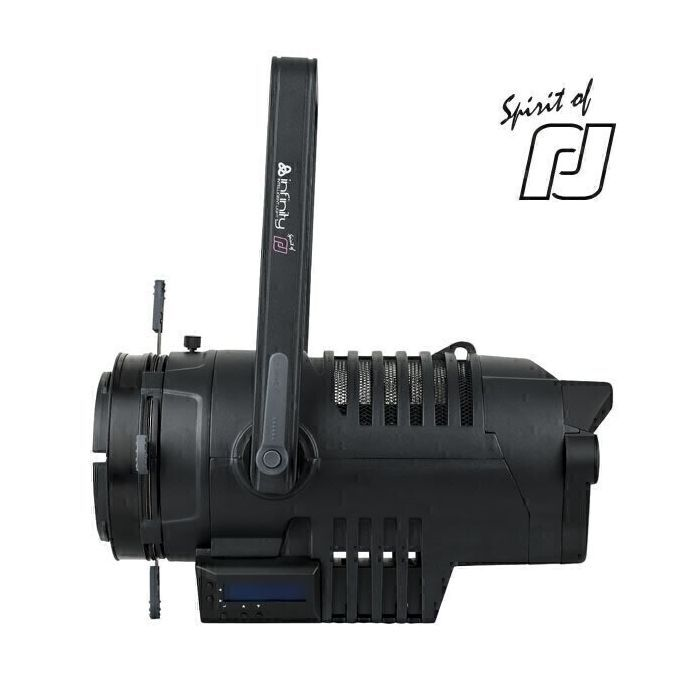

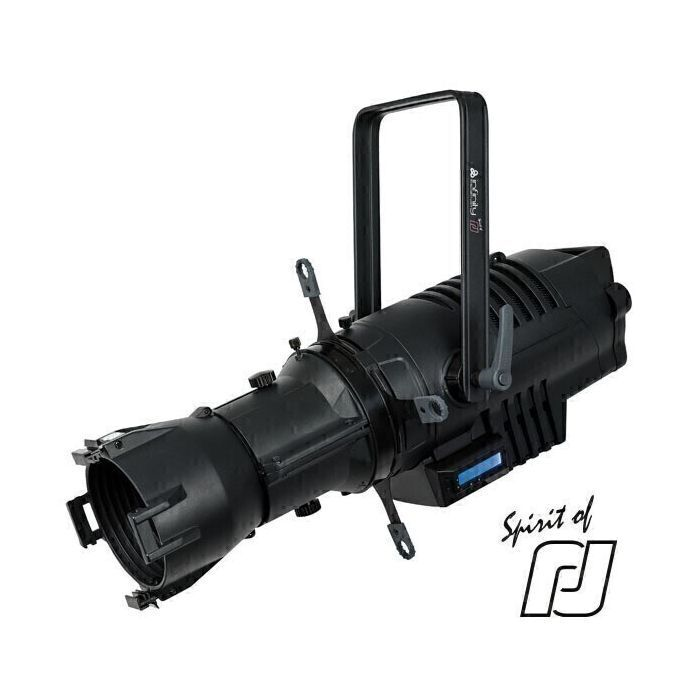

Infinity TS-300 Profile Engine

3200K Body without lens



Delivers the performance of 750W Tungsten halogen unit

300W, 3200K Custom designed Lumiled Engine

CRI > 96 Consistently

Consistent colour temperature regardless of intensity

16 bit Intelligent high resolution virtual dimming



Download:

200001_MANUAL_GB_V1

Pozovite za cenu

Specifikacije proizvoda:

Opis proizvoda:

The new standard for Theatre illumination, the Infinity Signature series. The tools you have always wanted to create beautiful, energy efficient lighting for your theatre, church, studio or school. These luminaires utilise the latest LED technology with European software while having operational and lens options familiar to any entertainment technician. To create this new range of theatre lights, we have found an excellent partner in Robert Juliat

Looking for fitting LED-based answers to conventional Tungsten challenges was more than enough motivation for Infinity to design the Signature series. The TS-300 Profile Engine is one of those answers. Built around a powerful, reliable 300W Lumiled LED engine with a colour temperature of 3200K and a high, consistent CRI of more than 96 it will match conventional 750W Tungsten fixtures perfectly. Various calibration systems inside the intelligent, intuitive software make sure that the TS-300 will fit in seamlessly in Tungsten setups. Very well equipped for theatre or TV-applications where a steady output, high quality of light and silent fan operation are not only required but actual necessities. The Infinity Signature TS-300 has the complete package.

Specifications:

Light Source Type: LED
Light Source Quantity: 1
Light Source Power: 300 W
Led Colour Type: WW
Lumen Total: 8300 lm
CRI: 96
CCT Maximum: 3200 K
Control Mode: DMX / Manual
DMX Channels: 1 / 2 / 4
Protocols: DMX / RDM
Display: LCD
Fanmode: Yes
Dim Curve: Lineair / Square / S-Curve
Dimmer Resolution: 16 bit
Dimmer: 0-100%
Strobe: 0-20Hz
Power Supply: 100-240VAC 50-60Hz
Power Consumption: 300 W

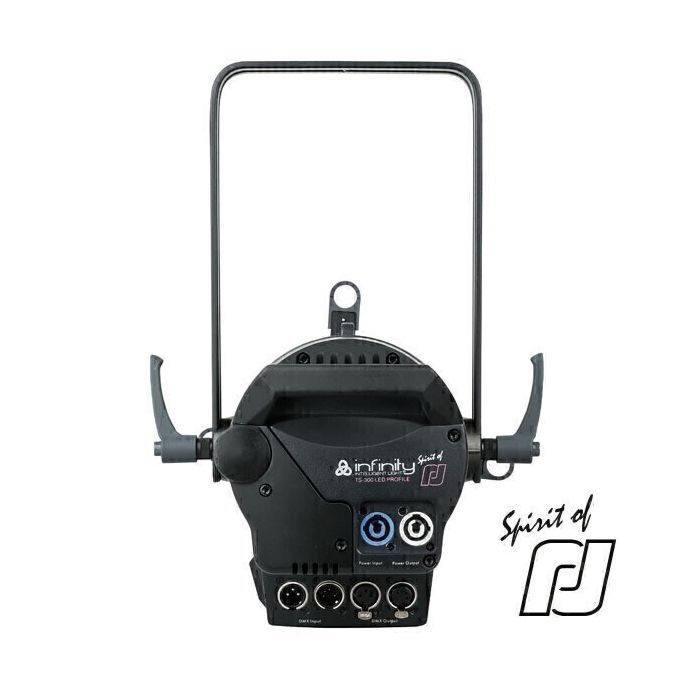

Power Connector in: PowerCON Blue
Power Connector out: PowerCON Grey
DMX Connector: XLR 3P In/Out / XLR 5P In/Out
Length (mm): 468 mm
Height (mm): 457 mm
Width (mm): 323 mm
Weight: 8,4 kg
IP Rating: IP20(indoor use only)
Housing: Aluminium
Colour: Black
Cooling: Axial fan
Maximum Ambient Temperature: 40 °C
Minimum Operating Temperature: -10 °C
Reference Standard: CE
