Chimp G2, the Next Stage: the Infinity Chimp G2 light controllers combine user-friendly design with true functionality: the Chimp 100.G2 with 2 DMX universes or the 300.G2 with 4 DMX universes and integrated 22” touchscreen. Both have the same principle: to provide the necessary tools for every light-designer and have the freedom to create the show they want. Every feature, effect and application has been engineered specifically to support this very principle. Although the Chimp 300.G2 has extended universe, fixture and memory capacity, it remains compatible with the Chimp 100.G2. Software, features, effects and possibilities are exactly the same. Programmed and saved shows on either Chimp unit are interchangeable and will run smoothly accordingly. This feature alone adds a new dimension to the compatibility of the various Chimp units. To name a few of the versatile features each Chimp possesses: every Chimp unit is equipped with the extensive AtlaBase fixture library, giving access to more than 16.000 different fixtures. With every free Chimp software upgrade the AtlaBase library is updated automatically. The Effects Engine can be applied to any available fixture-attribute easily. This helps you to shape the show according to your creativity. You can use Magic Sheets with which you can visualize your entire setup in 2D. Always get the right colour with an accurate colour picker, RGB / CMY Control or from the built-in Lee, Rosco and Apollo filter libraries. The next stage Chimp controllers provide all the tools necessary to create the perfect show. All you need to do is, is to put these tools to good use. The Infinity Chimp G2 series is available in setups from single units to complete tourpacks: · 55004 Chimp 100.G2 single unit · 55004SET01 Chimp 100.G2 Tourpack incl. touchscreen and flightcase · 55031 Chimp 100.G2 & Wing Tourpack incl. 2 touchscreens, Banana Wing and flightcase · 55014 Chimp 300.G2 single unit · 55014SET01 Chimp 300.G2 Tourpack incl. flightcase · 55020 Banana Wing.

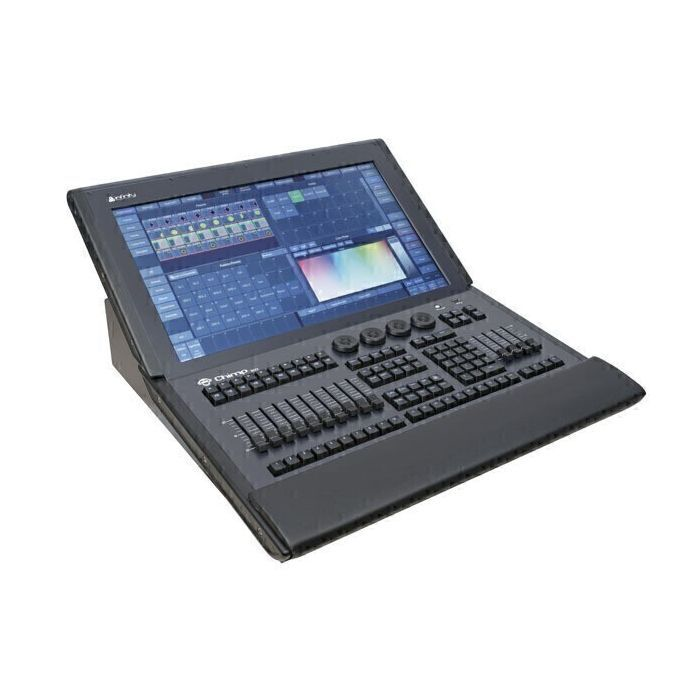

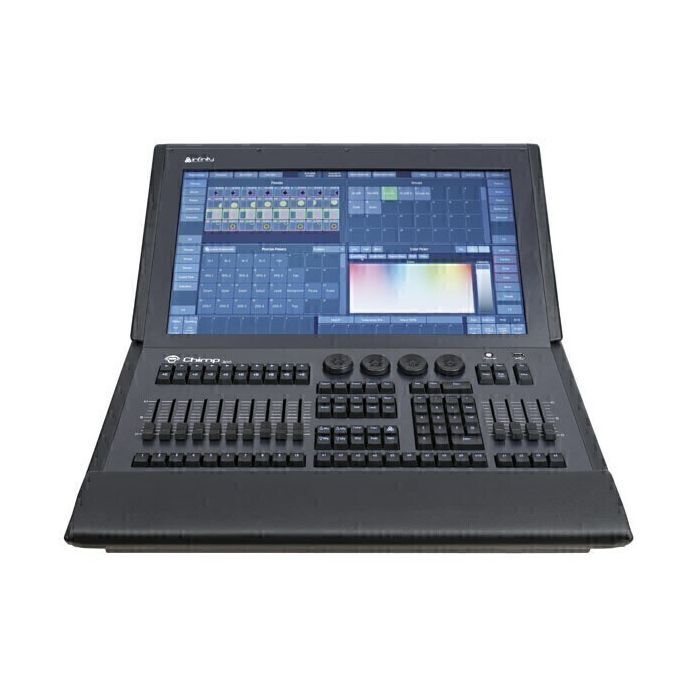

Stand-Alone Lighting Control Console with 22" Touch Screen
-

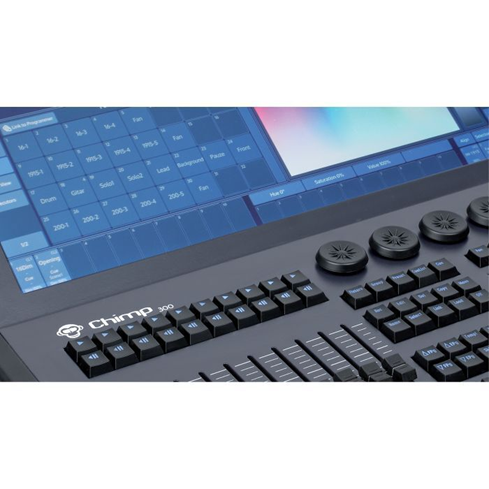

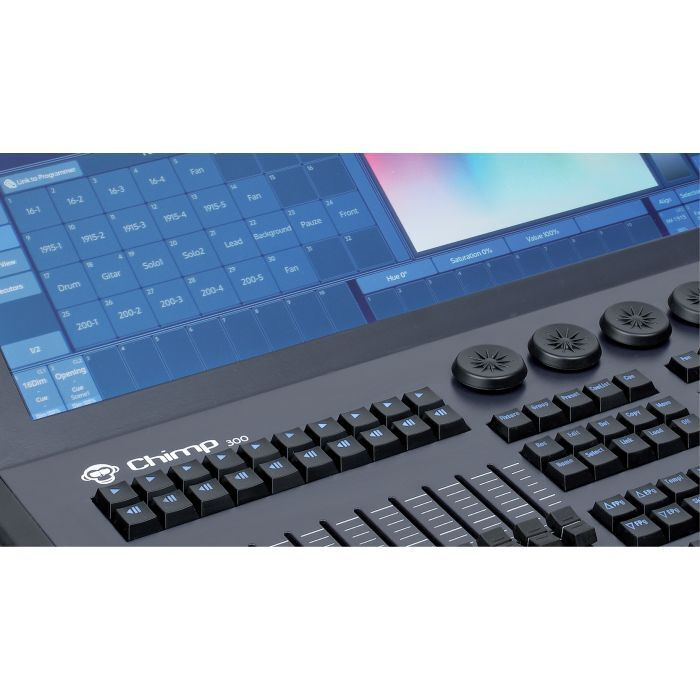

10 Playback faders with go, pause and flash buttons and 10 executor / flash buttons on multiple pages
-
Number pad, speed-dial keys and four encoders
-
Four customizable master faders
-
User definable display layout
-
Effects engine
-
Fan function for all attributes
-
Cue lists
-
Gobo and colour picker
-
Colour selection with filters from Lee, Rosco and Apollo Filters
-
Group and preset function
-
Magic sheets for 2D representation of the light setup
-
Integrated Wireless Solution DMX Transmitter
-
4 DMX universes with 2048 DMX channels
-
300 Fixtures
-
10000 Memory locations
-
600 Memory blocks
-
100 Groups
-
9 x 100 presets (positions, color, beam, effects, etc.)
-
Tracking and non-tracking options
-
AtlaBase Fixture Libary with over 16000 fixtures
-

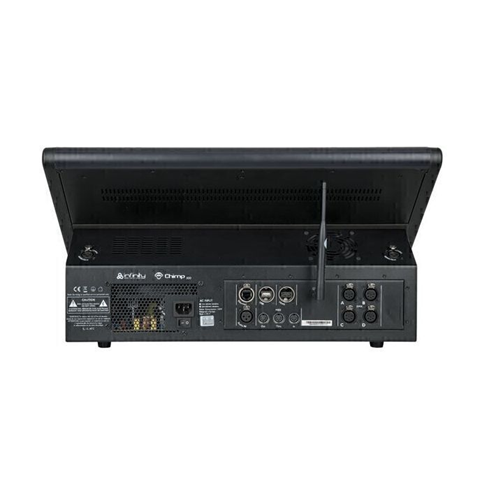

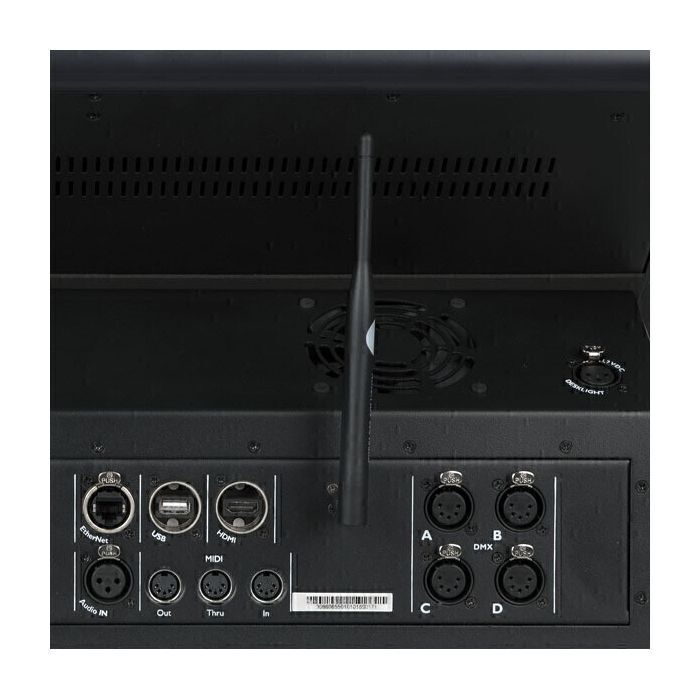

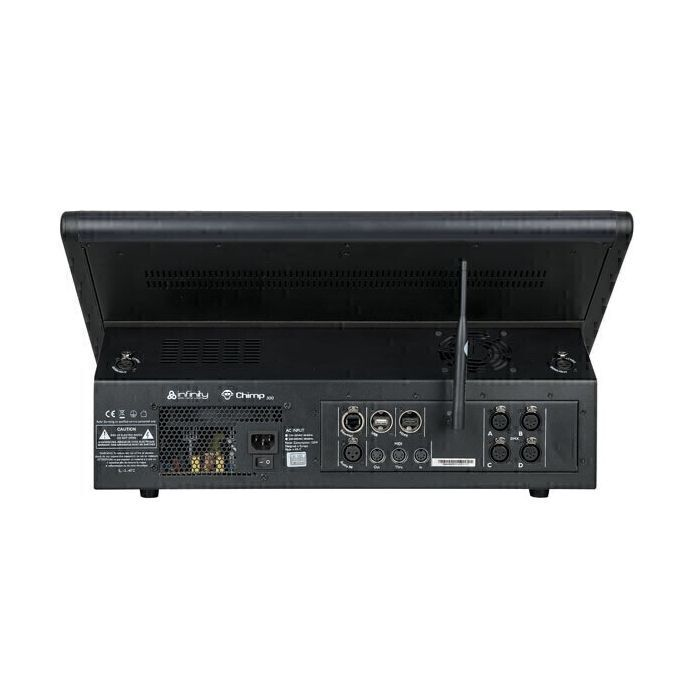

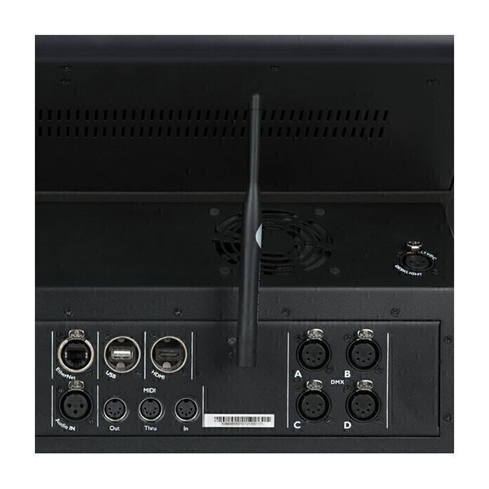

DMX input and output: 4x XLR 5-pin female (opto-isolated and RDM compatible)
-
Ethernet (RJ45) for ArtNet
-
1 x HDMI monitor output
-
Midi input
-
Output and thru: 5-pin DIN connector
-
Audio / SMPTE / LTC input: XLR 3-pin female
-
Power input: IEC
-
Connection for desk lamp: 2x XLR 3-pin female (dimmable)
-
2 x USB-A ports
-
Dimensions: 647 x 575 x 279 mm
-
Weight: 18 kg
-
Includes dustcover and power cord
