IC Audio DL 06-165/T-EN54

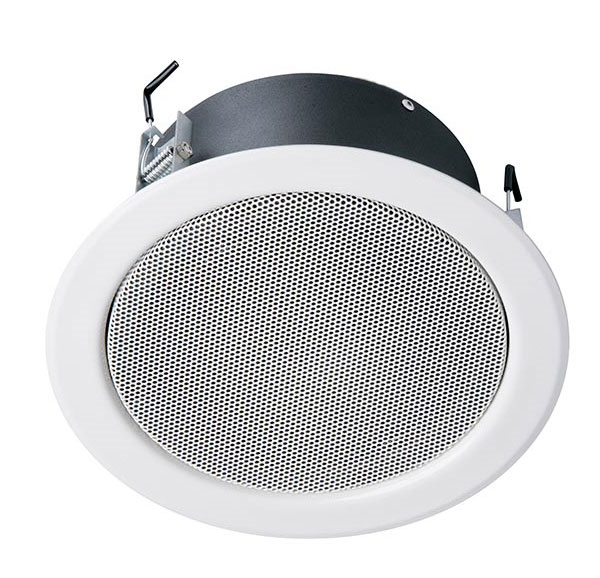

Ceiling speaker with metal firedome for voice alarm applications, certified EN 54-24, suitable for voice announcements and background music with excellent sound quality in buildings.


Pozovite za cenu

Specifikacije proizvoda:

Opis proizvoda:

The 6W powered speaker is equipped with a 165mm full-range loudspeaker chassis and a 100V transformer with 3 power adjustments. The powder coated metal similar in RAL 9010 guarantees long-term stability. For additional reliability, a 2 pin-ceramic block, a thermal fuse is provided and the speaker chassis is impregnated against wetness.

The speaker is also secured with protection class IP 55 against the security risks of environmental influences. Quick and easy mounting with spring clamps and short tension distance. The connecting cables can be supplied by rubber grommets in the firedome.

The speaker is also compliant with the British Standard BS 5839, Part 8.
Special paint of the speaker in 4-digit RAL- or NCS-colour available at extra cost.
The firedome is included in the delivery.

This speaker is suitable for a ceiling strength of about 2 – 45 mm. Our specification is primarily related to solid ceilings, for ceilings with soft materials a higher ceiling thicknesses could be necessary. In addition, stronger cables and other fittings may also result in changes of the appropriate setup. With regard to the variety of materials and manufacturers, we recommend to build in a sample of the speaker to match the requirements accurately.


Product: DL 06-165/T-EN54
Power: 6/3/1,5 W
Impedance (100V): 1667/3333/6667 ohm
Information Frequency Range: 404 - 10.100 Hz
Information Frequency Response:    80 - 24.000 Hz
Information SPL 1W/1m, peak: 102,5 dB
Information SPL , 1W/4m, peak: 90,5 dB
Information SPL Pmax/4m, peak: 98,2 dB
SPL, rated noise power / 4m: 89,0 dB
Information Sensitivity EN54-24, 1W/4m:    81,0 dB
Information Sensitivity EN54-24, 1W/1m:    93,0 dB
Dispersion -6dB, 500Hz:    h/v 180°
Dispersion -6dB, 1KHz: h/v 175°
Dispersion -6dB, 2KHz: h/v 100°
Dispersion -6dB, 4KHz: h/v 50°
Connector: 2-pin ceramic block
Maximum cable cross section: 8mm²
Max. cable cross section loop: 2x2mm²
Temperature range: -10/+55C°
Dimensions: 220x109 mm
Type A/B: A
IP Rating: IP55
Weight (net): 1,36 kg
Colour: RAL 9010
Mounting: Quick fit mounting
Ceiling Cut-out: 198 mm
Certificate Number: 1438-CPR-0233
