IC Audio DL-K 16-130/T-EN54

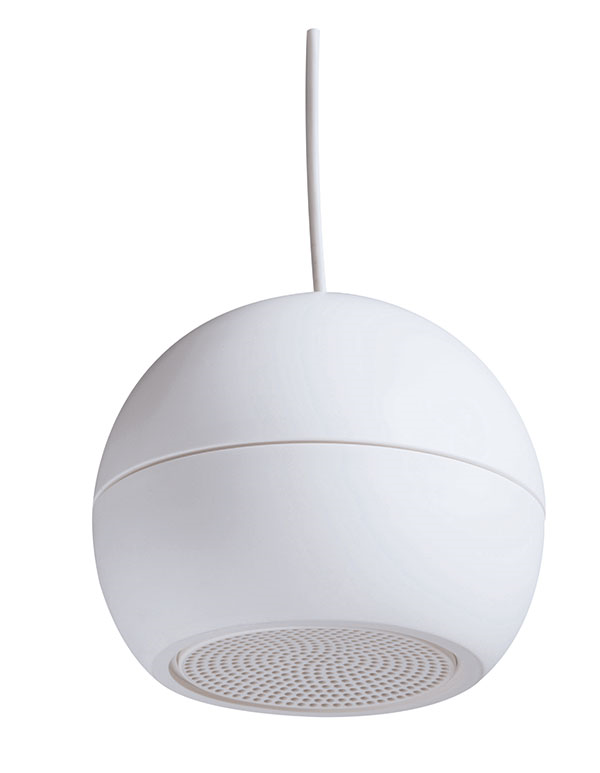

Compact sphere speaker for voice alarm applications, certified EN 54-24, suitable for voice announcements and background music with excellent sound quality in buildings.


Pozovite za cenu

Specifikacije proizvoda:

Opis proizvoda:

The 16W powered speaker is equipped with a 130mm full-range loudspeaker chassis and a 100V transformer with 3 power adjustments. The sturdy, UV-resistant ABS-housing (UL 94 HB) in RAL 9010 guarantees long-term stability. For additional reliability, a ceramic block, a thermal fuse is provided and the speaker chassis is impregnated against wetness.

The speaker is also secured with protection class IP 35 against the security risks of environmental influences.

The speaker is also compliant with the British Standard BS 5839, Part 8.

The connection will be done with a 4,5 m long, 4-pin cable. Quick and easy mounting with a mounting hook.

Product: DL-K 16-130/T-EN54
Power: 16/8/4 W
Impedance (100V): 625/1250/2500 ohm
Information Frequency Range: 130 - 13.300 Hz
Information Frequency Response: 130 - 23.500 Hz
Information SPL 1W/1m, peak: 89,9 dB
Information SPL , 1W/4m, peak: 77,9 dB
Information SPL Pmax/4m, peak: 89,9 dB
SPL, rated noise power / 4m: 86,5 dB
Information Sensitivity EN54-24, 1W/4m: 73,0 dB
Information Sensitivity EN54-24, 1W/1m: 85,0 dB
Dispersion -6dB, 500Hz: h/v 360°
Dispersion -6dB, 1KHz: h/v 196°
Dispersion -6dB, 2KHz: h/v 132°
Dispersion -6dB, 4KHz: h/v 171°
Connector: ceramic block
Maximum cable cross section: 8mm²
Max. cable cross section loop: 2x2mm²
Temperature range: -10/+55C°
Dimensions: 185x157 mm
Type A/B: A
IP Rating: IP35
Weight (net): 1,50 kg
Colour: RAL 9010
Mounting: Mounting hook
Certificate Number: 1438-CPD-0325
