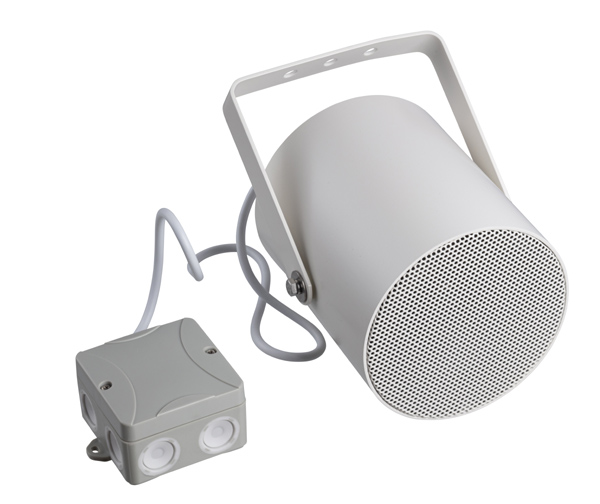

The 20W powered speaker is equipped with a 130mm full-range loudspeaker and a 100V line transformer with 4 power adjustments. A robust powder coated aluminum housing in RAL 9010, and a solid aluminium mounting bracket ensures the permanent installation of this speaker. For additional reliability, a 2 pin-ceramic block and a thermal fuse is provided in a junction box and the speaker chassis is impregnated against wetness.
The speaker is also secured with the high protection class IP 65 against the risks of environmental influences. The speaker is compliant with the British Standard BS 5839, Part 8.
Optionally available is a mast bracket (MB) for about 200mm mast diameter.
|
Artikel Nr.
|
20102185
|
|
Produkt
|
DA-S 20-130/T-EN54
|
|
Power
|
20/15/10/5 W
|
|
Impedance (100V)
|
500/667/1000/2000 ohm
|
|
Frequency Range
|
800 - 16.700 Hz
|
|
Frequency Response
|
150 - 20.000 Hz
|
|
SPL 1W/1m, peak
|
103,2 dB
|
|
SPL , 1W/4m, peak
|
91,2 dB
|
|
SPL Pmax/4m, peak
|
104,2 dB
|
|
SPL, rated noise power / 4m
|
93,0 dB
|
|
Sensitivity EN54-24, 1W/4m
|
80,3 dB
|
|
Sensitivity EN54-24, 1W/1m
|
92,3 dB
|
|
Dispersion -6dB, 500Hz
|
h/v 360°
|
|
Dispersion -6dB, 1KHz
|
h/v 210°
|
|
Dispersion -6dB, 2KHz
|
h/v 105°
|
|
Dispersion -6dB, 4KHz
|
h/v 55°
|
|
Connector
|
2-pin ceramic block
|
|
Maximum cable cross section
|
8mm²
|
|
Max. cable cross section loop
|
2x2mm²
|
|
Temperature range
|
-25 / +70 C°
|
|
Dimensions
|
140x163 mm
|
|
Type A/B
|
B
|
|
IP Rating
|
IP65
|
|
Weight (net)
|
2,52 kg
|
|
Colour
|
RAL 9010
|
|
Mounting
|
Mounting bracket
|
|
Packing Unit
|
8
|
|
Ref. Nr.
|
002-13
|
|
ID-Code
|
SAA-LS02
|
|
Certificate Number
|
1438-CPR-0234
|
|
CE year
|
14
|
