IC Audio DK 10/T-EN54-PG

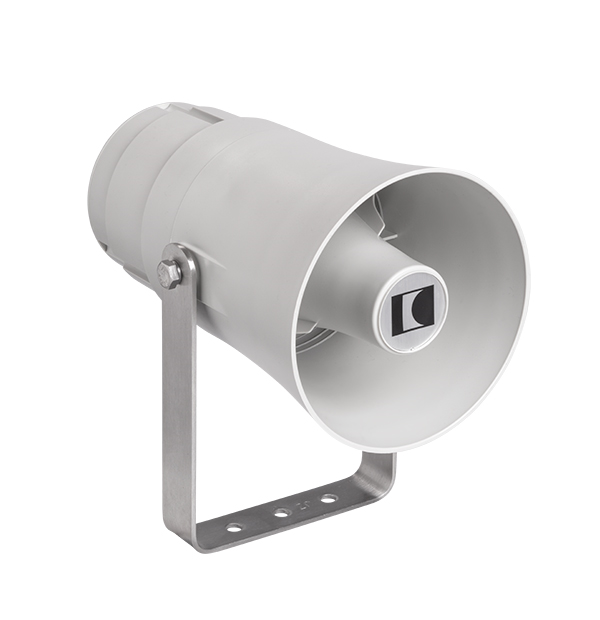

Horn speaker
Weather-proof horn speaker for voice alarm applications, certified according to EN 54-24, suitable for industrial indoor and outdoor use with high sound pressure level.



Download:

DK_10T-EN54-PG_en

Declaration_of_Performance_Horn_Speaker

Pozovite za cenu

Specifikacije proizvoda:

Opis proizvoda:

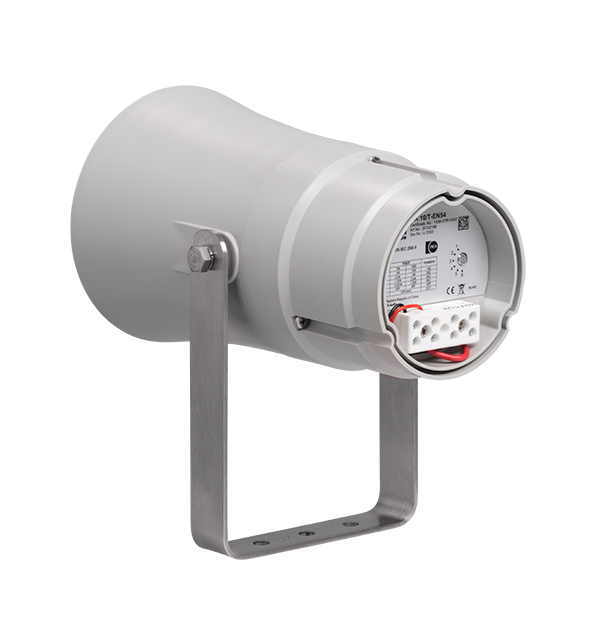

The 10W powered speaker is equipped with a 100V line transformer with 4 power adjustments, also low-impedance operation (20 ohm) is possible. The impact-resistant ABS housing UL94V0 in RAL 7035 guarantees long-term stability. For additional reliability, a ceramic block and a thermal fuse is provided.

The speaker is also secured with the high protection class IP 66 against the security risks of environmental influences. The speaker is compliant with the British Standard BS 5839, Part 8.

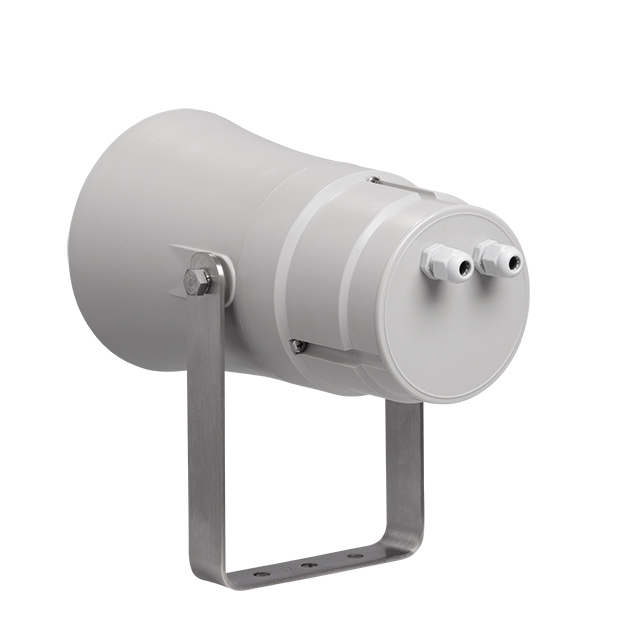

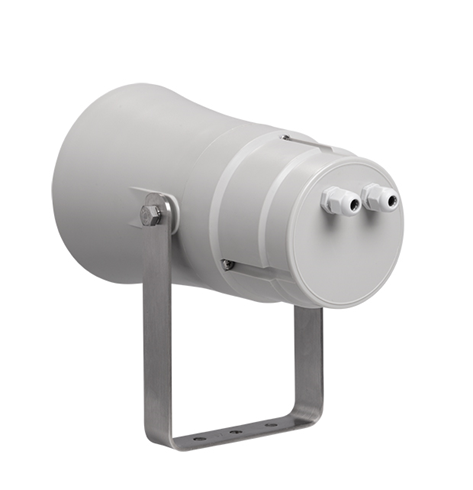

The PG11 cable glands on the back of the speaker allow quick and easy connection.

Included is a U-shaped, stainless steel universal mount for flexible installation. Optionally available is a mast bracket (MB) for about 90 - 200mm mast diameter.

To operate the product according EN 54-24, an equalizer has to be used as described in the user manual.

Artikel Nr.

20205823-PG

Produkt

DK 10/T-EN54-PG

Power

10/5/2,5/1,25 (20) W

Impedance (100V)

1000/2000/4000/8000 ohm

 Frequency Range

569 - 7.000 Hz

 Frequency Response

370 - 13.600 Hz

 SPL 1W/1m, peak

106,7 dB

 SPL , 1W/4m, peak

94,7 dB

 SPL Pmax/4m, peak

104,7 dB

SPL, rated noise power / 4m

91,0 dB

 Sensitivity EN54-24, 1W/4m

83,0 dB

 Sensitivity EN54-24, 1W/1m

95,0 dB

Dispersion -6dB, 500Hz

h/v 360°

Dispersion -6dB, 1KHz

h/v 360°

Dispersion -6dB, 2KHz

h/v 105°

Dispersion -6dB, 4KHz

h/v 50°

Connector

ceramic block

Maximum cable cross section

8mm²

Max. cable cross section loop

2x2mm²

Temperature range

-25 / +70 C°

Dimensions

142x256 mm

Type A/B

B

IP Rating

IP66

Weight (net)

1,9 kg

Colour

RAL 7035

Mounting

Mounting bracket

Packing Unit

8

Ref. Nr.

003-13

ID-Code

SAA-LS03

Certificate Number

1438-CPR-0242

CE year

20

EN54 Horn Speaker measurements are done with the use of an equalizer.
