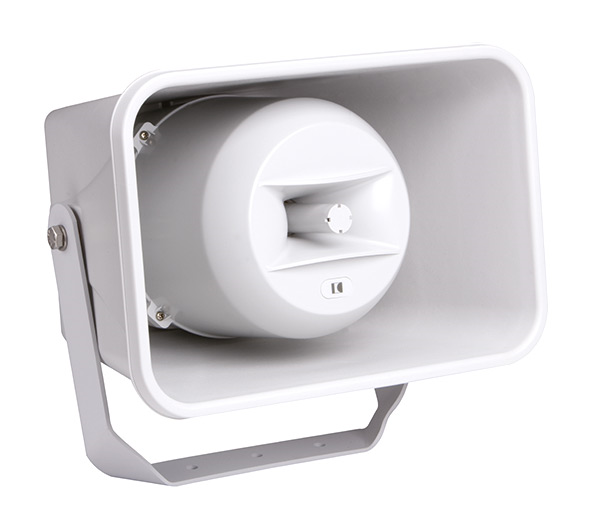

The 30W powered 2-way speaker is equipped with a 100V line transformer with 4 power adjustments. The impact-resistant ABS housing in RAL 7035 guarantees long-term stability. For additional reliability, a ceramic block and a thermal fuse is provided.
The speaker is also secured with the high protection class IP 66 against the security risks of environmental influences. The speaker is compliant with the British Standard BS 5839, Part 8.
Mounting by stainless aluminum universal mount. Optionally available is a mast bracket (MB) for about 90 - 200mm mast diameter.
|
Artikel Nr.
|
20102232
|
|
Produkt
|
DK-MH 30/T plus-EN54
|
|
Power
|
30/15/7,5/3,75 W
|
|
Impedance (100V)
|
333/667/1333/2667 ohm
|
|
Frequency Range
|
237 - 21.100 Hz
|
|
Frequency Response
|
65 - 24.000 Hz
|
|
SPL 1W/1m, peak
|
101,8 dB
|
|
SPL , 1W/4m, peak
|
89,8 dB
|
|
SPL Pmax/4m, peak
|
104,5 dB
|
|
SPL, rated noise power / 4m
|
100,0 dB
|
|
Sensitivity EN54-24, 1W/4m
|
86,0 dB
|
|
Sensitivity EN54-24, 1W/1m
|
98,1 dB
|
|
Dispersion -6dB, 500Hz
|
190° (h)
205° (v)
|
|
Dispersion -6dB, 1KHz
|
70 °(h)
90° (v)
|
|
Dispersion -6dB, 2KHz
|
85° (h)
90° (v)
|
|
Dispersion -6dB, 4KHz
|
80° (h)
110° (v)
|
|
Connector
|
ceramic block
|
|
Maximum cable cross section
|
8mm²
|
|
Max. cable cross section loop
|
2x2mm²
|
|
Temperature range
|
-25 / +70 C°
|
|
Dimensions
|
370x255x291 mm
|
|
Type A/B
|
B
|
|
IP Rating
|
IP66
|
|
Weight (net)
|
4,9kg
|
|
Colour
|
RAL 7035
|
|
Mounting
|
Mounting bracket
|
|
Packing Unit
|
4
|
|
Ref. Nr.
|
003-13
|
|
ID-Code
|
SAA-LS03
|
|
Certificate Number
|
1438-CPR-0242
|
|
EN54 Horn Speaker measurements are done with the use of an equalizer.
|
