Kod proizvoda:2421

DAP Audio WMS4-B

Nazidni dvosistemski zvučnik 4" , 20W RMS/ 80W peak, D3830




Specifikacije proizvoda:

Opis proizvoda:

20 W RMS/80 W peak - 16 Ohm - ABS

Easy installation

2-way system for clean full-range sound

Horizontal and vertical positioning

Protected against dust ingress and downpour (IP54)

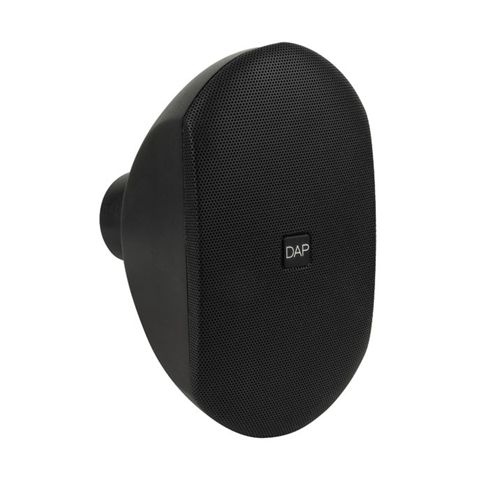

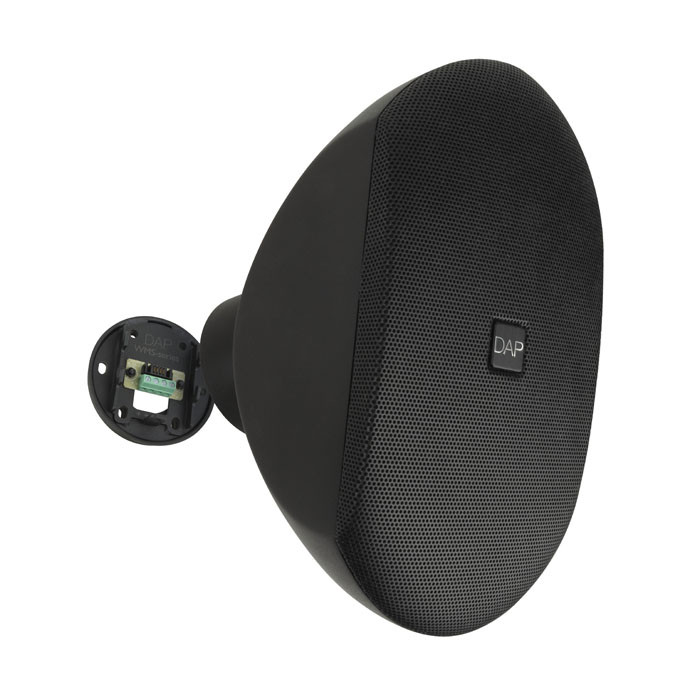

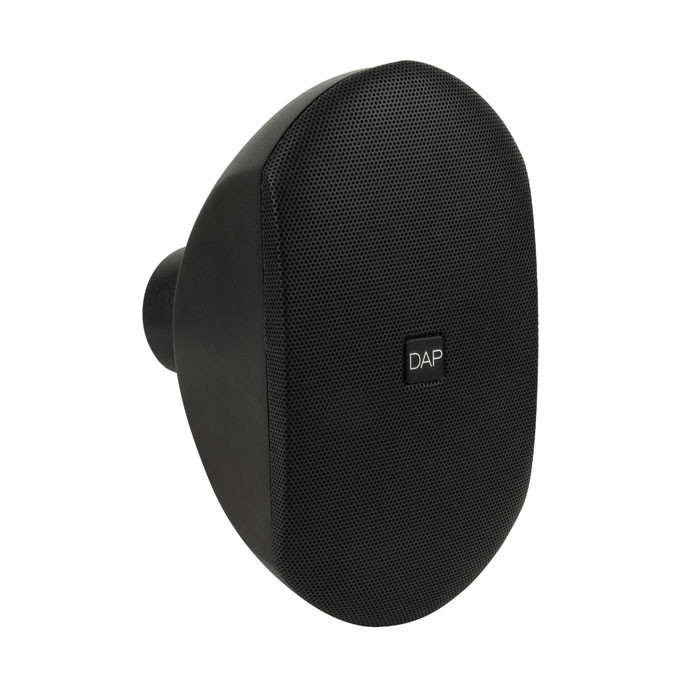

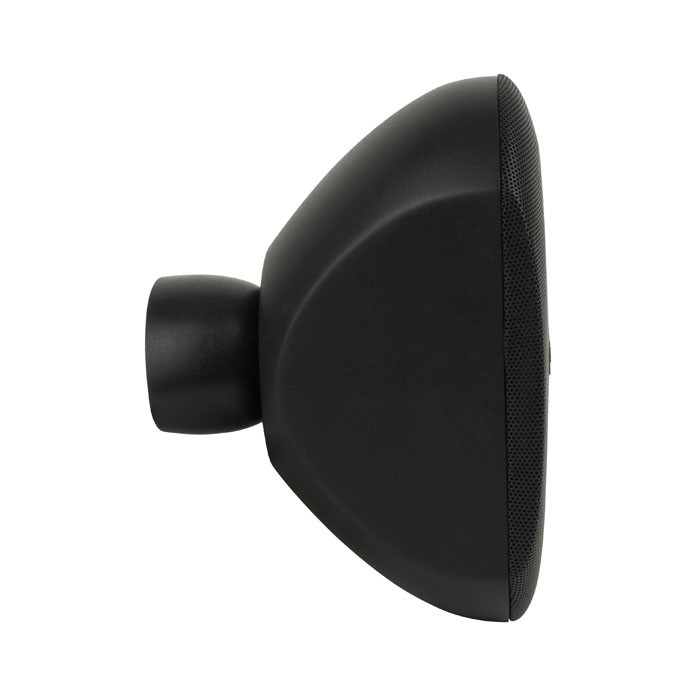

The DAP WMS4-B is a black 4-inch design wall speaker suitable for low-impedance audio installations. The smart design of this speaker allows you to mount it easily by using the included wall mounting plate. This is very beneficial for installers to get the job done quickly. In addition, it is a versatile design speaker that uses a ball joint to make it easily tiltable over 30° in both horizontal and vertical directions and rotatable over 90°. Therefore, the DAP logo on the front is rotatable. Due to the quick, easy installation and versatile applicability, this type of speaker is excellent for use in a lot in public spaces, such as shops, restaurants and even clubs.

The WMS4-B is equipped with a 2-way system and therefore has a clear full-range sound. With a maximum RMS power of 20 watts (80 W peak), it can produce an SPL of up to 98.5 dB at 1 metre.

A sturdy ABS housing protects against the ingress of dust and splash water. This means you can even use the speakers in damp places and sheltered outdoor locations, for example on a porch.
Audio Specifications

Speaker System


Speaker Sensitivity (1 W/1 m)

86.5 dB

Speaker Impedance

16 Ω

Maximum SPL at 1 m

98.5 dB

Frequency Response Minimum

90 Hz

Frequency Response Maximum

20000 Hz

Woofer Diameter

4 "

Woofer Voice Coil

1 "

Woofer Magnet Type


Compression Driver Voice Coil

0.7 "

Compression Driver Magnet Type


Dispersion Angle Horizontal


Dispersion Angle Vertical


Mechanical Specifications

Height (mm)

260 mm

Width (mm)

144 mm

Length (mm)

180 mm

Installation Depth (excl. connector)

180 mm








1.7 kg

IP Rating
