Kod proizvoda:2427

DAP Audio WMS6T-B

Nazidni dvosistemski zvučnik 6", 100V, 40W RMS / 120W peak, D3842

31.200,00

Download:

D3842_MANUAL_GB_V1

Specifikacije proizvoda:

Opis proizvoda:

40 W RMS/120 W peak - 100 V - 2-way - ABS

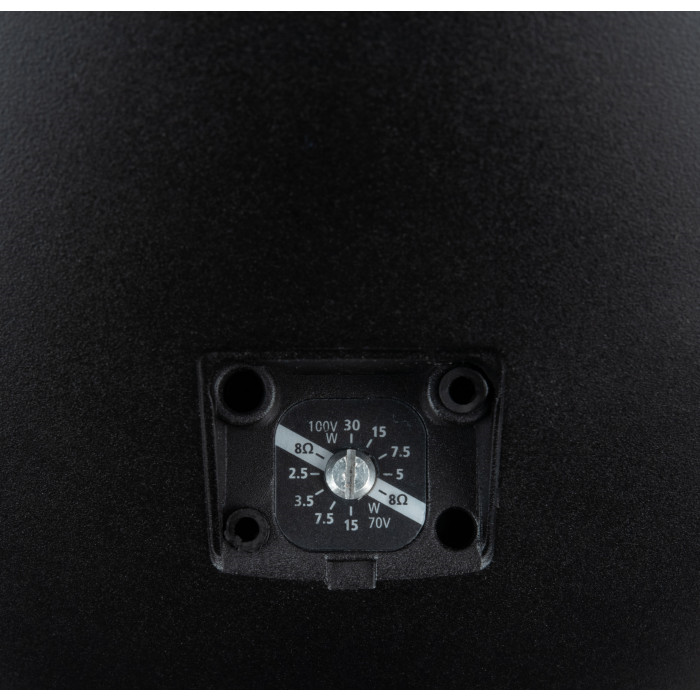

Four power taps and 8 Ω

Easy installation

Horizontal and vertical positioning

Protected against dust ingress and downpour (IP54)


The DAP WMS6T-B is a black 6-inch design wall speaker suitable for 100 V audio installations. The smart design of this speaker allows you to mount it easily by using the included wall mounting plate. This is very beneficial for installers to get the job done quickly. In addition, it is a versatile design speaker that uses a ball joint to make it easily tiltable over 30° in both horizontal and vertical directions and rotatable over 90°. Therefore, the DAP logo on the front is rotatable. Due to the quick, easy installation and versatile applicability, this type of speaker is excellent for use in a lot in public spaces, such as shops, restaurants and even clubs.

The WMS6T-B is equipped with a 2-way system and therefore has a clear full-range sound. With a maximum RMS power of 40 watts (120 W peak), it can produce an SPL of up to 105.5 dB at 1 metre. The volume can be adjusted to the volume of other components in the system due to the presence of multiple power taps on the transformer.

A sturdy ABS housing protects against the ingress of dust and splash water. This means you can even use the speakers in damp places and sheltered outdoor locations, for example on a porch.

Audio Specifications

Speaker System

2-way

Speaker Sensitivity (1 W/1 m)

89.5 dB

Speaker Impedance

8 Ω

Maximum SPL at 1 m

105.5 dB

Frequency Response Minimum

70 Hz

Frequency Response Maximum

20000 Hz

Woofer Diameter

6.5 "

Woofer Voice Coil

1 "

Woofer Magnet Type

Ferrite

Compression Driver Voice Coil

0.7 "

Compression Driver Magnet Type

Ferrite

Dispersion Angle Horizontal

60°

Dispersion Angle Vertical

30°


Mechanical Specifications

Height (mm)

385 mm

Width (mm)

215 mm

Length (mm)

240 mm

Installation Depth (excl. connector)

240 mm

Material

ABS

Colour

Black

Weight

3.9 kg

IP Rating

IP54
