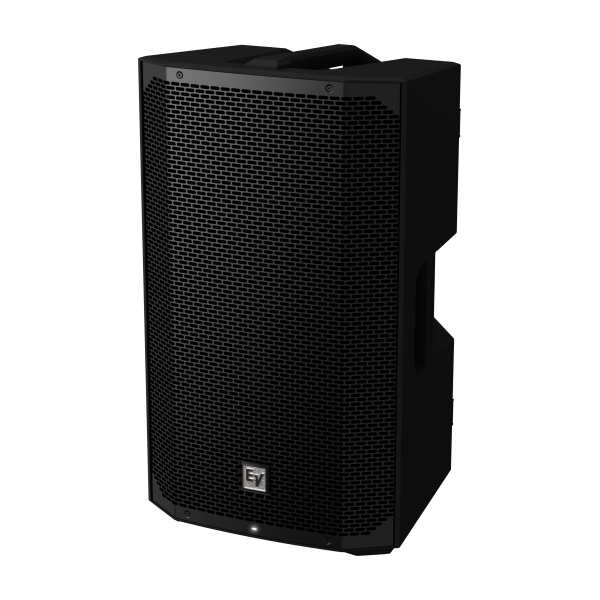

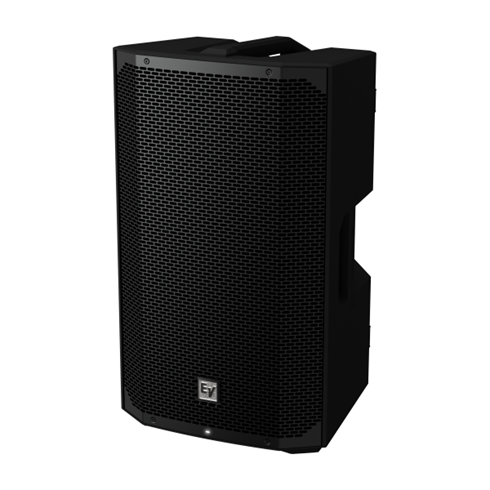

Electro-Voice EVERSE 12

Application

Pole-mounted / monitor / kick-back

Transducers

12” woofer, ferrite magnet
1” compression driver, neodymium magnet, ferrofluid cooled

Power rating (peak)

400 W

SPL max¹

126 dB

Coverage (H x V)

100° x 60°

Frequency range (-10 dB)² / response (-3 dB)³

45 Hz – 20 kHz / 55 Hz – 20 kHz

Material

Enclosure: polypropylene
Grille: steel with powder coat

Digital signal processing

QuickSmartDSP features best-in-class processing powered by Dynacord. Easy setup via seven-band GEQ for main EQ, user-programmable presets, visual monitoring of limiter status, input level control and meters, digital effect control, and master volume control to optimize gain structure, all via LCD or the free QuickSmart Mobile app.

Remote control and monitoring

EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six EVERSE 12 systems simultaneously, and receive immediate notification during critical performance conditions.

Bluetooth audio streaming and true wireless stereo4

YES

Crossover frequency

2000 Hz

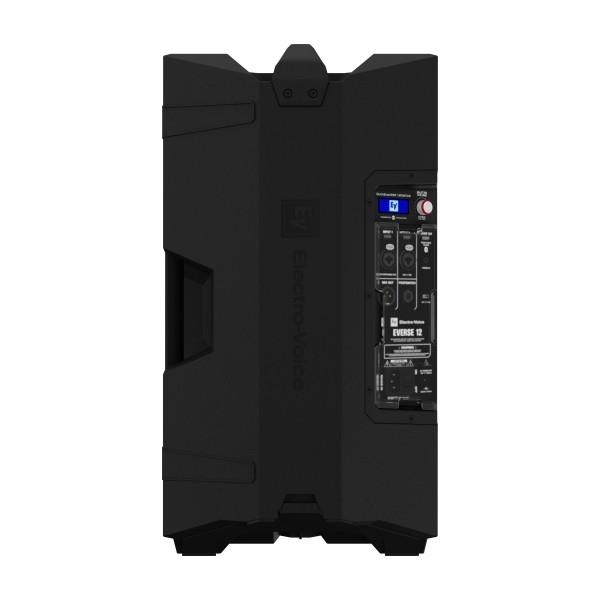

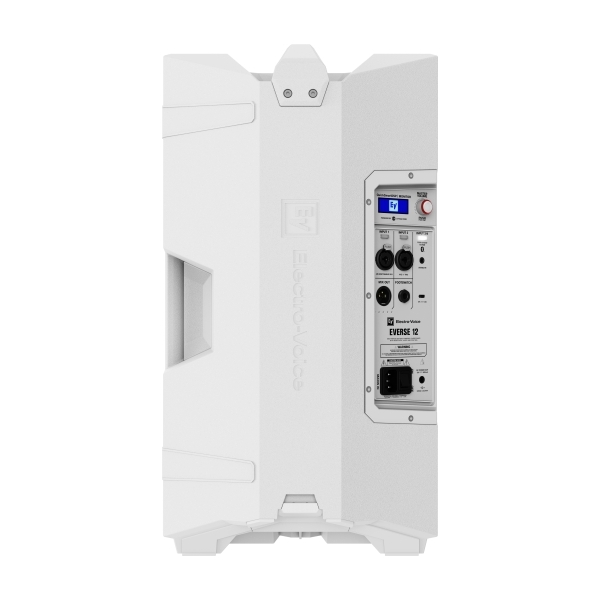

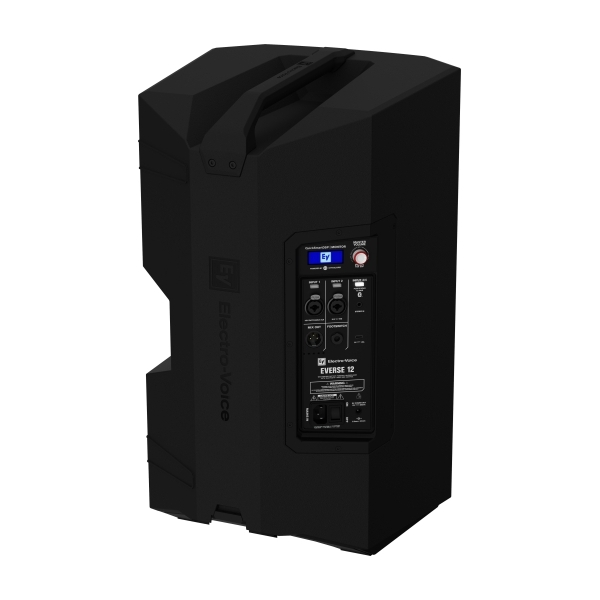

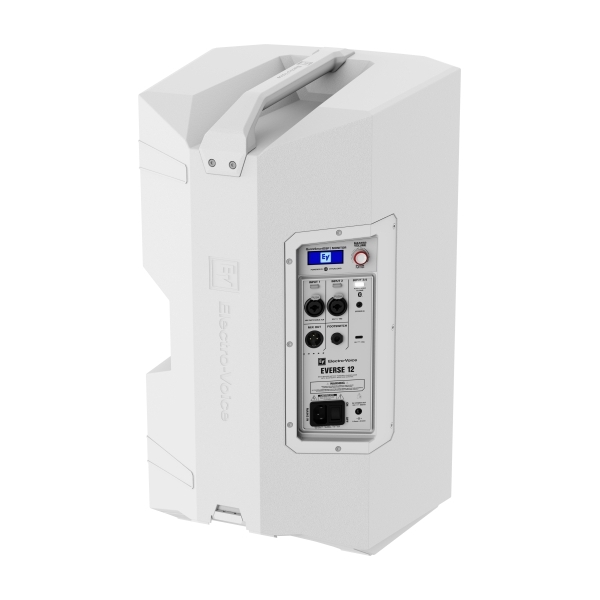

Connectors

2x XLR/TRS combo jack 1x charge port 1x XLR output 1x 12 V DC power output 1x 3.5mm stereo 1x TRS footswitch

USB charging

1.5 A max, device-dependent

Power consumption5

100 - 240 V~, 50 - 60 Hz, 1.2 - 0.6 A

Battery capacity

86.4 Wh

Battery at max output6

6+ hours of run optimize6+ hours of run time

Battery at moderate output7

12+ hours of run time

Weight

14.16 kg (31.22 lbs)

Dimensions (W x H x D)

345 mm x 597 mm x 347 mm (13.58" x 23.5" x 13.66")

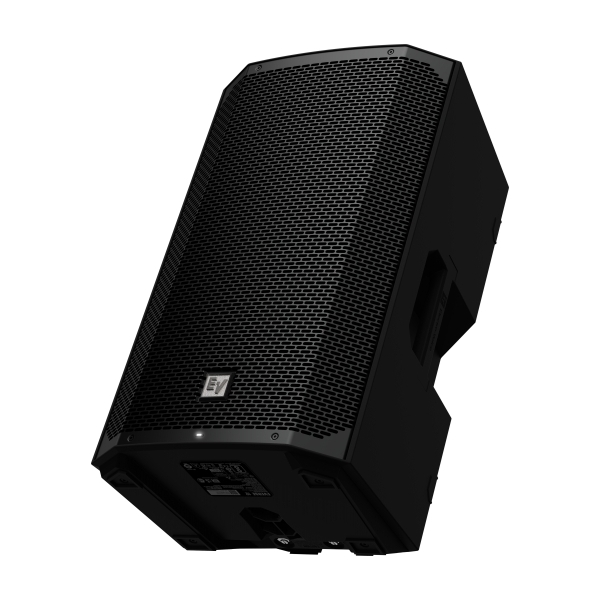

Kick-back / monitor angles

25° / 55°

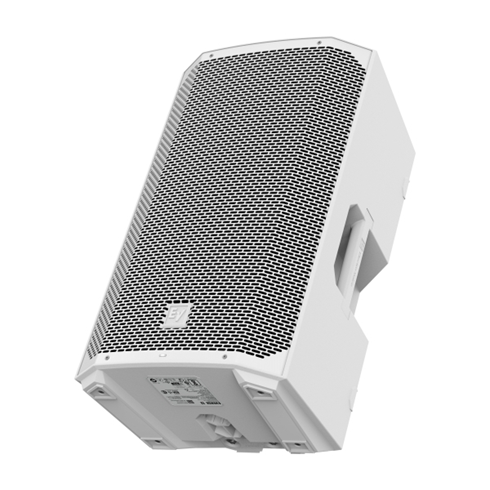

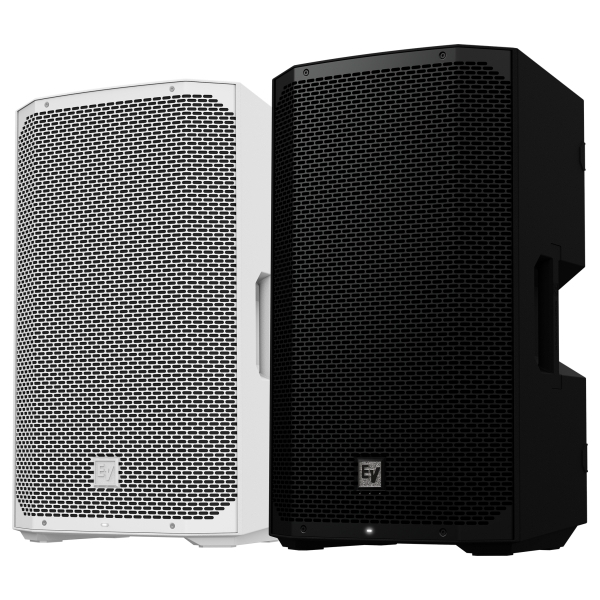

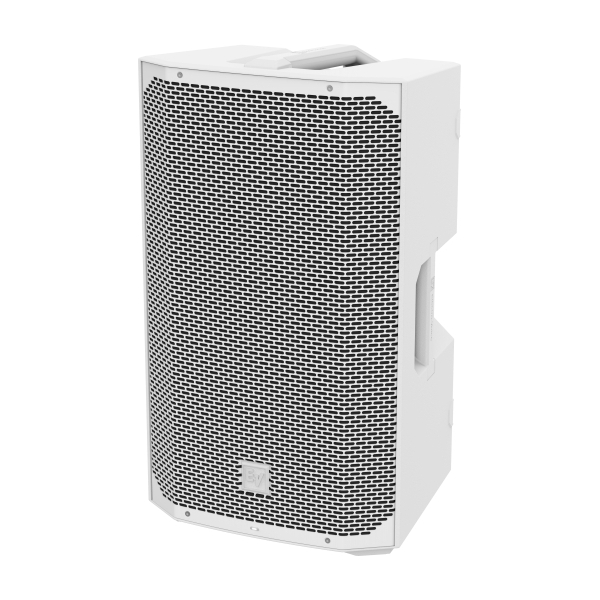

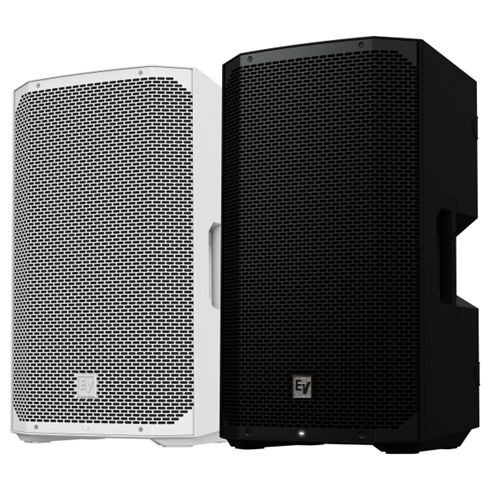

Colors

Black

Accessories

EVERSE12-TRAY-B mic receiver tray black
EVERSE-BAT-B battery pack black
EVERSE-DUFFEL padded duffel bag
EVERSE12-RAINCVR rain cover
