Sa ukupnim izlaznim kapacitetom od 600W, ovo kompaktno dvokanalno pojačalo nije samo skrojeno za muziku u pozadini već se takođe ističe kad god su potrebni viši nivoi SPL-a u malim i srednjim fiksnim instalacijama uključujući ugostiteljske, obrazovne, prodajne, verske, kao i ostale tipove objekata.
Sa naprednim Dynacord tehnologijama, uključujući powerTank, varijabilno opterećenje izlaza VLD, ecoRAIL i dualCOOL, pojačavač V600:2 nudi fleksibilnu i smanjenu upotrebu energije i tihi,neprekidni rad.
V600:2 kombinuje iste(najbolje) karakteristike kao i prethodni četvorokanalni pojačavač V600:4, obezbeđujući optimalnu fleksibilnost instalacije, superiornu energetsku efikasnost i naprednu pouzdanost.
SPECIFICATIONS
|
ELECTRICAL
|
|
Total rated output power1
|
600 W
|
|
Number of channels
|
2
|
|
Rated output power1
|
2 x 300 W
|
|
Output power:
|
4 Ω / 8 Ω / 70 V / 100 V
|
|
Maximum output power per channel (power sharing)
|
500 W / 600 W / 500 W / 600 W
|
|
AMPLIFIER
|
|
|
4 Ω / 8 Ω / 70 V / 100 V
|
|
Nominal Gain
(+6 dBu input sensitivity, LEVEL 0 dB)
|
27.0 dB / 30.0 dB / 33.2 dB / 36.2 dB
|
|
Signal to Noise Ratio
(A‑weighted, ref. to rated output power, LEVEL 0 dB)
|
> -100 dB / > 102 dB / > 101 dB / > 103 dB
|
|
THD+N
(1/8 RATED OUTPUT POWER, 1 KHZ)
|
< 0.1 %
|
|

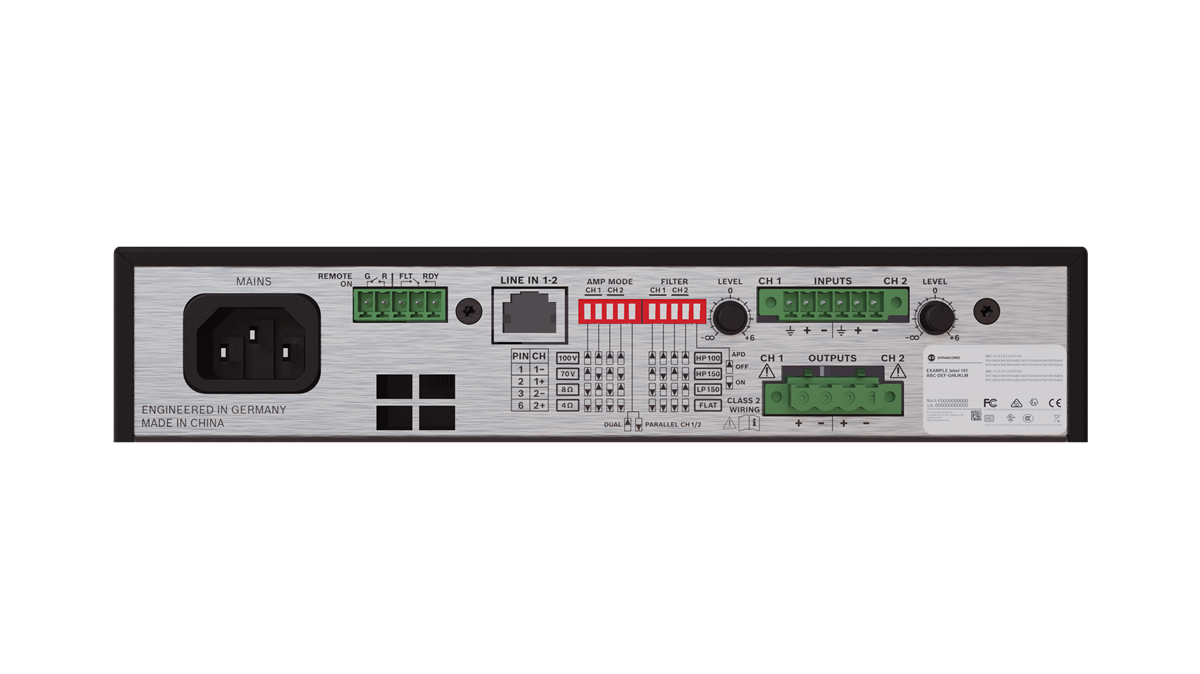

CONNECTIVITY
|
|
Type
|
1 x 6-pin Euroblock, 3.81 mm, male,
parallel 1x RJ45 (AES72-1E)
|
|
Loudspeaker output
|
2 x 4-pin Euroblock, 5.08 mm, female
|
|
Control port type
|
1 x 5-pin Euroblock, 3.81 mm, male
|
|
GENERAL
|
|
Signal processing
|
Input Routing, Filter (24 dB/Oct.), Hi-pass 30/50/100/150 Hz, Lo-pass 150 Hz, Peak Limiter
|
|
Power requirements
|
100 V to 240 V, 50 Hz to 60 Hz AC
|
|
Power consumption:
|
|
Idle mode (ecoRAIL with no input signal)
|
< 12 W
|
|
Consumption at 1/8 rated output power
|
115 W
|
|
Standby mode (APD active)
|
< 1 W
|
|
Protections
|
Audio limiters, high temperature, DC, HF, short circuit, back-EMF, peak current limiters, inrush current limiters, mains over/under voltage protection
|
|
Mechanical
|
|
|
Enclosure
|
|
|
IEC Protection Class
|
Class I (grounded)
|
|
|
Dimensions (HxWxD)
With 19” mounting brackets
|
44.2 x 218 x 269.5 mm
(1.74 x 8.6 x 10.6 in)
|
|
|
Weight
|
2.1 kg (4.6 lb)
|
|
|
|
|
|
|
1 Test signal for max. output power according IHF-A-202 (Dynamic-Headroom, burst 1 kHz / 20 ms on / 480 ms off / low level -20 dB)
