Coverage angle conical (°) |
110° |
|
Power handling (continuous) (W) 4 |
80 W |
|
Power handling (peak) (W) 4 |
320 W |
|
Long term power handling (continuous) (W) 5 |
70 W |
|
Long term power handling (peak) (W) 5 |
280 W |
|
Nominal impedance (Ω) (Low Z) |
8 Ω |
|
Recommended high pass (Hz) 6 |
60 Hz |
|
Transformer taps 70 V line (W) |
30 W; 15 W; 7.5 W; 3.75 W; 1.88 W |
|
Transformer taps 100 V line (W) |
30 W; 15 W; 7.5 W; 3.75 W |
|

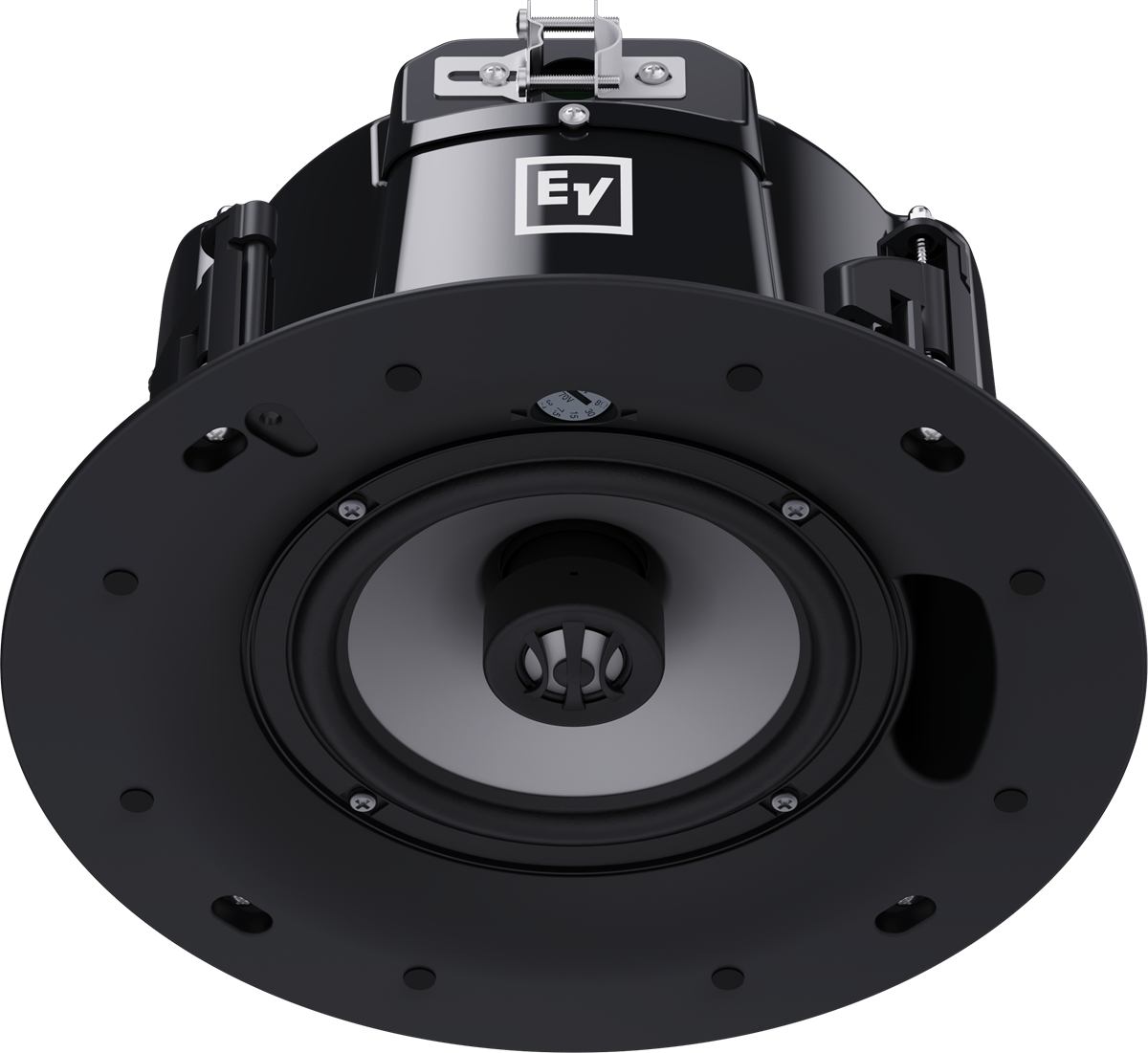

LF transducer size (in) |
6 in |
|
HF transducer size (in) |
1 in |
|
Material |
Steel |
|

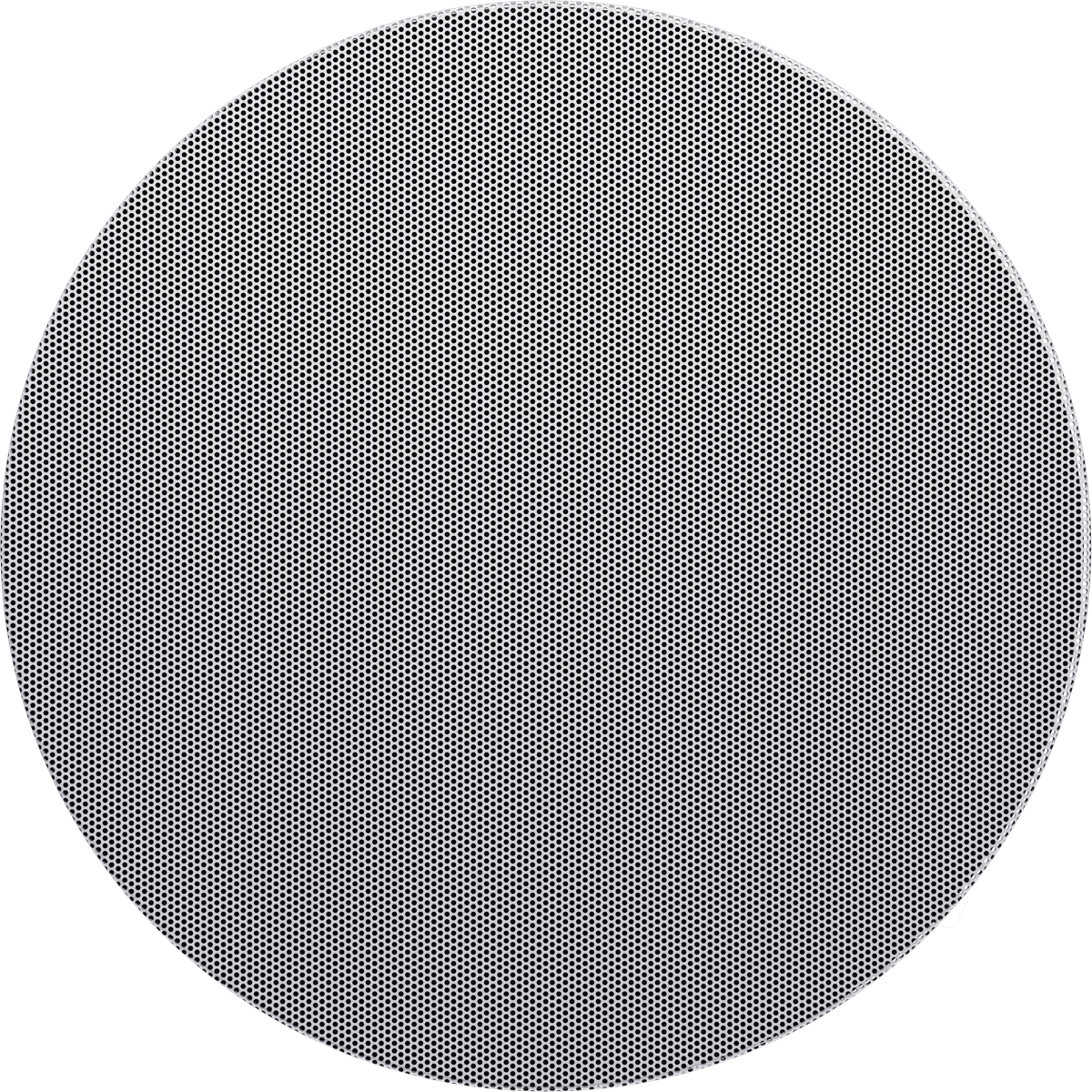

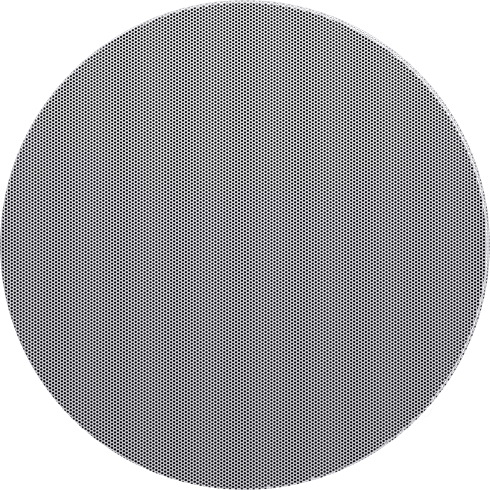

Grille material |
Powder coated steel |
|

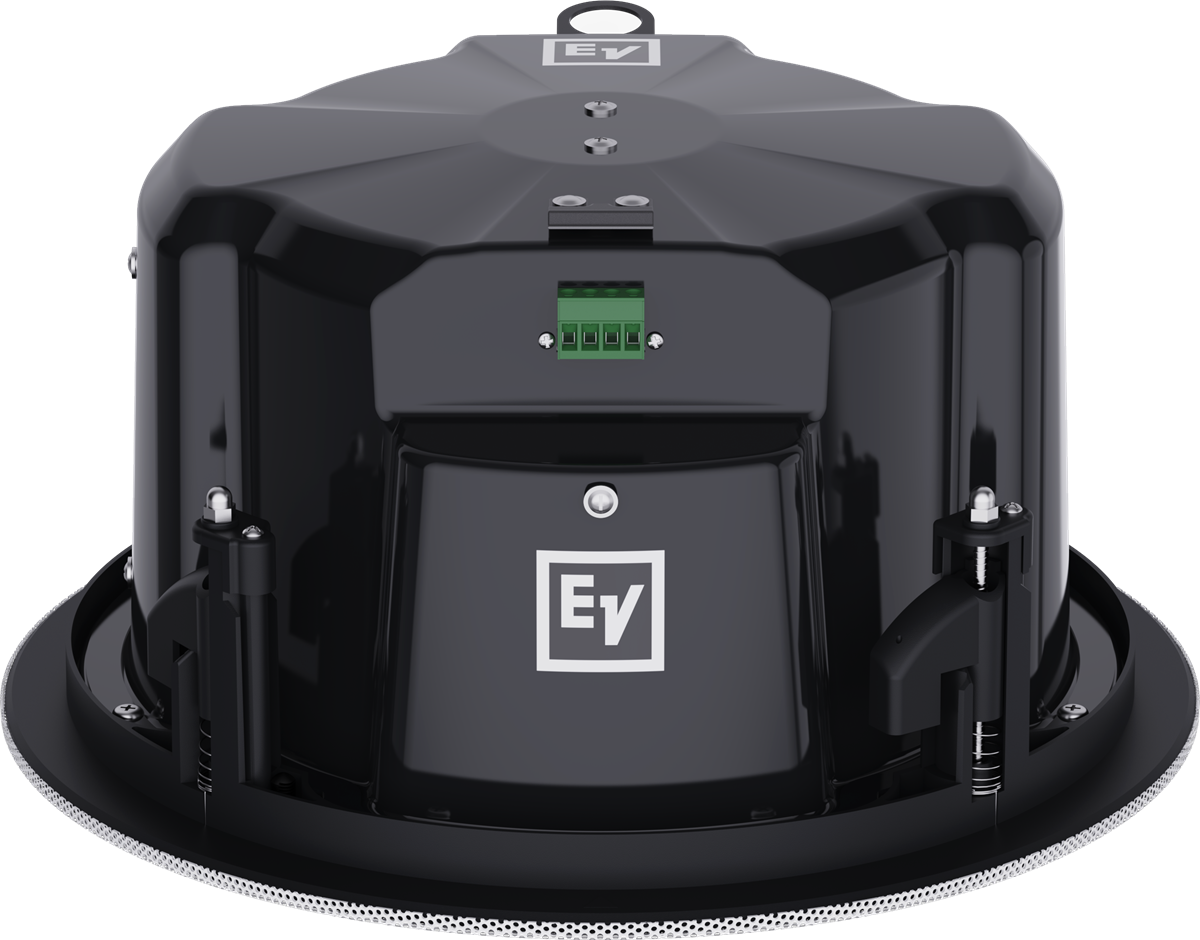

Connector type |
4-pin Euroblock |
|
Wire size (AWG) |
12AWG (maximum) |
|
Wire diameter (mm2) |
3.3 mm2 (maximum) |
|
Color |
White; Customized colors |
|
Color (RAL) |
RAL 9003 Signal white |
|
Mounting cutout (in) |
10.7 in |
|
Mounting cutout (mm) |
272 mm |
|
Dimensions (Ø x D) (in) |
11.9 in x 6 in |
|
Dimensions (Ø x D) (mm) |
302 mm x 153.8 mm |
|
Mounting depth (in) |
5.9 in |
|
Mounting depth (mm) |
163 mm |
|
Ceiling thickness (in) |
0.5 in - 1.5 in |
|
Ceiling thickness (mm) |
12.5 mm - 38 mm |
|
Weight (lb) 7 |
9 lb |
|
Weight (kg) 7 |
4.1 kg |
|
Shipping weight (lb) 8 |
22 lb |
|
Shipping weight (kg) 8 |
10 kg |
|
IP rating 7 |
IP34 |
|
Weatherization |
Indoor |
|
Operating temperature (°F) |
32 °F – 122 °F |
|
Operating temperature (°C) |
0 °C – 50 °C |
