Coverage angle conical (°) |
360° |
|
Power handling (continuous) (W) 4 |
180 W |
|
Power handling (peak) (W) 4 |
720 W |
|
Long term power handling (continuous) (W) 5 |
150 W |
|
Long term power handling (peak) (W) 5 |
600 W |
|
Nominal impedance (Ω) (Low Z) |
8 Ω |
|
Transformer taps 70 V line (W) |
60 W; 30 W; 15 W; 7.5 W; 3.75 W |
|
Transformer taps 100 V line (W) |
60 W; 30 W; 15 W; 7.5 W |
|

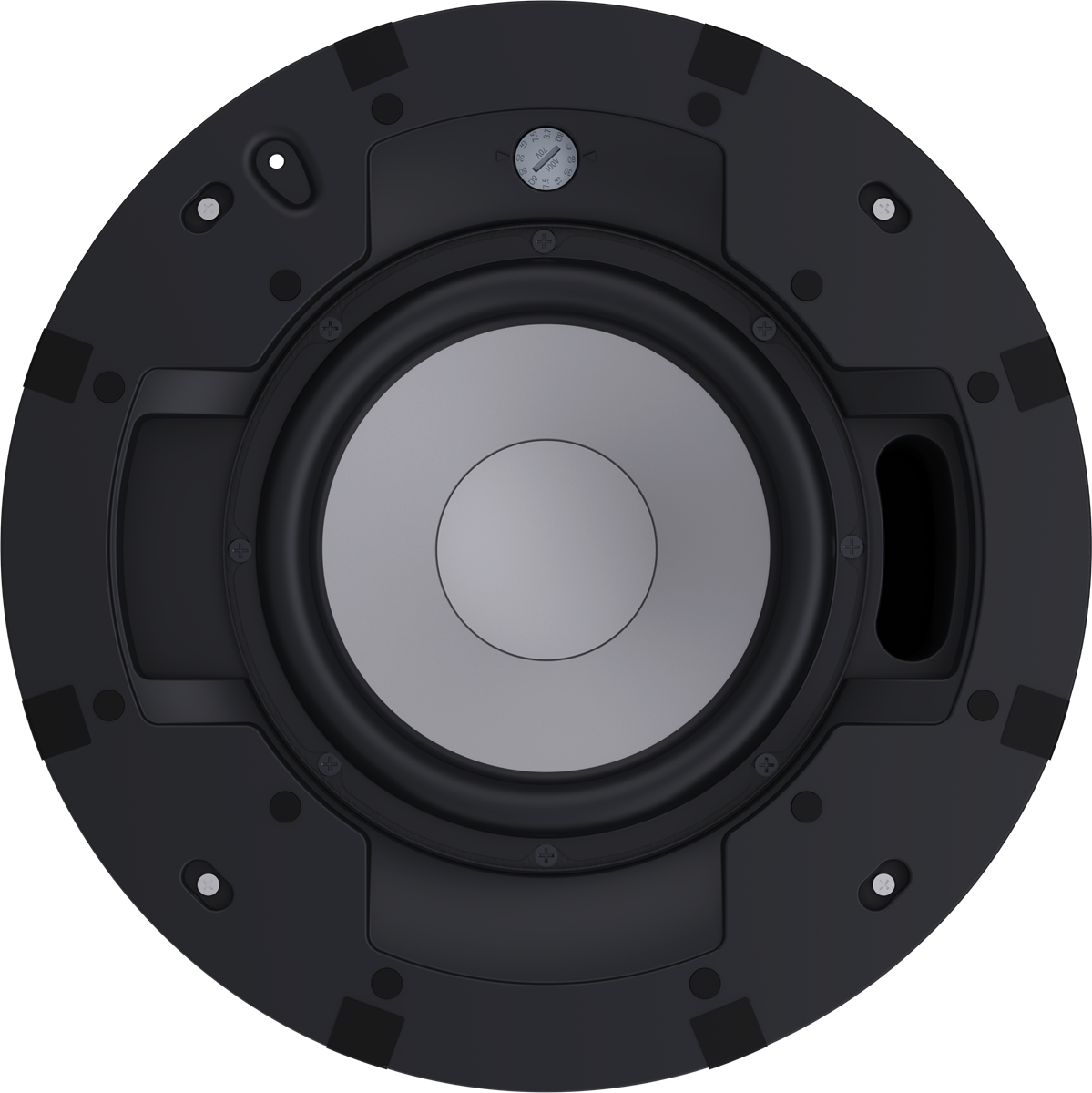

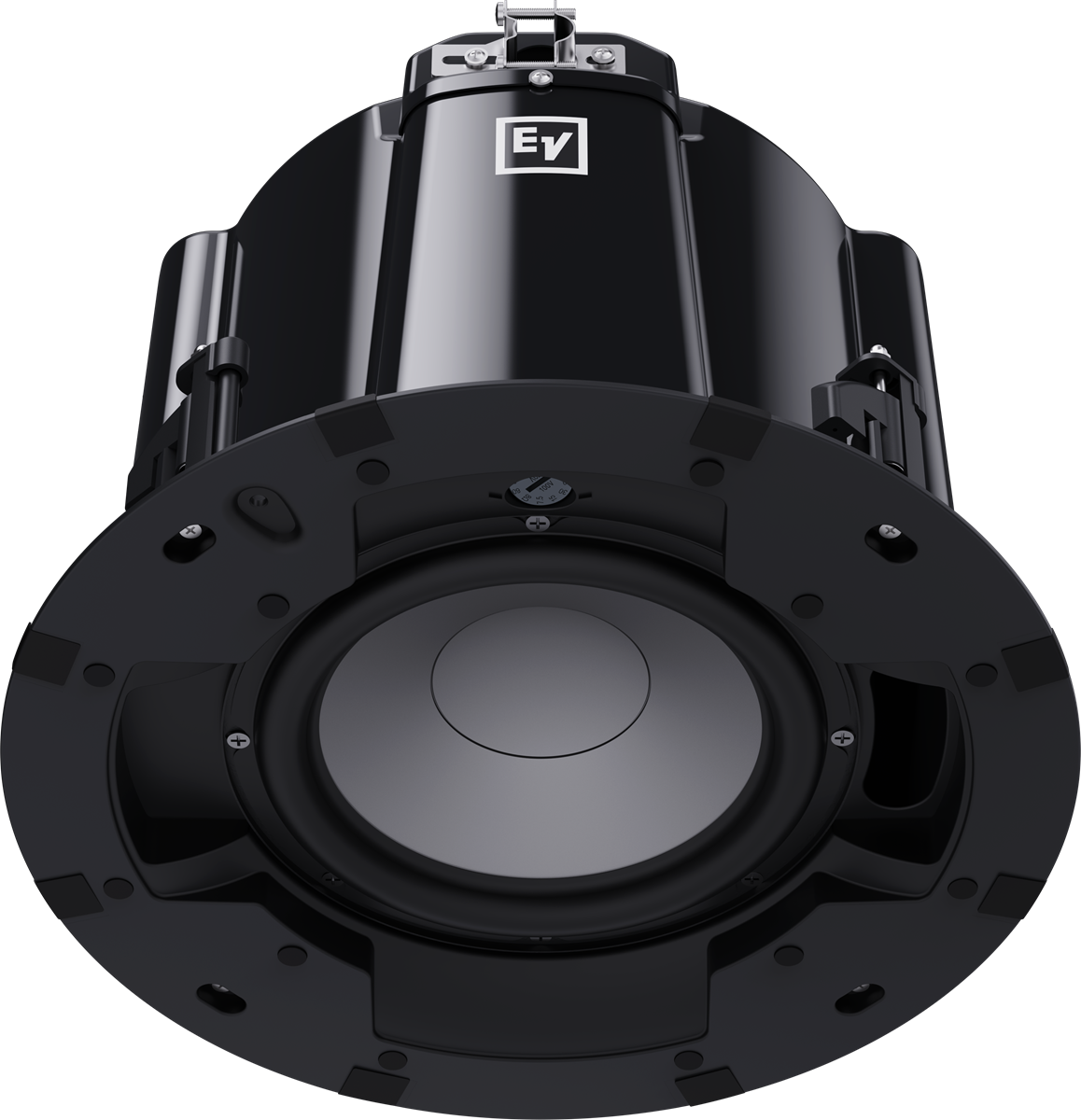

LF transducer size (in) |
8 in |
|
Material |
Steel |
|

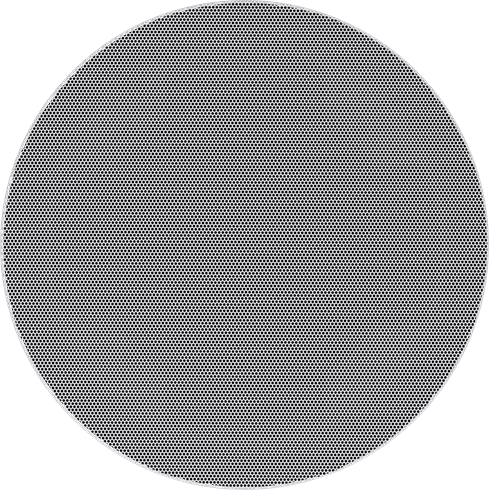

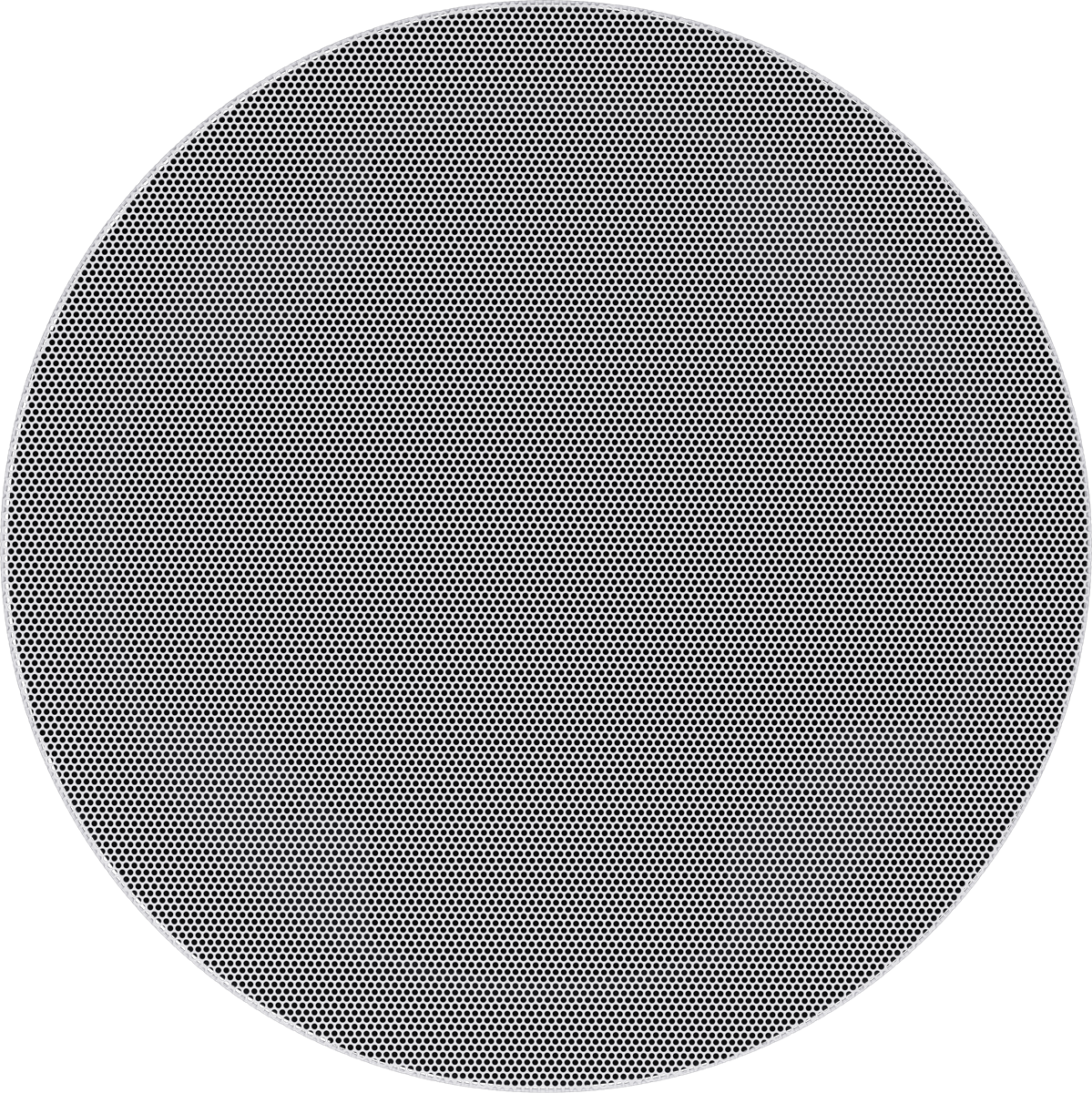

Grille material |
Powder coated steel |
|

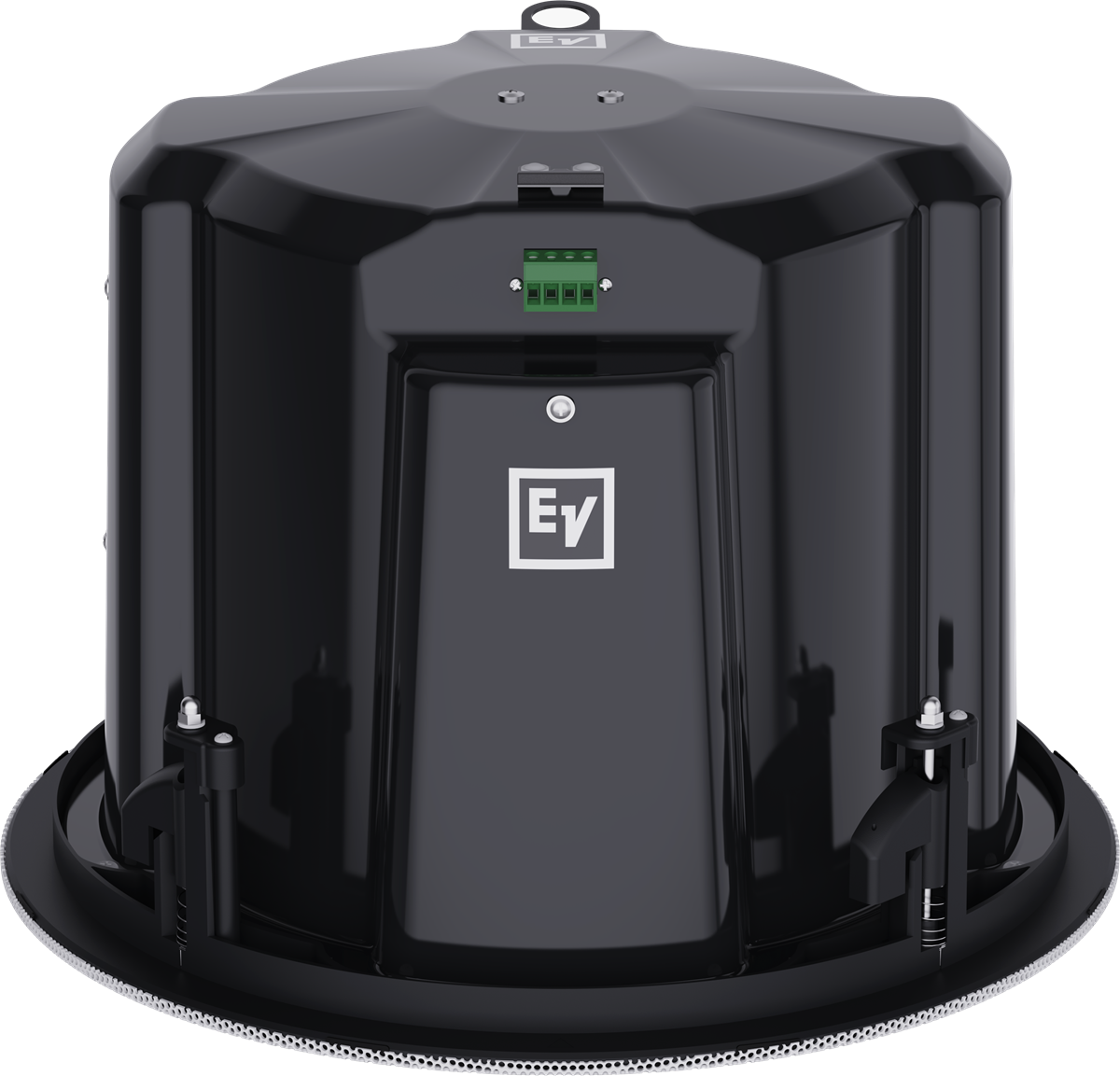

Connector type |
4-pin Euroblock
Input + Pass through |
|
Wire size (AWG) |
12AWG (maximum) |
|
Wire diameter (mm2) |
3.3 mm2 (maximum) |
|
Color |
White; Customized colors |
|
Color (RAL) |
RAL 9003 Signal white |
|
Mounting cutout (in) |
12.7 in |
|
Mounting cutout (mm) |
322 mm |
|
Dimensions (Ø x D) (in) |
13.9 in x 9.9 in |
|
Dimensions (Ø x D) (mm) |
353 mm x 350.7 mm |
|
Mounting depth (in) |
9.5 in |
|
Mounting depth (mm) |
240 mm |
|
Ceiling thickness (in) |
0.5 in - 1.5 in |
|
Ceiling thickness (mm) |
12.5 mm - 38 mm |
|
Weight (lb) 7 |
16 lb |
|
Weight (kg) 7 |
7.25 kg |
|
Shipping weight (lb) 8 |
40.8 lb |
|
Shipping weight (kg) 8 |
18.5 kg |
|
IP rating |
IP34 |
|
Weatherization |
Indoor |
|
Operating temperature (°F) |
32 °F – 122 °F |
|
Operating temperature (°C) |
0 °C – 50 °C |
