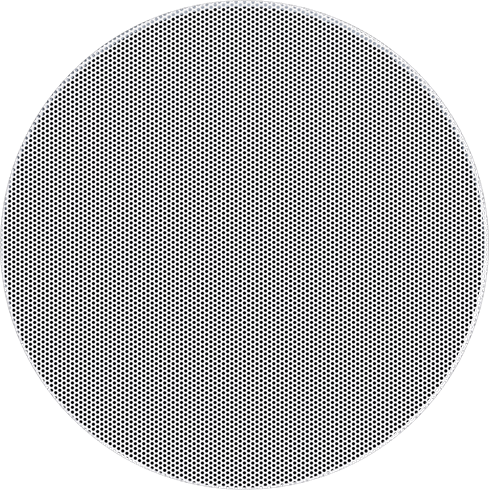

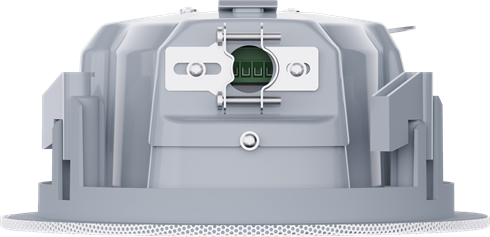

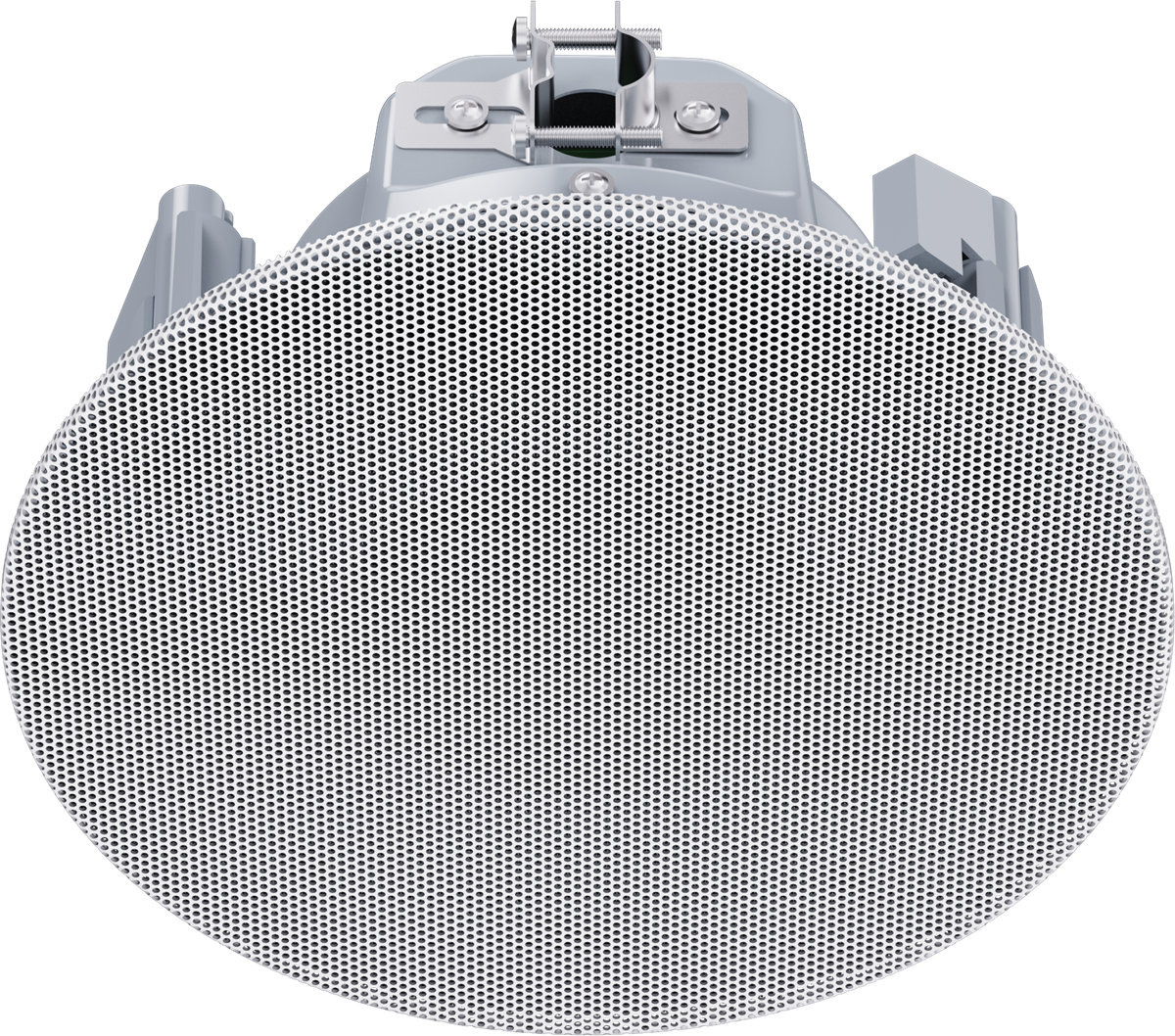

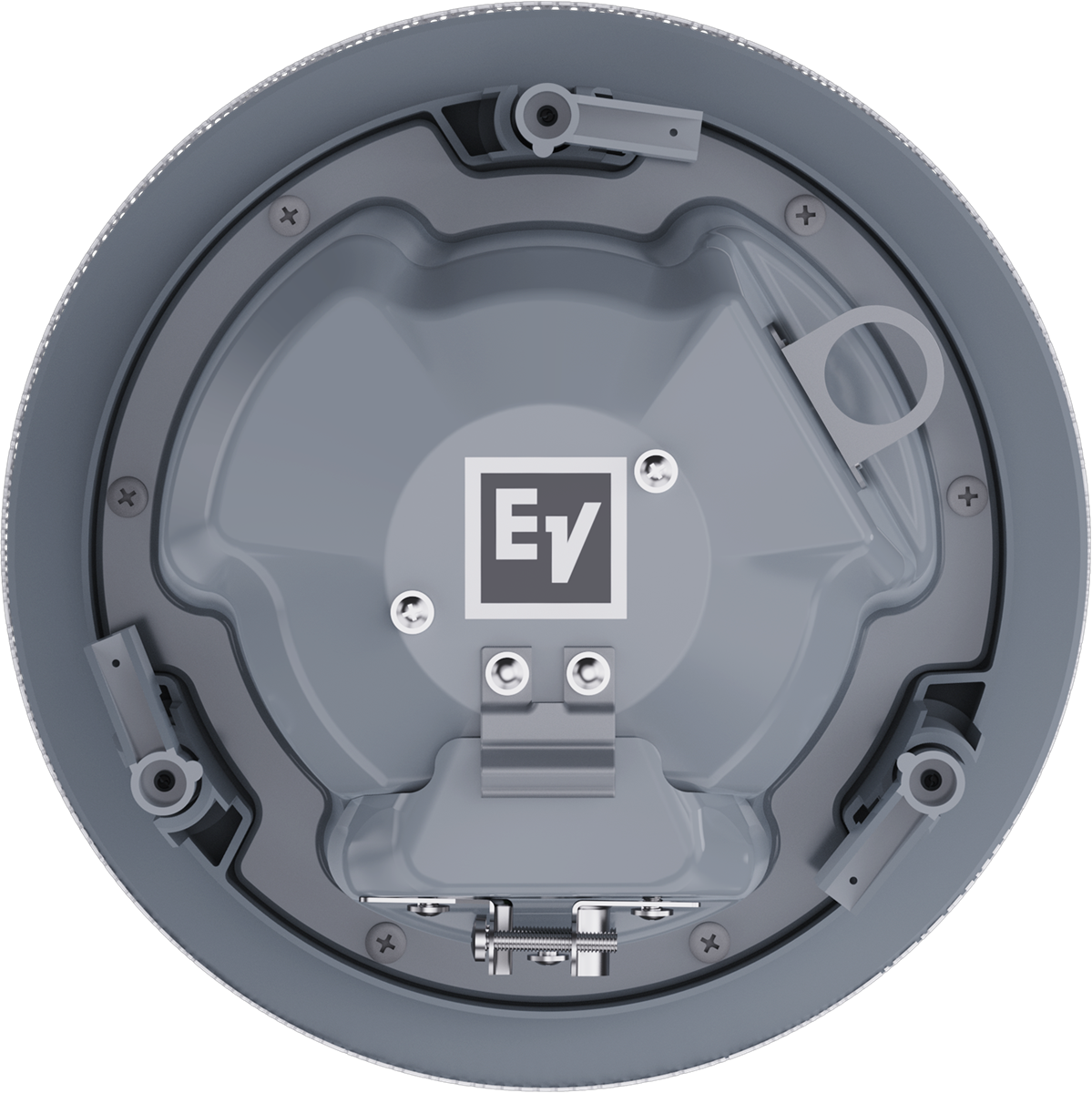

Electro-Voice EVID EC3.1

Pasivna 100V zvučna kutija 100V15/7,5/3,75W/1,88 8Ω/40W

10.200,00

Dodaj na listu želja

provereni kvalitet

sigurna kupovina

brza isporuka

Frequency range (-10 dB) (Hz) ¹	90 Hz – 19,000 Hz
Maximum SPL (continuous) (dB) ²	100 dB
Maximum SPL (peak) (dB) ²	106 dB
Sensitivity (1 W, 1 m) ³	84 dB SPL 1 W, 1 m
Coverage angle conical (°)	135°
Power handling (continuous) (W) ⁴	40 W
Power handling (peak) (W) ⁴	160 W
Long term power handling (continuous) (W) ⁵	25 W
Long term power handling (peak) (W) ⁵	100 W
Nominal impedance (Ω) (Low Z)	8 Ω

Recommended high pass (Hz) ⁶	110 Hz
Transformer taps 70 V line (W)	15 W; 7.5 W; 3.75 W; 1.88 W; 0.9 W
Transformer taps 100 V line (W)	15 W; 7.5 W; 3.75 W; 1.88 W
LF transducer size (in)	3 in
Material	Steel
Grille material	Powder coated steel

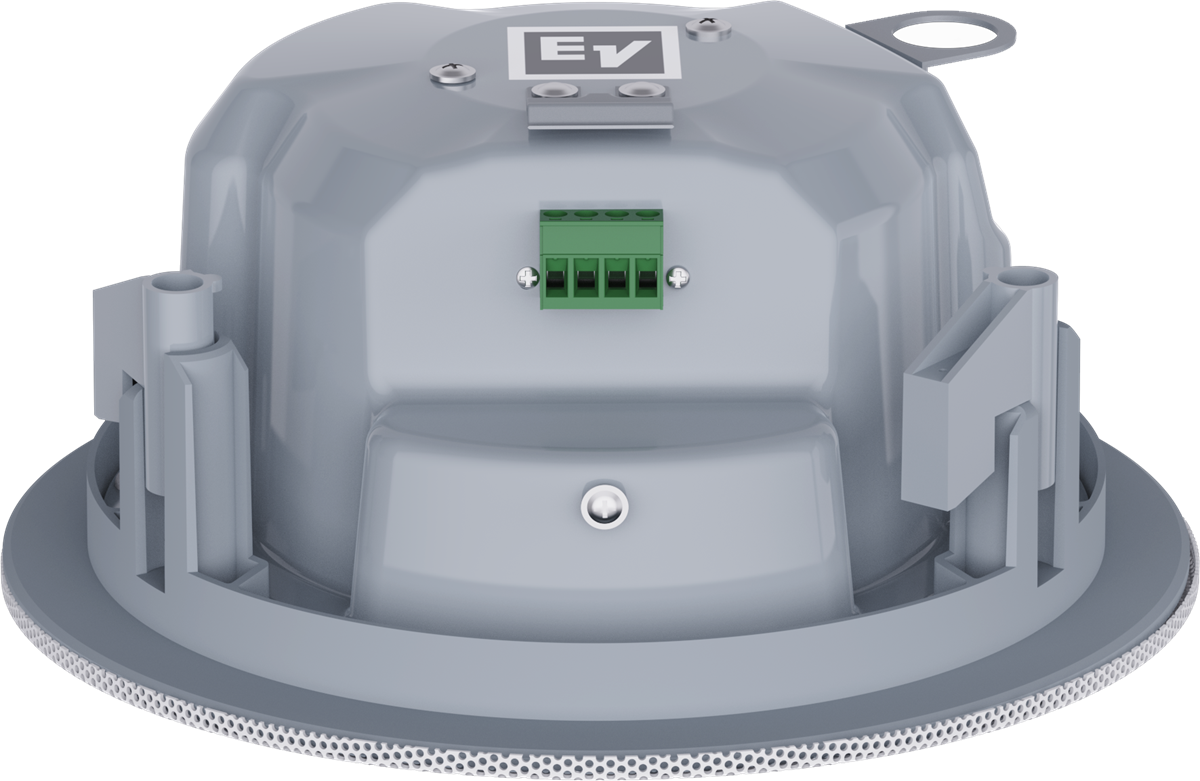

Connector type	4-pin Euroblock Input + Pass through
Wire size (AWG)	12AWG (maximum)
Wire diameter (mm2)	3.3 mm2 (maximum)
Color	White; Customized colors
Color (RAL)	RAL 9003 Signal white
Mounting cutout (in)	7.20 in
Mounting cutout (mm)	183 mm
Dimensions (Ø x D) (in)	8.4 in x 3.9 in
Dimensions (Ø x D) (mm)	212 mm x 98.3 mm
Mounting depth (in)	3.7 in
Mounting depth (mm)	93 mm
Ceiling thickness (in)	0.5 in - 1.5 in
Ceiling thickness (mm)	12.5 mm - 38 mm
Weight (lb) ⁷	4.6 lb
Weight (kg) ⁷	2.1 kg
Shipping weight (lb) ⁸	13.2 lb
Shipping weight (kg) ⁸	6 kg
IP rating	IP45
Weatherization	Indoor
Operating temperature (°F)	32 °F – 122 °F
Operating temperature (°C)	0 °C – 50 °C
