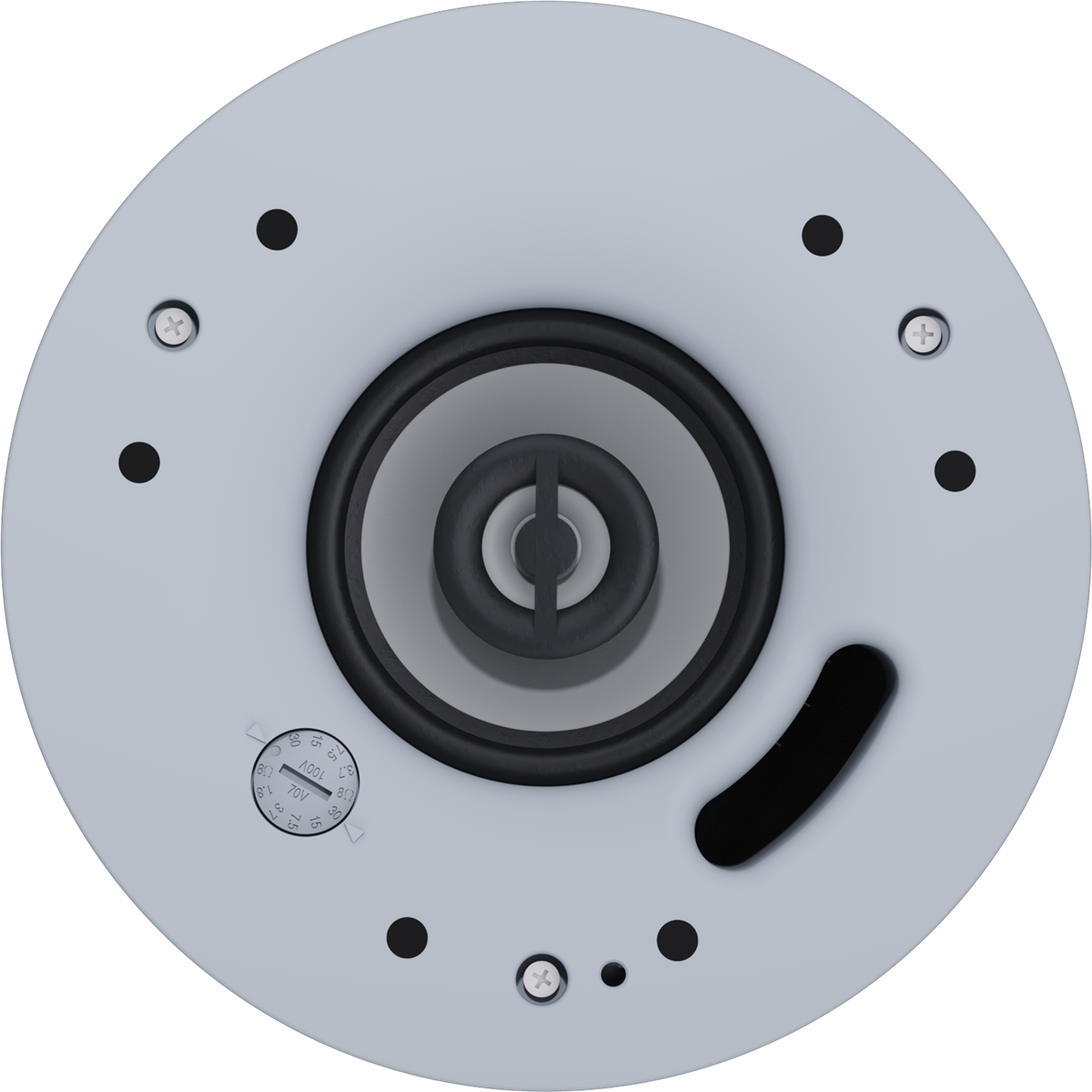

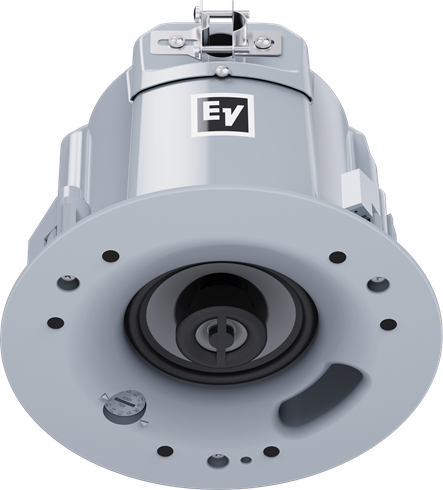

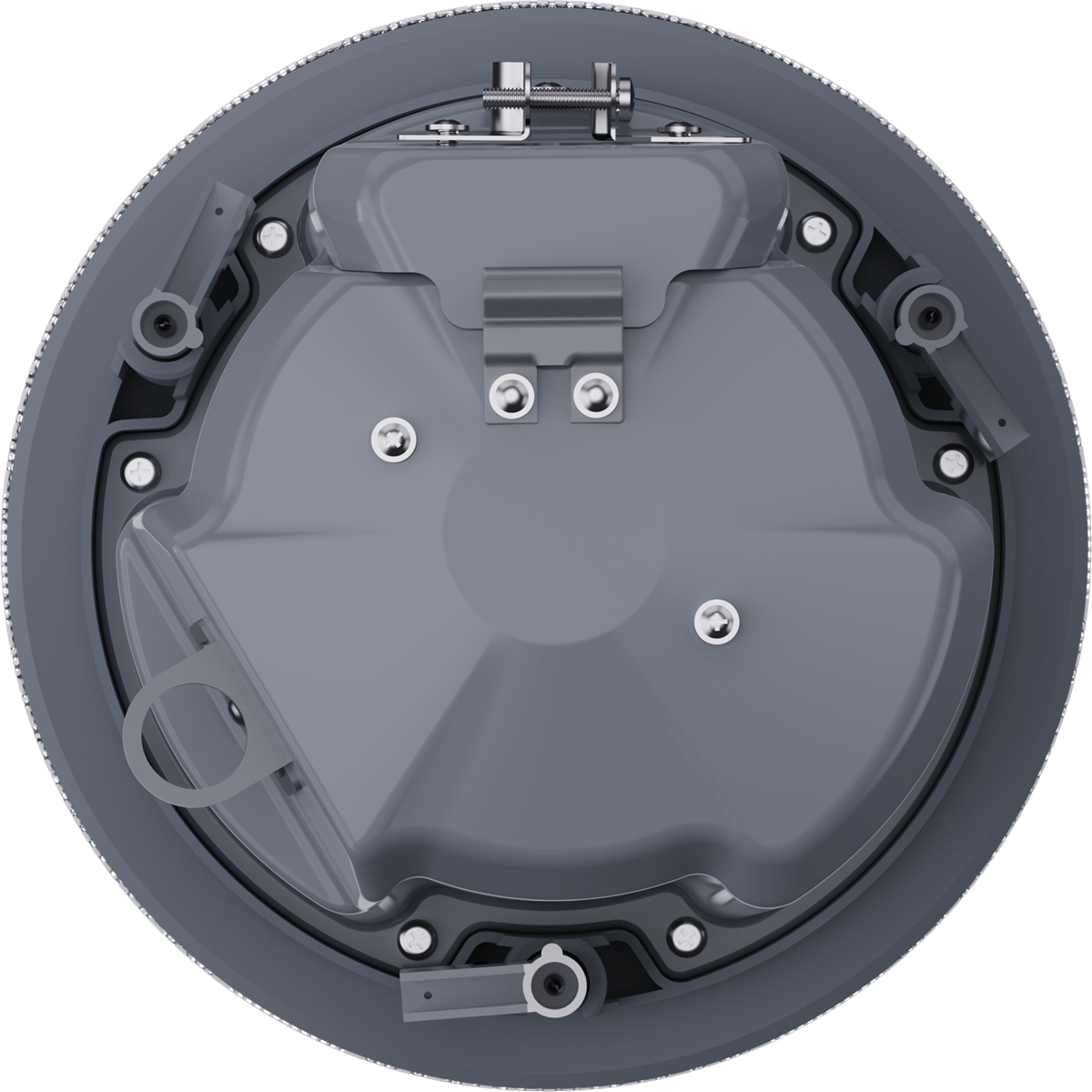

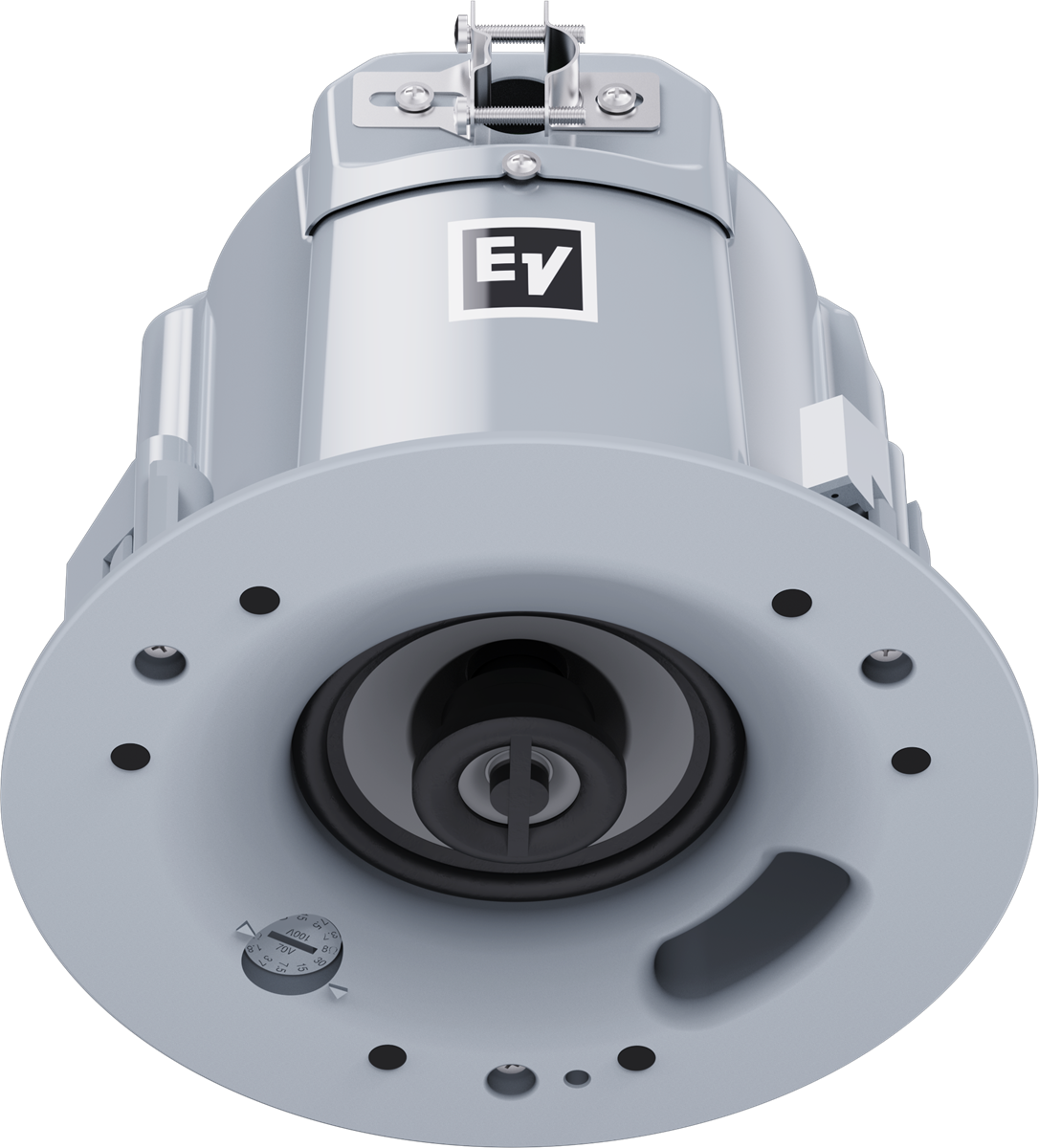

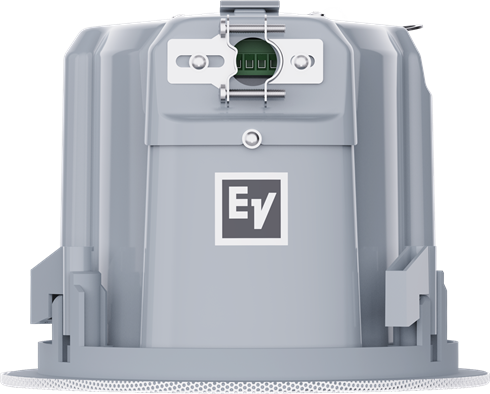

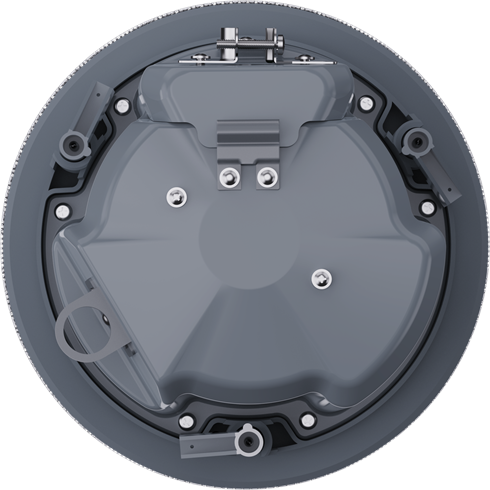

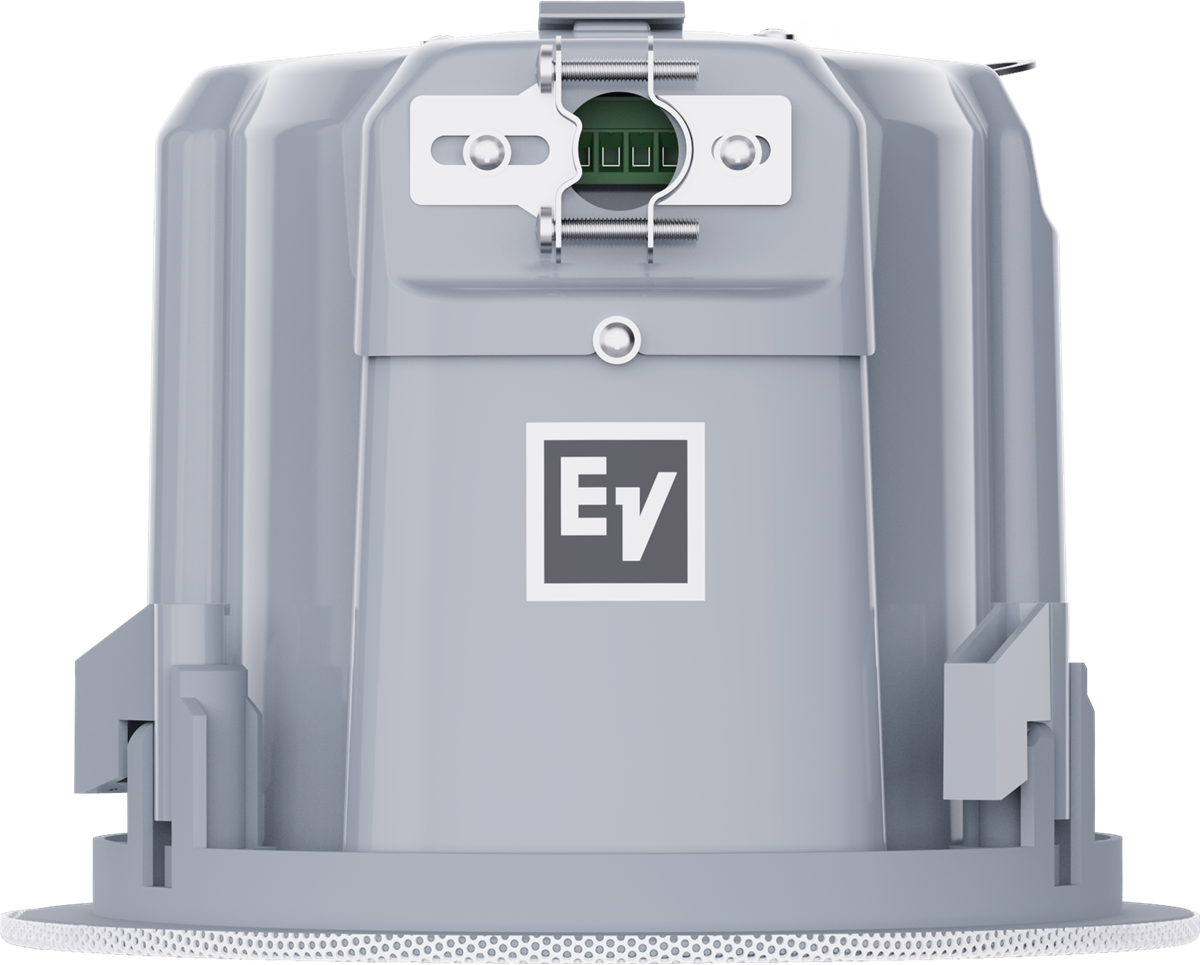

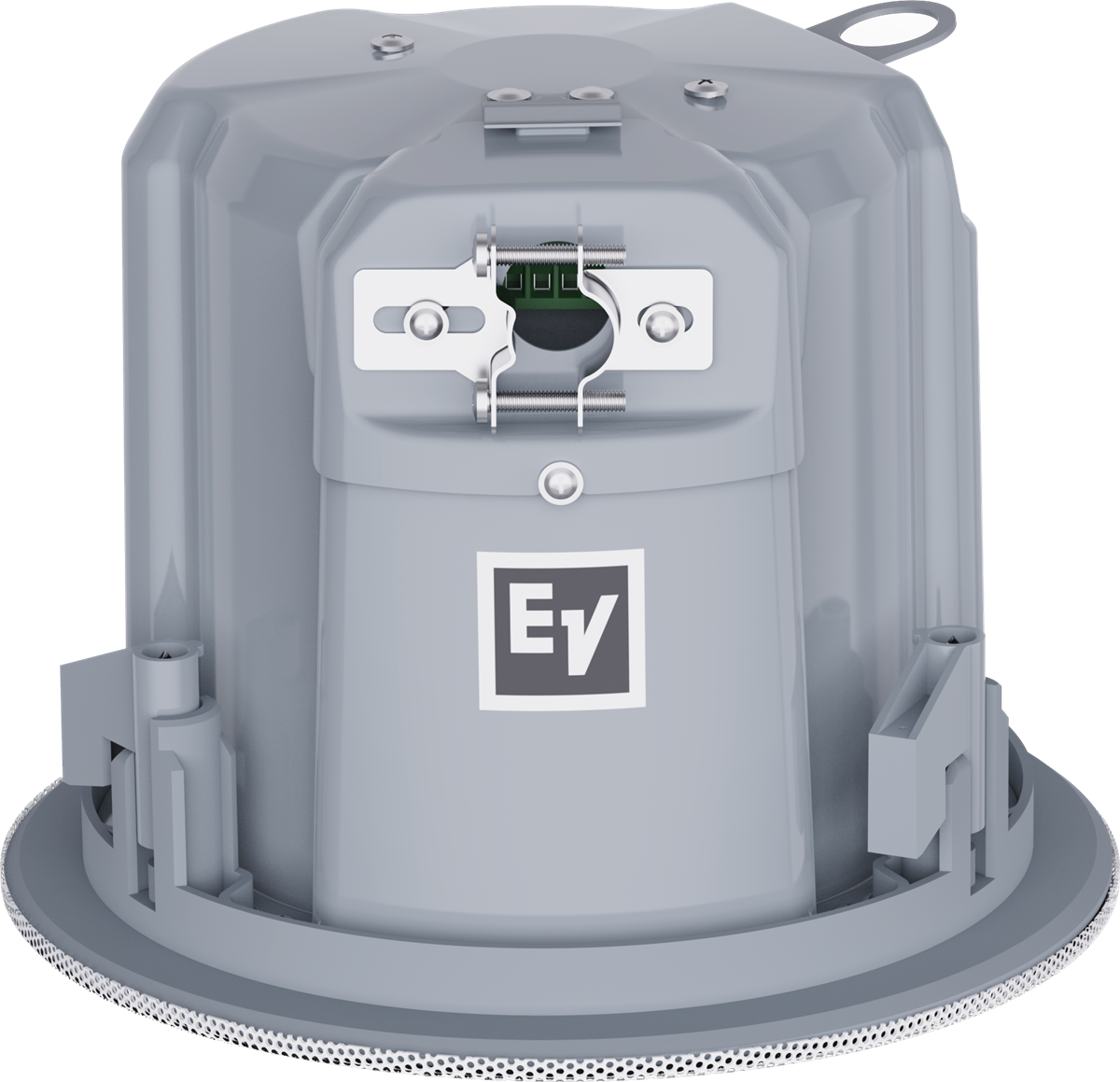

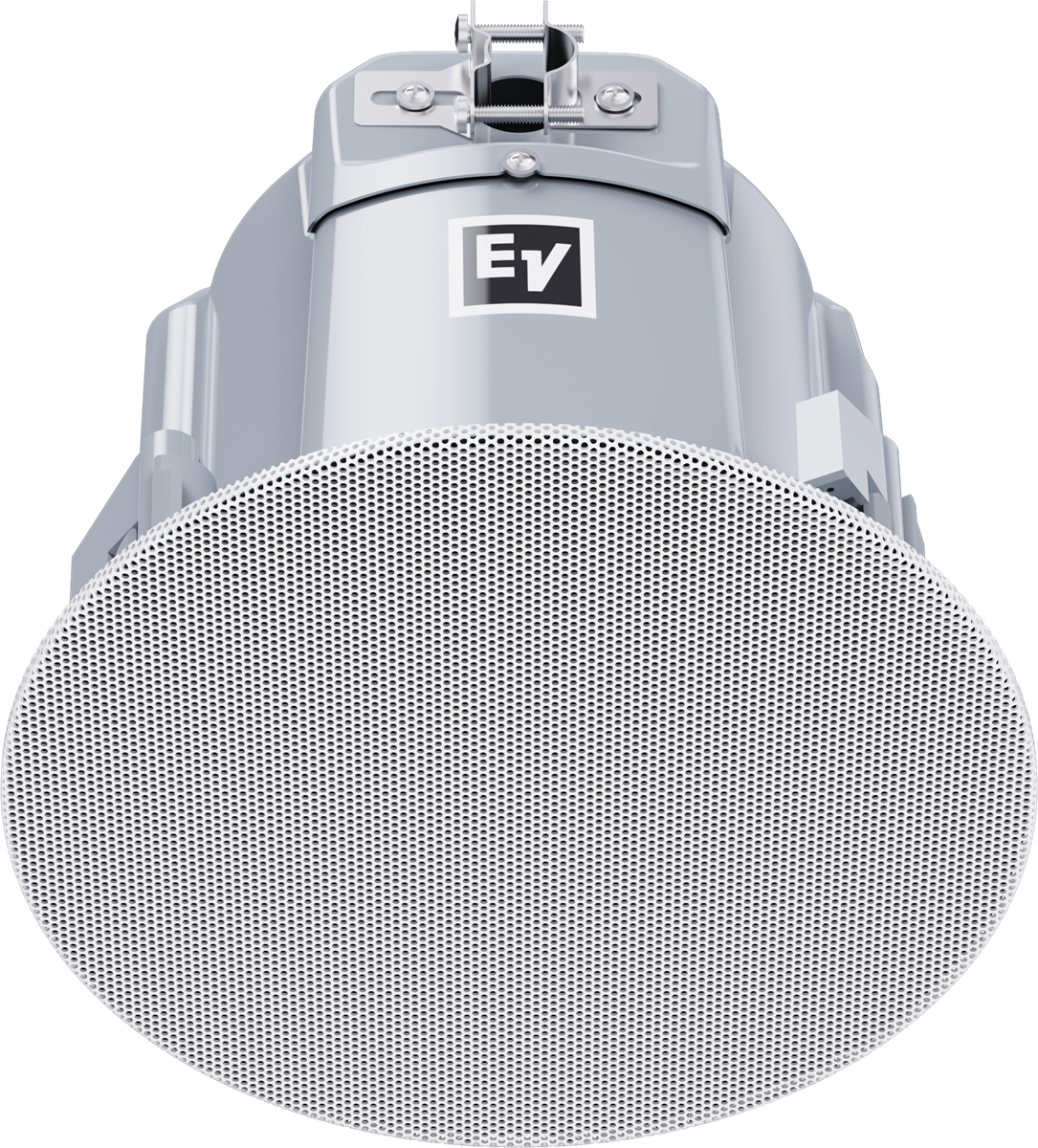

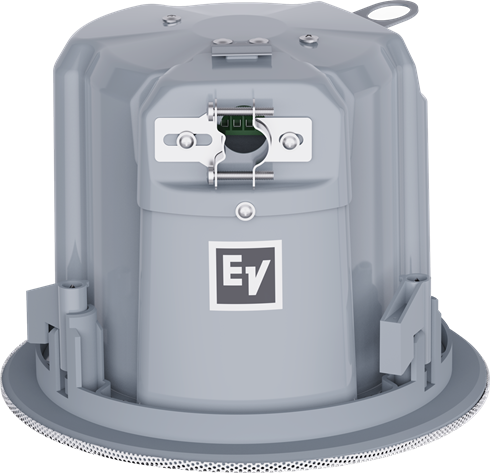

Electro-Voice EVID EC4.2

Pasivna dvosistemska 100V zvučna kutija 100V20/10/5/2,5W 8Ω/50W

14.400,00

Dodaj na listu želja

provereni kvalitet

sigurna kupovina

brza isporuka

Frequency range (-10 dB) (Hz) ¹	80 Hz – 2,0000 Hz
Maximum SPL (continuous) (dB) ²	106 dB
Maximum SPL (peak) (dB) ²	112 dB
Sensitivity (1 W, 1 m) ³	89 dB SPL 1 W, 1 m
Coverage angle conical (°)	130°
Power handling (continuous) (W) ⁴	50 W
Power handling (peak) (W) ⁴	200 W
Long term power handling (continuous) (W) ⁵	40 W
Long term power handling (peak) (W) ⁵	160 W
Nominal impedance (Ω) (Low Z)	8 Ω

Recommended high pass (Hz) ⁶	90 Hz
Transformer taps 70 V line (W)	20 W; 10 W; 5 W; 2.5 W; 1.25 W
Transformer taps 100 V line (W)	20 W; 10 W; 5 W; 2.5 W
LF transducer size (in)	4 in
HF transducer size (in)	0.75 in
Material	Steel

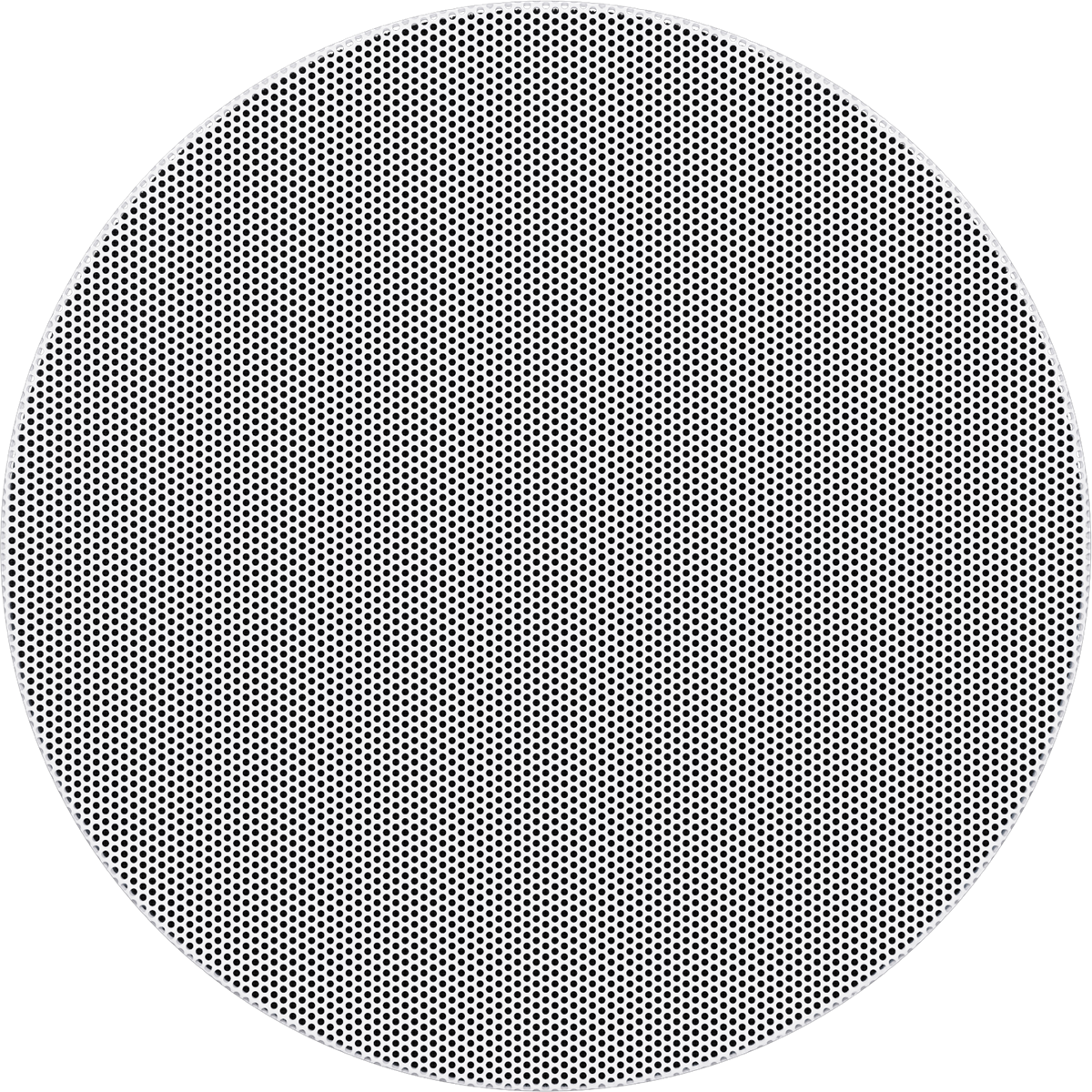

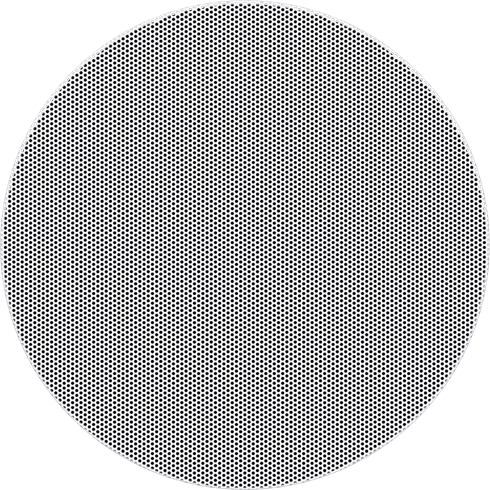

Grille material	Powder coated steel

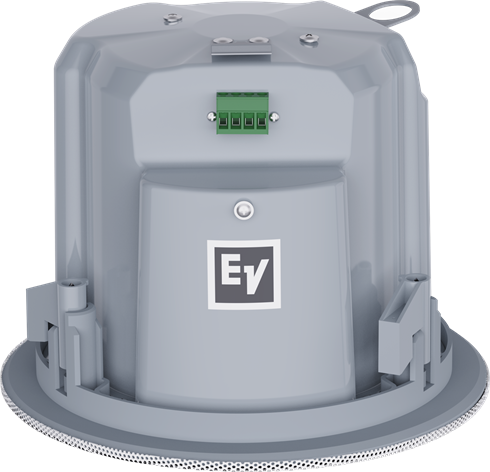

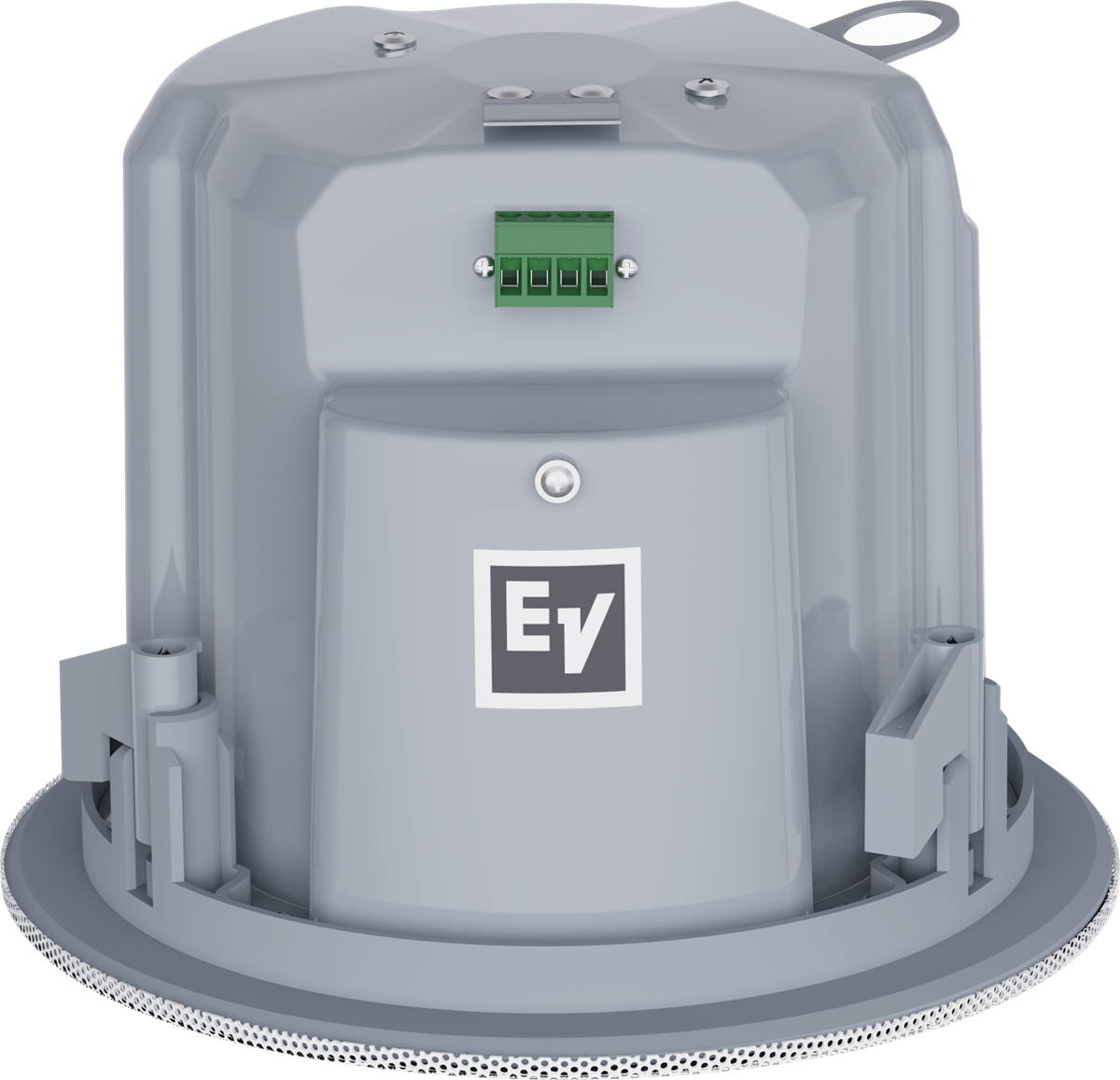

Connector type	4-pin Euroblock Input + Pass through
Wire size (AWG)	12AWG (maximum)
Wire diameter (mm2)	3.3 mm2 (maximum)
Color	White; Customized colors
Color (RAL)	RAL 9003 Signal white
Mounting cutout (in)	7.20 in
Mounting cutout (mm)	183 mm
Dimensions (Ø x D) (in)	8.4 in x 6.5 in
Dimensions (Ø x D) (mm)	212 mm x 163.4 mm
Mounting depth (in)	6.2 in
Mounting depth (mm)	158 mm
Ceiling thickness (in)	0.5 in - 1.5 in
Ceiling thickness (mm)	12.5 mm - 38 mm
Weight (lb) ⁷	5.7 lb
Weight (kg) ⁷	2.6 kg
Shipping weight (lb) ⁸	15.4 lb
Shipping weight (kg) ⁸	7 kg
IP rating	IP34
Weatherization	Indoor
Operating temperature (°F)	32 °F – 122 °F
Operating temperature (°C)	0 °C – 50 °C
