Condenser overhead & instrument microphone
- Small diaphragm condenser
- Voiced for drum overheads, hi-hat, and acoustic stringed instruments
- Tight-mesh Memraflex grille
- Tight cardioid polar pattern

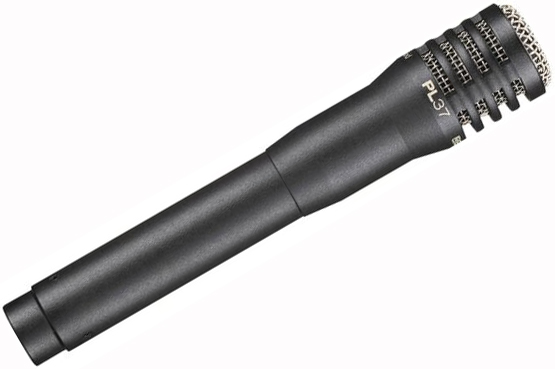

The PL37 is a tight-cardioid condenser microphone designed to capture all the crisp detail of cymbals, high-hats and percussion instruments on stage or in the studio. The PL37 delivers the dialed-in tone and detailed response to percussive transients that professional drummers and sound system engineers require.
|
Weight Net
|
6.21oz (176g)
|
|
Connector Type
|
3-pin XLR
|
|
Maximum SPL (1% THD)
|
132dB
|
|
|
|
Impedance, Low-Z balanced
|
200Ω
|
|
Open Circuit Voltage
|
6mV/Pascal
|
|
Case Material
|
Die cast zinc
|
|
Finish
|
Textured Satin Black
|
|
Power Requirement
|
11 to 52 VDC
|
|
Audio Frequency Response
|
50 Hz - 16,000 Hz
|
|
Dynamic Range
|
107dB
|
|
Family
|
PL Series
|
|
Polar Pattern
|
Cardioid
|
|
Wired/Wireless
|
Wired
|
|
Mic Type
|
Instrument
|
|
Element
|
Condenser (self-biased)
|
