Electro-Voice ZX1-Sub

Pasivan subwoofer 12" 400W

74.400,00

Specifikacije proizvoda:

  • Serija:
    • Zx
  • Frekventni odziv (-3dB):
    • 53 - 125 Hz
  • Frekventni opseg (-10dB):
    • 42 - 200 Hz
  • Boja:
    • crna
  • Osetljivost:
    • 94 dB
  • Maksimalni SPL:
    • 127 dB
  • Kontinuirana snaga :
    • 40W
  • Vršna (peak) snaga :
    • 1600 W
  • Niskotonac (bas):
    • 12"
  • Impedansa (oma):
    • 8 oma
  • Tip konektora:
    • NL4
  • Materijal:
    • Drvo - šperploča
  • Dimenzije Š x V x D:
    • 444,5 x 400 x 457,2 mm
  • Težina:
    • 19,8 kg

Opis proizvoda:

Pasivni 12" subwoofer koji pruza izanredne performanse,idealan za mobilne i fiksne aplikacije,krojen za upotrebu sa Zx1,Evid i EVU serijom zvučnih kutija.

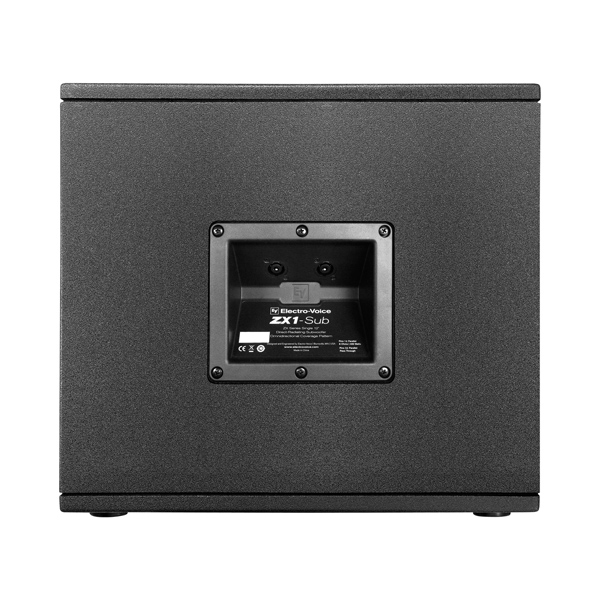

A range of features make the ZX1-Sub a standout choice in its class. Its EV-engineered 12” EVS-12S woofer operates in the 42 Hz to 200 Hz (-10 dB) frequency range and boasts a frequency response of 53 Hz – 125 Hz (-3 dB). The nominal impedance of the subwoofer is 8 ohms and its maximum sound pressure level is 127 dB. A robust,15-mm-thick internally braced wooden enclosure with two side handles, a structured coating and a sturdy steel grille ensure both reliable performance and rugged durability in day-to-day use. The ZX1-Sub’s two recessed NL4 type connectors (2) are wired in parallel, permitting the input signal to be looped through and making it possible to operate full-range loudspeakers such as the ZX1 together with the ZX1-Sub using a single amplifi er channel. With its compact dimensions (40 x 44 x 46 cm), the latest member of the ZX series weighs-in a just under 20 kilos.

Freq. Response (-3dB): 53Hz – 125 Hz

Freq. Range (-10dB): 42 Hz – 200Hz

Sensitivity: 94 dB

Max. Measured SPL: 127 dB

Coverage: Omnidirectional

Power Handling: 400W

LF Transducer: EVS-12S

Nominal Impedance: 8 Ω

Connectors: NL4 (2) Type

Dimensions: 400mm x 444.5mm x 457.2 mm

Net Weight: 19.8 Kg
