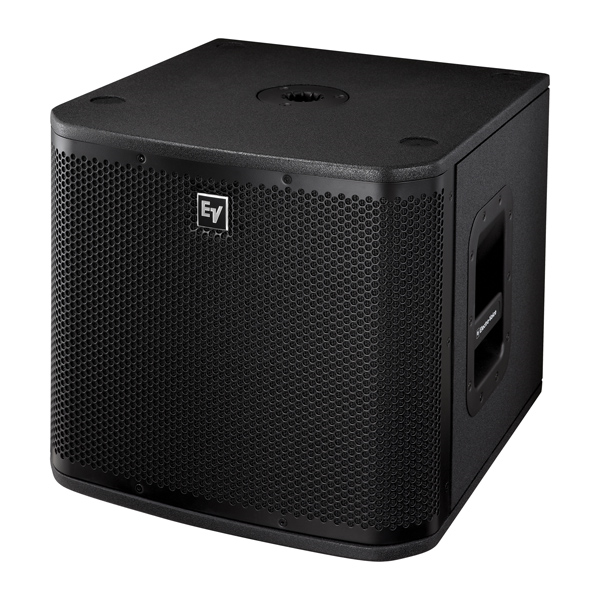

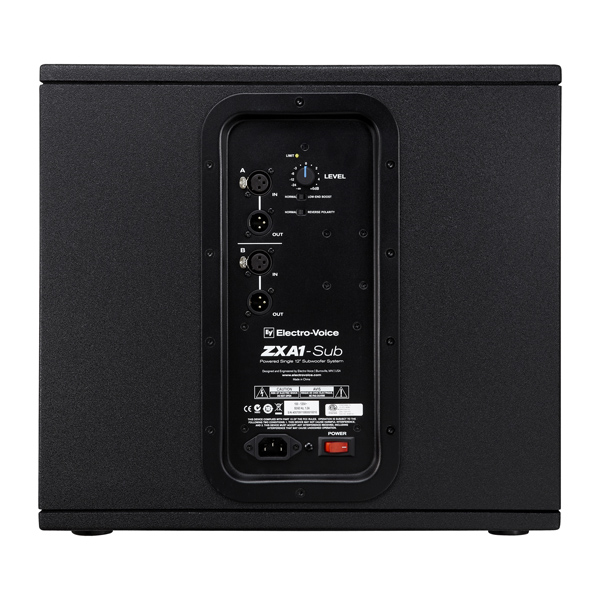

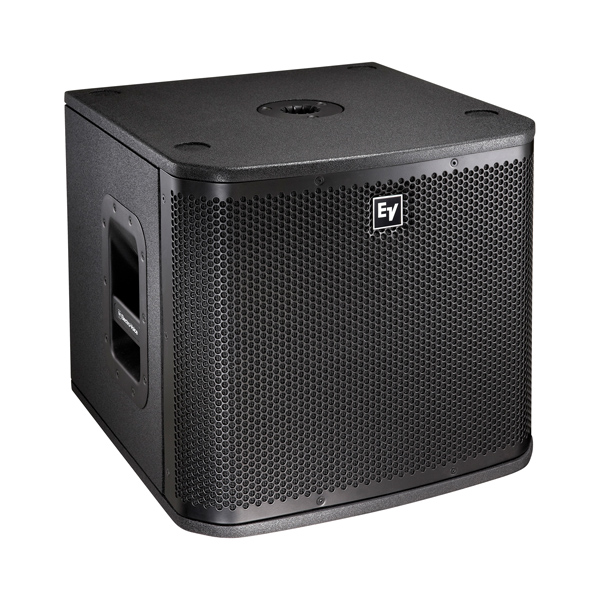

Extending the ZXA1’s size-defying performance and sleek styling into the low-end realm, the ZXA1-Sub packs 700 W of self-powered punch into a low-profile wood enclosure. Match ZXA1 with ZXA1-Sub and hear just how big a small rig can sound, whether you want to add a tight thump to a DJ set or give the highs and mids some breathing room in a live performance.
Amplifier Power: 800 Watts (RMS)
Color: Black
Power Requirement: 120V: 90V–132V, 1.0A3, 50–60Hz 230V: 190V–264V, 0.6A3, 50–60Hz
Speaker Type: Subwoofer
Frequency Response (-3 dB): 53Hz–93 Hz
Frequency Response (-10 dB): 44Hz–118 Hz
Max. SPL/1m (calc); half space: 126 dB
LF Transducer: (1) EVS-12S, 305mm (12”) Woofer
Crossover Frequency: 100 Hz
Enclosure Material: 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
Height: 400 mm
Width: 444.5 mm
Depth: 457.2 mm
Weight Net: 20.9 kg
