Electro-Voice ZLX 12

• Serija:
  • ZLX
• Frekventni odziv (-3dB):
  • 82 - 18K Hz
• Frekventni opseg (-10dB):
  • 55 -20K Hz
• Boja:
  • crna
• Osetljivost:
  • 95 dB
• Maksimalni SPL:
  • 125 dB
• Pokrivanje H° x V°:
  • 90° x 60°
• Kontinuirana snaga :
  • 250 W
• Vršna (peak) snaga :
  • 1000 W
• Visokotonac:
  • DH-1K
• Niskotonac (bas):
  • 12"
• Impedansa (oma):
  • 8 oma
• Tip konektora:
  • NL4
• Materijal:
  • Polipropilen (plastika)
• Dimenzije Š x V x D:
  • 356 x 610 x 356 mm
• Težina:
  • 14,9 kg

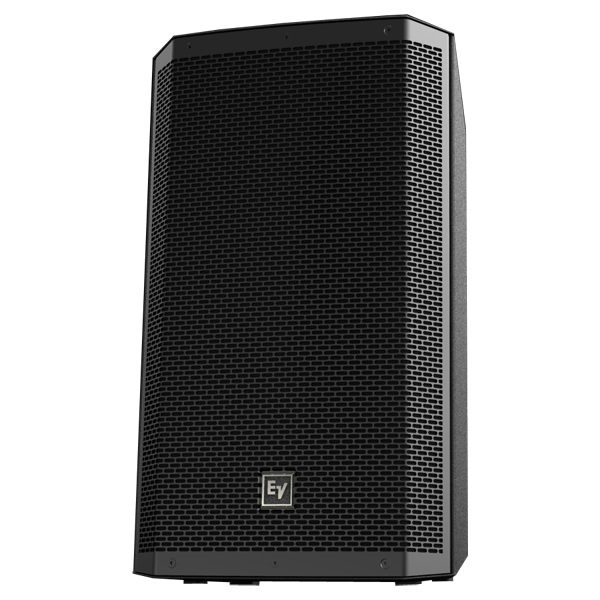

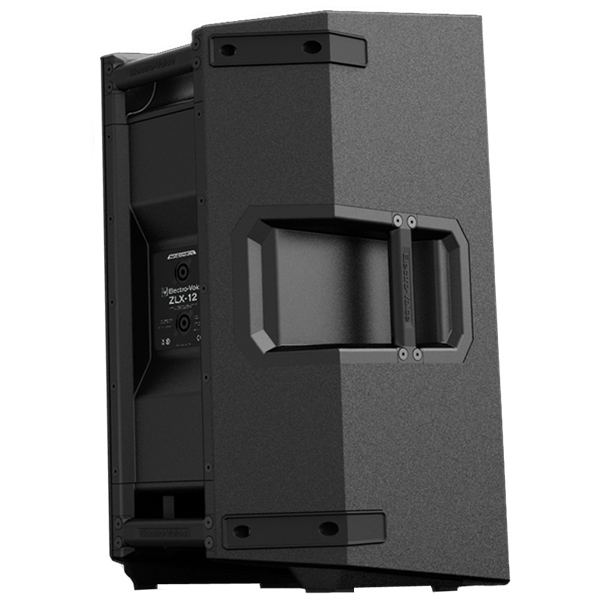

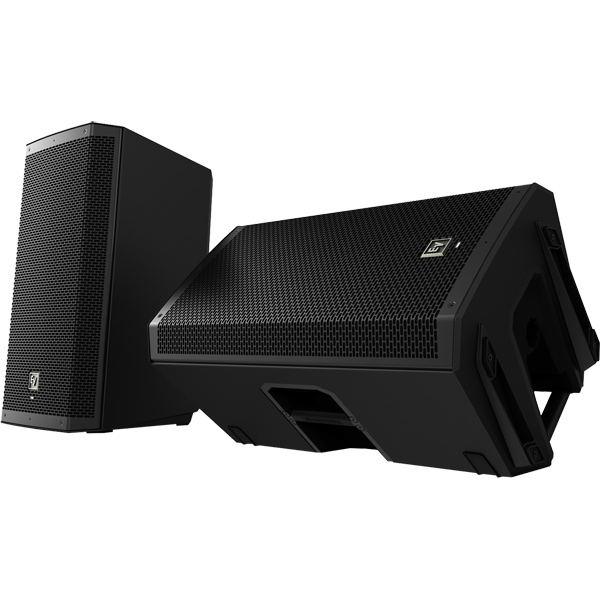

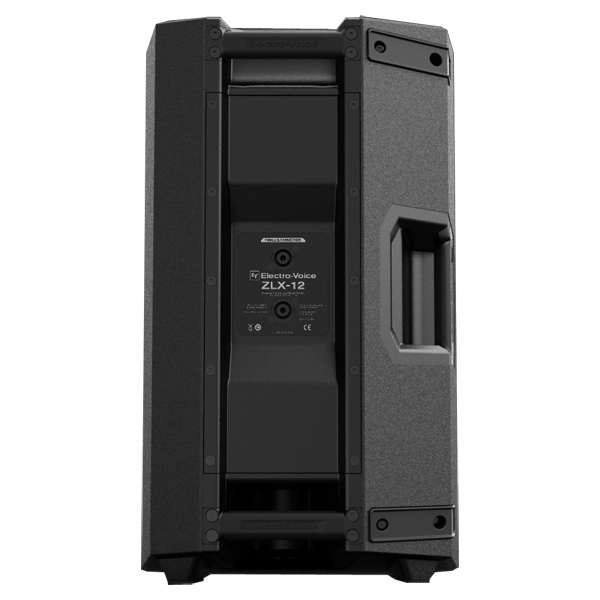

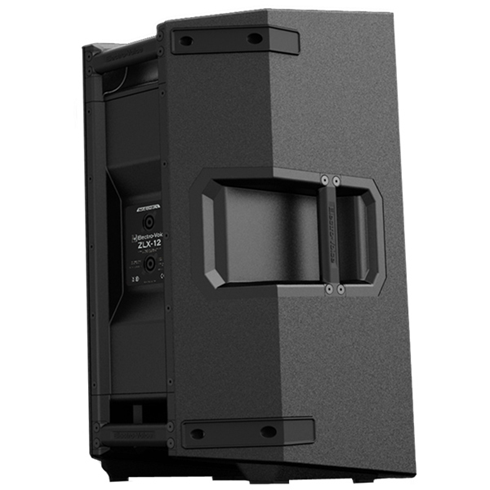

Electro-Voice ZLX 12 - Pasivna zvučna kutija

Freq. Response: 82 Hz – 18 kHz

Freq. Range: 55 Hz – 20 kHz

Axial Sensitivity: 95 dB

Max. Measured SPL: 125 dB

Coverage H° x V°: 90° x 60°

Recommended HP Freq.: 40 Hz

Power Handling: 250 Watts Continuous, 1000 Watts Peak

LF Transducer: EVS-12K, 300 mm (12 in) Woofer

HF Transducer: DH-1K, 39mm (1.5”) Titanium

Cross-over Frequency: 2.1 kHz

Nominal Impedance: 8 Ω

Minimum Impedance: 7 Ω

Connector Type: Dual NL4

Enclosure material: Polypropylene

Grill: 18 Gauge Steel with Black Powder Coat

Dimensions (H x W x D): 610 mm x 356 mm x 356 mm

Weight Net: 14.9 kg
