Kod proizvoda:648

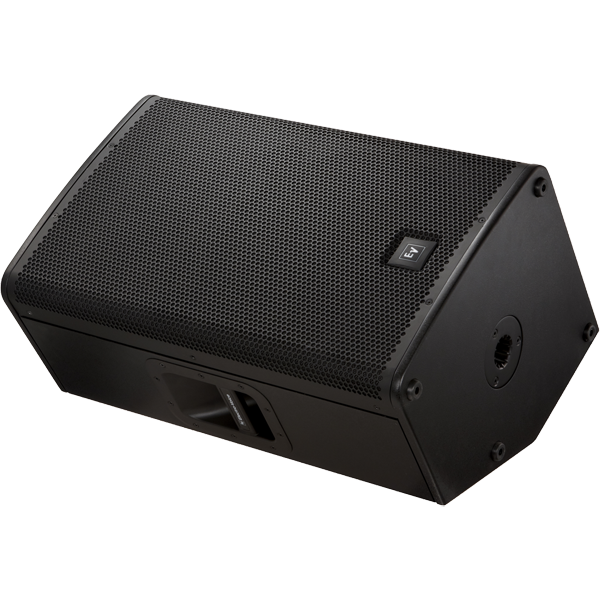

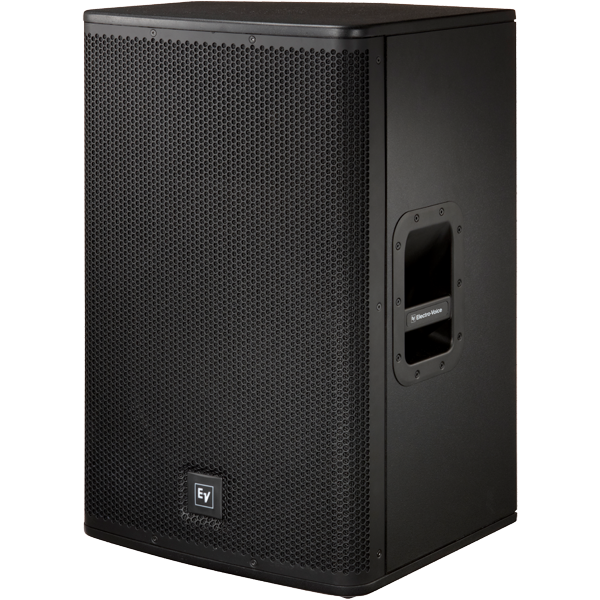

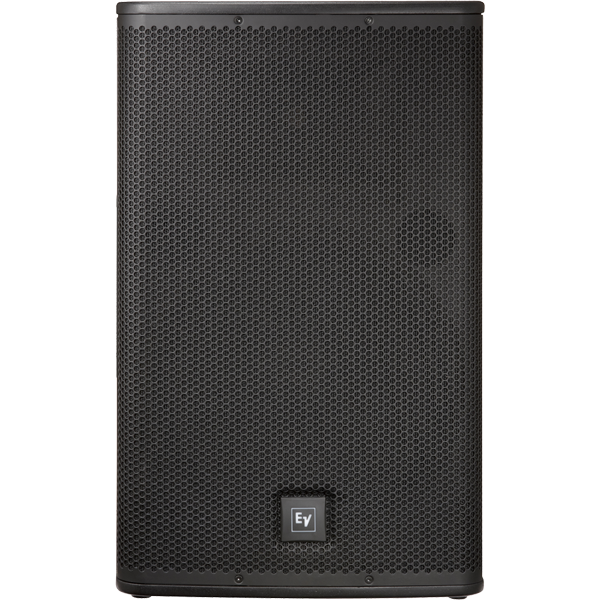

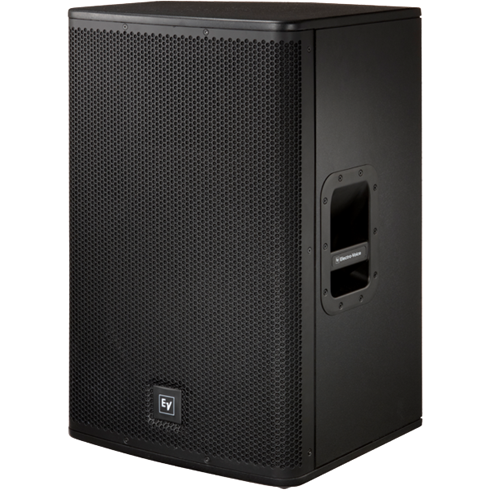

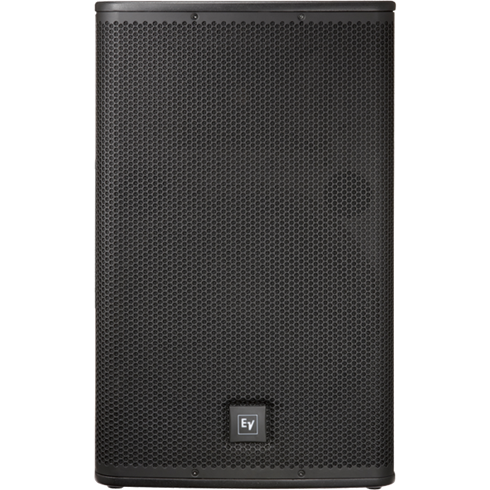

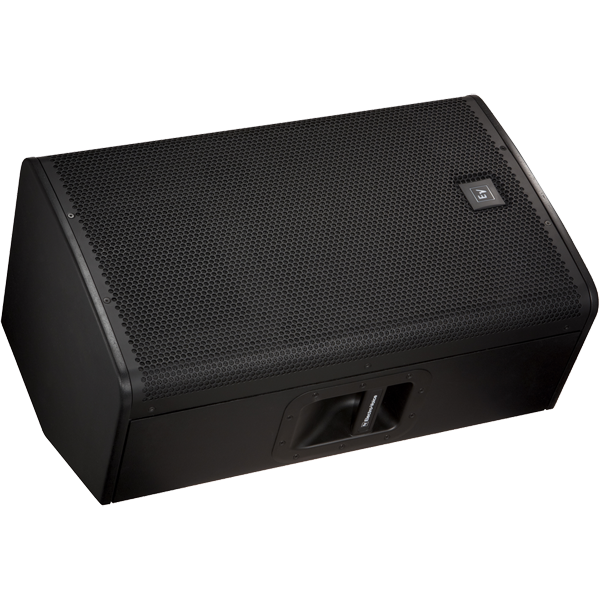

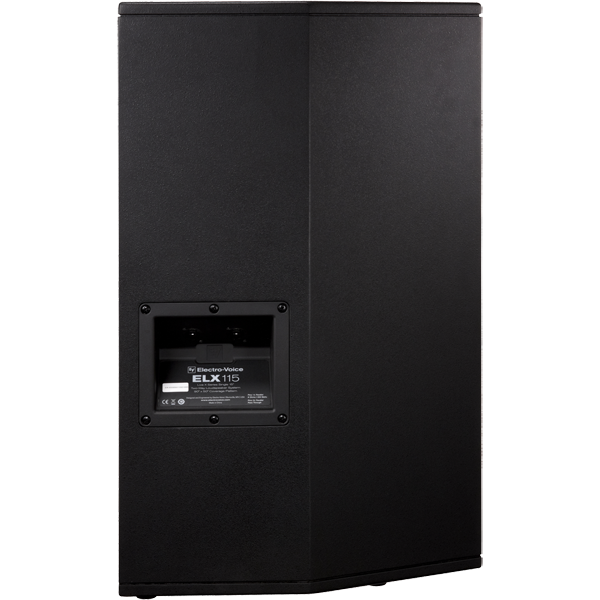

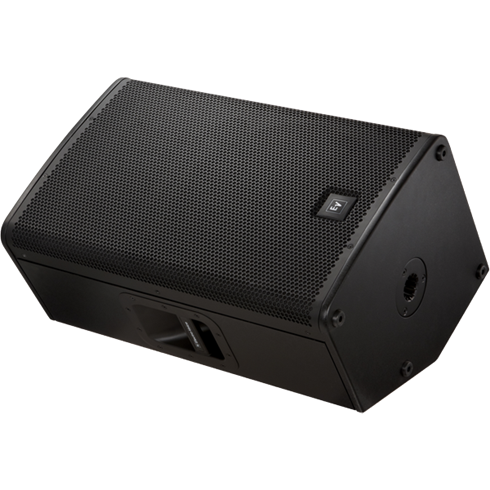

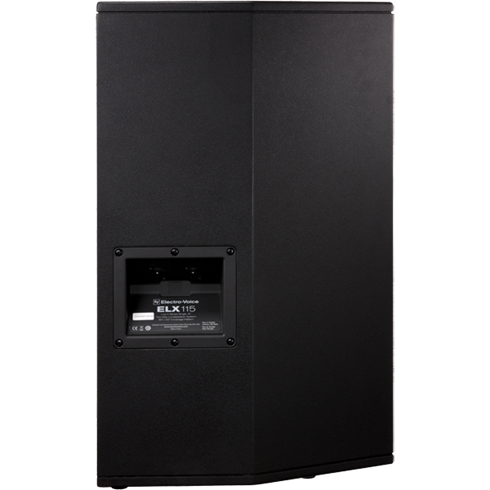

Electro-Voice ELX 115

Pasivna dvosistemska zvučna kutija 15" 400W

70.800,00

Specifikacije proizvoda:

  • Serija:
    • Live X
  • Frekventni odziv (-3dB):
    • 75 - 18K Hz
  • Frekventni opseg (-10dB):
    • 50 - 20K Hz
  • Boja:
    • crna
  • Osetljivost:
    • 95 dB
  • Maksimalni SPL:
    • 134 dB
  • Pokrivanje H° x V°:
    • 90° x 50°
  • Kontinuirana snaga :
    • 400 W
  • Vršna (peak) snaga :
    • 1600 W
  • Visokotonac:
    • DH-1K
  • Niskotonac (bas):
    • 15"
  • Impedansa (oma):
    • 8 oma
  • Tip konektora:
    • NL4
  • Materijal:
    • Drvo - šperploča
  • Dimenzije Š x V x D:
    • 432 x 708 x 382 mm
  • Težina:
    • 23 kg

Opis proizvoda:

A powerful step up from the ELX112, the ELX115 features a 15” woofer that delivers extended low-frequency response for bigger sound in larger rooms.

Axial Sensitivity: 95 dB

Case Material: 9-ply, 15mm Plywood, Internally Braced, with Texured Paint

Frequency Response (-3 dB): 75 Hz - 18 k Hz

Frequency Response (-10 dB): 50 Hz - 20 k Hz

System Power Handling (continuous/program/peak):400/800/1600 Watts

Recommended High-Pass Frequency: 40 Hz

Max. SPL/1m (calc): 134 dB

Coverage (Nominal -6 dB) H°: 90 °

Coverage (Nominal -6 dB) V°: 50 °

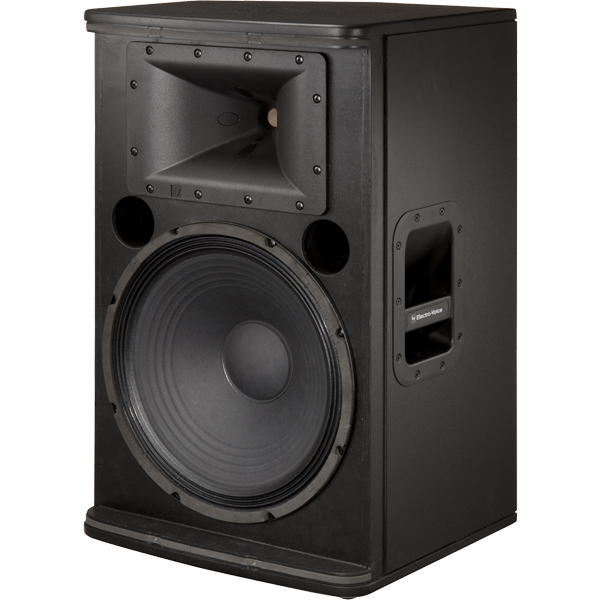

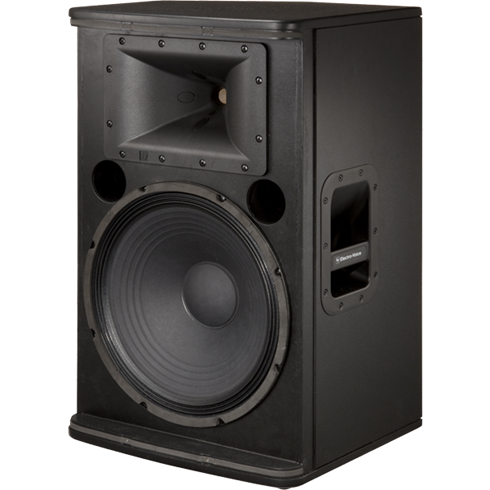

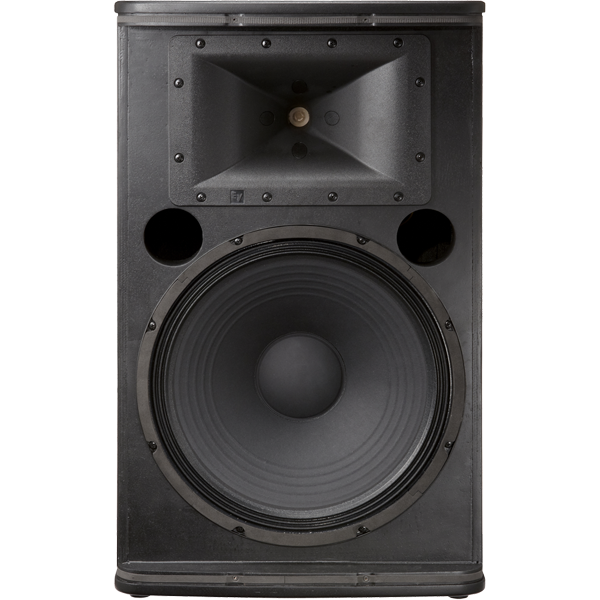

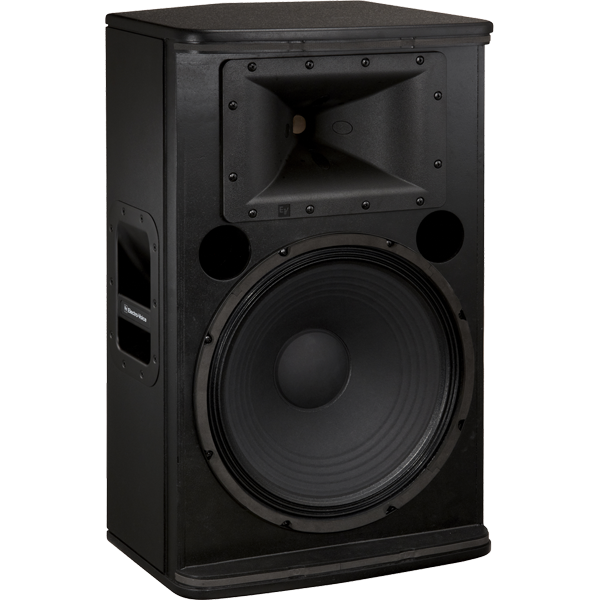

LF Transducer: (1) EVS-15K, 381mm (15”) Woofer

HF Transducer: DH-1K, 39mm (1.5”) Titanium Diaphragm Compression Driver

Crossover Frequency: 1.7 k Hz

Nominal Impedance (Passive): 8 Ω

Minimum Impedance: 7.4 Ω

Connector Type: Dual NL4

Grill: 18GA Steel with Black Powdercoat

Height: 708 mm (27.87")

Width: 432 mm (17.01")

Depth: 382 mm (15.04")

Weight Net: 23 kg
