Kod proizvoda:649

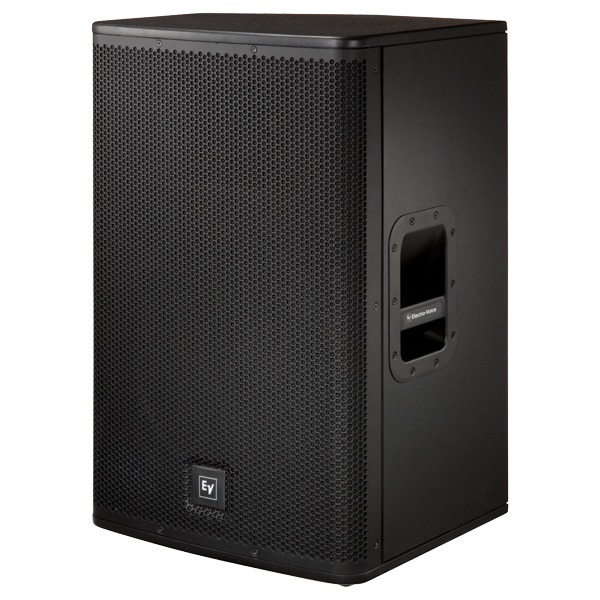

Electro-Voice ELX 115P

Aktivna dvosistemska zvučna kutija 15"

115.200,00

Dostupnost proizvoda: Ima na lageru

Specifikacije proizvoda:

  • Serija:
    • Live X
  • Frekventni odziv (-3dB):
    • 56 - 18K Hz
  • Frekventni opseg (-10dB):
    • 44 – 20K Hz
  • Snaga pojačala:
    • 1000 W
  • Boja:
    • crna
  • Maksimalni SPL:
    • 134 dB
  • Pokrivanje H° x V°:
    • 90° x 50°
  • Visokotonac:
    • DH-1K 1-inch titanium
  • Niskotonac (bas):
    • 15"
  • Materijal:
    • Drvo - šperploča
  • Dimenzije Š x V x D:
    • 432 x 708 x 382mm
  • Težina:
    • 22,5 kg

Opis proizvoda:

Snažan korak napred u odnosu na ELX 112P, 15" bas zvučnik i 1000-W integrisano pojačalo u ELX 115P pruza više niskih frekvencija.

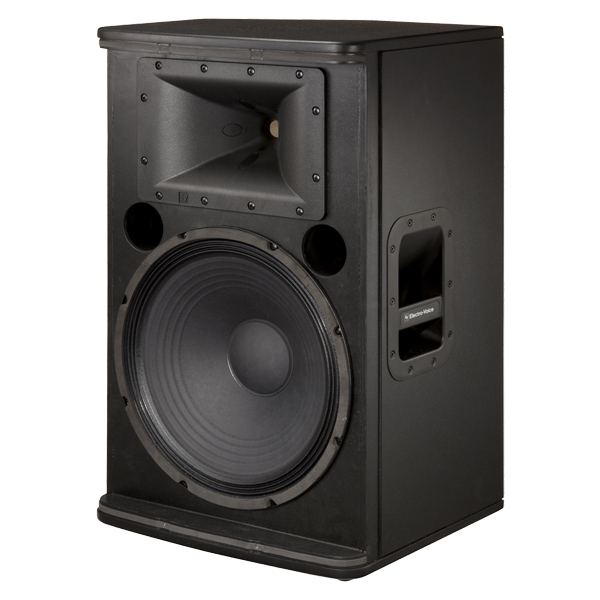

Designed for Pro Music, and other applications. 15” woofer and 1.5” high-frequency titanium compression driver 44 Hz – 20 kHz frequency range; 134 dB max SPL 1000 W Class D lightweight amplifier — runs cool without fans Easy to connect and control with versatile input and output options Rugged wood cabinet — pole mounts or stacks with Live X Subwoofers





Case Material: 9-ply, 15mm Plywood, Internally Braced, with Texured Paint

Frequency Response (-3 dB): 56 Hz - 18 k Hz

Frequency Response (-10 dB): 44 Hz - 20 k Hz

Max. SPL/1m (calc): 134 dB

Power Rating: 1000 W

Coverage (Nominal -6 dB) H°: 90 °

Coverage (Nominal -6 dB) V°: 50 °

LF Transducer: (1) EVS-15K, 381mm (15”) Woofer

HF Transducer: DH-1K, 39mm (1.5”) Titanium Diaphragm Compression Driver

Crossover Frequency: 1.7 k Hz

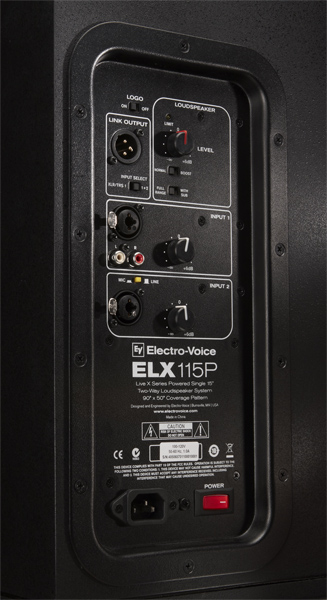

Connector Type: (2) XLR/TRS Combo Jacks, (1) Stereo RCA, (1) XLR Link Output

Grill: 18GA Steel with Black Powdercoat

Height: 708 mm (27.87")

Width: 432 mm (17.01")

Depth: 382 mm (15.04")

Weight Net: 24.3 kg
