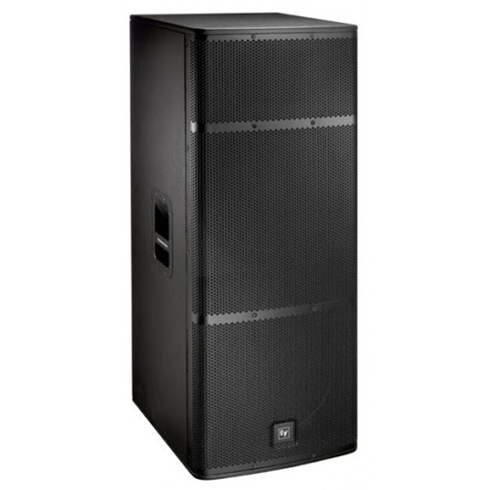

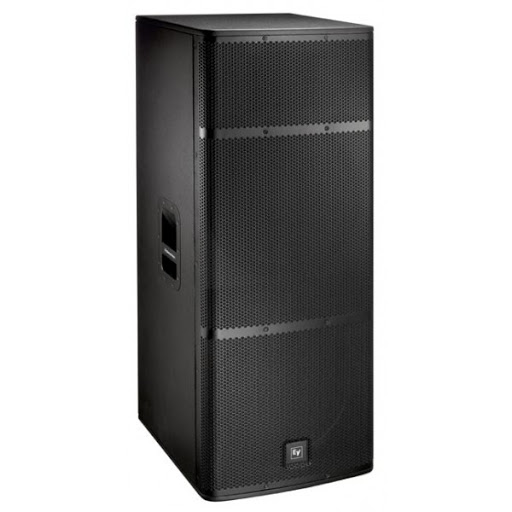

Electro-Voice ELX 215

• Serija:
  • Live X
• Frekventni odziv (-3dB):
  • 62 - 18K Hz
• Frekventni opseg (-10dB):
  • 38 – 20K Hz
• Boja:
  • crna
• Osetljivost:
  • 96 dB
• Maksimalni SPL:
  • 137 dB
• Pokrivanje H° x V°:
  • 90° x 50°
• Kontinuirana snaga :
  • 600 W
• Vršna (peak) snaga :
  • 2400 W
• Visokotonac:
  • DH-1K
• Niskotonac (bas):
  • 15"
• Impedansa (oma):
  • 4 oma
• Tip konektora:
  • NL4
• Materijal:
  • Drvo - šperploča
• Dimenzije Š x V x D:
  • 1154 x 432 x 501mm
• Težina:
  • 40,7 kg

This twin woofer configuration delivers real low-end punch — ideal for applications that demand high-volume output and an ultra-wide frequency response from a single cabinet.

Axial Sensitivity: 96 dB

Case Material: 9-ply, 15mm Plywood, Internally Braced, with Texured Paint

Frequency Response (-3 dB): 62 Hz - 18 k Hz

Frequency Response (-10 dB): 38 Hz - 20 k Hz

System Power Handling (continuous/program/peak):600/1200/2400 Watts

Recommended High-Pass Frequency: 35 Hz

Max. SPL/1m (calc): 137 dB

Coverage (Nominal -6 dB) H°: 90 °

Coverage (Nominal -6 dB) V°: 50 °

LF Transducer: (2) EVS-15K, 381mm (15”) Woofers

HF Transducer: DH-1K, 39mm (1.5”) Titanium Diaphragm Compression Driver

Crossover Frequency: 1.7 k Hz

Nominal Impedance (Passive): 4 Ω

Minimum Impedance: 3.7 Ω

Connector Type: Dual NL4

Grill: 18GA Steel with Black Powdercoat

Height: 1154 mm (45.43")

Width: 432 mm (17.01")

Depth: 501 mm (19.72")

Weight Net: 44.1 kg
