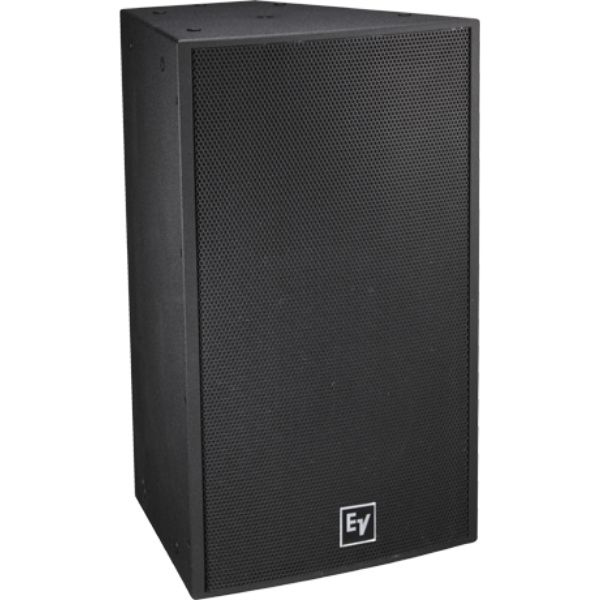

Electro-Voice EVF 1122D / PIB

Pasivna IP55 dvosistemska zvučna kutija 12" 600W opremljena sa - DVX3121A, 12" woofer i DH7N, 3" visokotonac

Pozovite za cenu

Specifikacije proizvoda:

  • Serija:
    • EVF
  • Frekventni odziv (-3dB):
    • 57 - 18K Hz
  • Frekventni opseg (-10dB):
    • 49 – 21K Hz
  • Boja:
    • crna
  • Osetljivost:
    • 97 dB
  • Maksimalni SPL:
    • 131 dB
  • Pokrivanje H° x V°:
    • rotabilna
  • Kontinuirana snaga :
    • 600 W
  • Vršna (peak) snaga :
    • 2400 W
  • Visokotonac:
    • DH7N-3 inch
  • Niskotonac (bas):
    • 12"
  • Impedansa (oma):
    • 8 oma
  • Materijal:
    • Drvo - šperploča
  • IP Zaštita:
    • IP55
  • Dimenzije Š x V x D:
    • 406,3 x 768,6 x 423,3 mm
  • Težina:
    • 29,7 kg

Opis proizvoda:

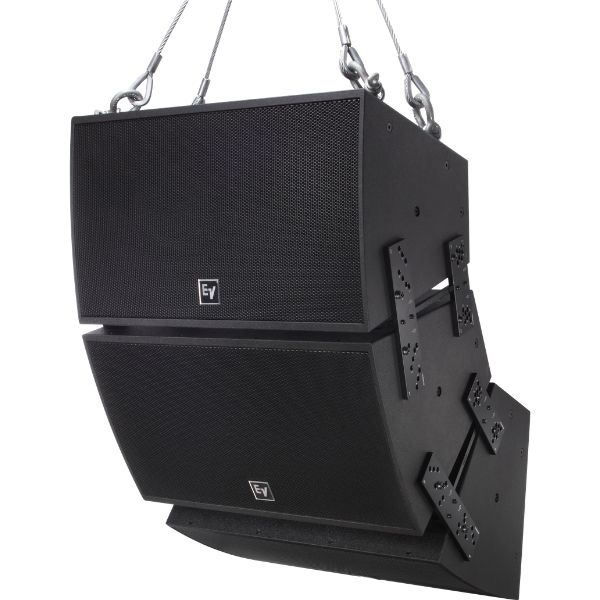

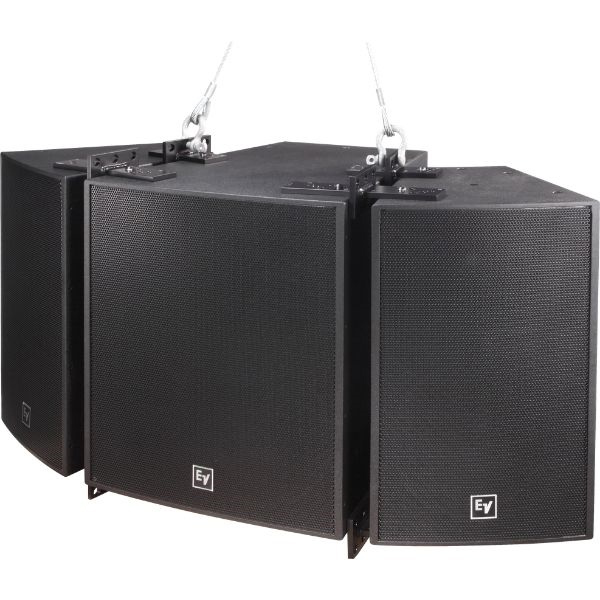

Every EVF trapezoidal enclosure is constructed out of weather-resistant birch, and coated with EVCoat™ for maximum protection from the elements. EVF’s unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF & EVH Series. With an assortment of full-range, low-frequency, and subwoofer loudspeakers, the EVF Series provides the tools to maximize the flexibility of system design, no matter what the application and budget.



EVF’s innovative input panels provide the choice of Phoenix-type connectors (included in all standard models), or allow the easy addition of a dual NL4-type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper also selects passive or active operation, and an available 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. All features provide the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements.



Available Coverage Patterns (Nominal -6 dB) HxV 60x40, 60x60, 90x40, 90x60, 90x90, 120x60 °
Environmental Specs Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55
Input Connections Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover
Internal Passive Crossover Frequency 1300 Hz
Frequency Response (-3 dB) 57 - 18000 Hz
Frequency Response (-10 dB) 49 - 21000 Hz
Recommended High-Pass Frequency 65 Hz
Sensitivity 1 W/1 m 97 dB
Max. SPL/1m (calc) 131 dB
System Power Handling (Continuous/Program/Peak) 600, 1200, 2400 Watts
LF Transducer DVX3121A 12-inch (305 mm) woofer
HF Transducer DH7N 3-inch (76 mm) diaphragm compression driver
Nominal Impedance (Passive) 8 Ω
Minimum Impedance 6 Ω
Enclosure Material 13-ply weather-resistant birch
Grill Standard versions: 16-ga Galvanneal, Powdercoat, with screen behind PI and FG versions: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind
Suspension (22) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included)
